TVSE LP-46 DLITE Plus Barcode Label Printer

TVSE LP-46 DLITE Plus Barcode Label Printer

Regular price Rs. 10,832.40
Regular price Rs. 22,995.00 Sale price Rs. 10,832.40
Sale Sold out
Quantity

TVSE LP-46 DLITE Plus Barcode Label Printer

LP 46 Plus Desktop Label Printers combine performance with reliability and offers High-Resolution labels. These are appropriate for Manufacturing and Warehousing, Healthcare, Small offices, and Logistics.

ADVANTAGES:
High Memory capacity of 128 MB Flash and 64 MB SDRAM
Supports multiple interfaces
Supports both 0.5″ and 1″ Ribbon core

Click here Official Link of TVSE LP-46 DLITE Plus Barcode Label Printer



Product Specification Details
Resolution 8 dots/mm 203 DPI
Printing Method Thermal Transfer & Direct Thermal
Max. Print width 108 mm 4.25“
Max. Print Speed 152.4 mm 6”/second
Max. Print length 2,794 mm 110“
Physical dimension 204 mm W x 164 mm H x 280 mm D
Weight 2.4 kg 5.29 lbs
Label roll capacity 127 mm 5“ OD
Ribbon 300 m long, max. OD 67 mm, 1” core ink coated outside
Ribbon Width 40 mm ~ 110 mm 1.6” ~ 4.3”
Processor 32bit RISC CPU
Memory 128 MB Flash memory, 64 MB SDRAM

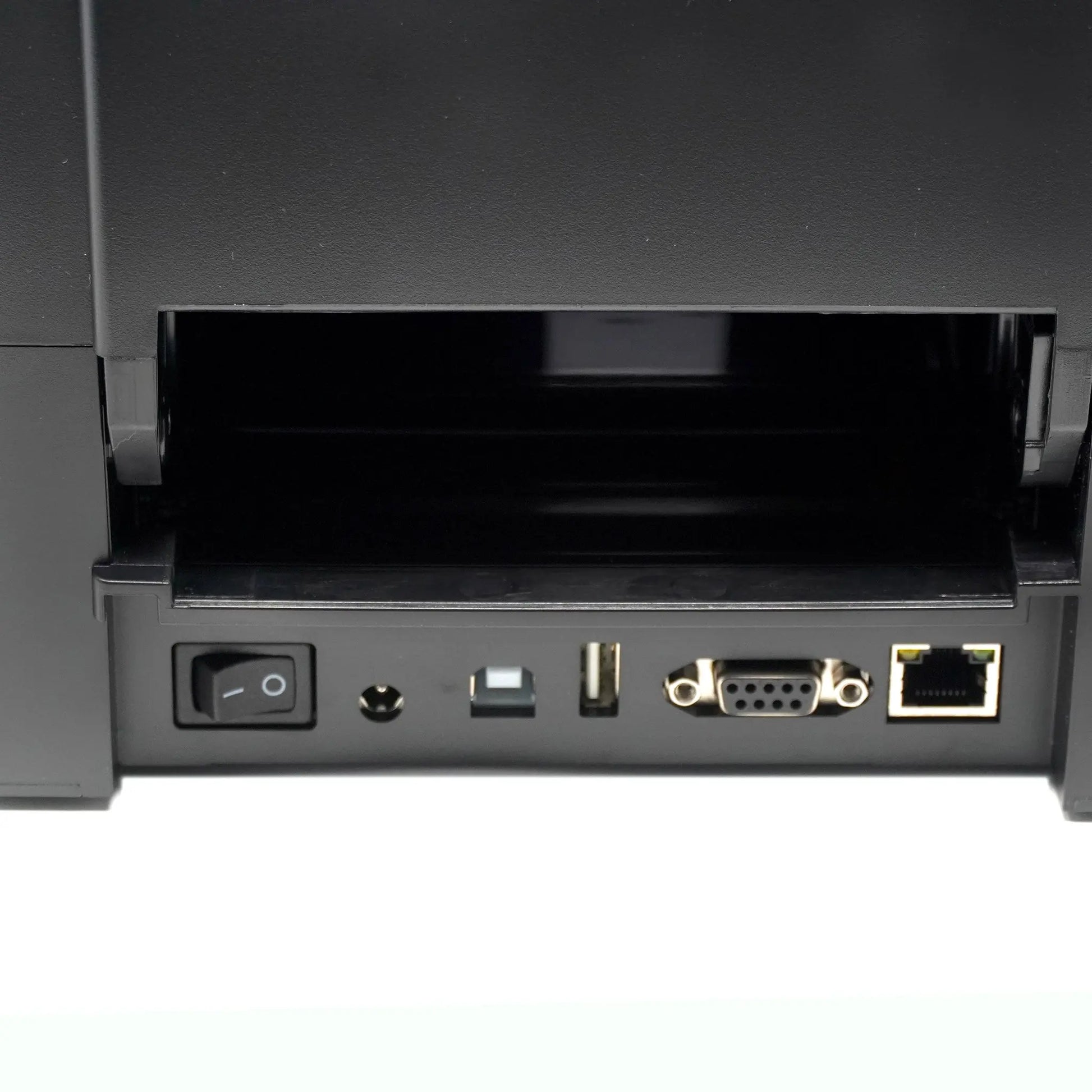

Interface USB, Serial and Ethernet
Power Input: AC 100240V, 2.5A, 5060Hz, Output: DC 24V, 2.5A, 60W
Sensors Transmissive gap sensor, Black mark reflective sensor position adjustable
Barcode
  • 1D bar code

Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit,Code 39, Code 39 with check digit, Code 93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 5 digits addon,Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code 11, TELEPEN, TELEPENN,PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS

  • 2D bar code

GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417

Printer Language TSPLEZD Compatible to EPL, ZPL, ZPL II, DPL
Media type Continuous, diecut, black mark, fanfold, notched outside wound
Media width 20 ~ 112 mm 0.8“ ~ 4.4“
Media thickness 0.06 ~ 0.19 mm 2.36 ~ 7.48 mil
Media core diameter 25.4 ~ 38 mm 1” ~ 1.5”
Label Length 5-25, 400mm
Environment Condition

Operation: 5°C ~ 40°C, 25 ~ 85% noncondensing

Storage: ~40°C ~ 60°C, 10 ~ 90% noncondensing
