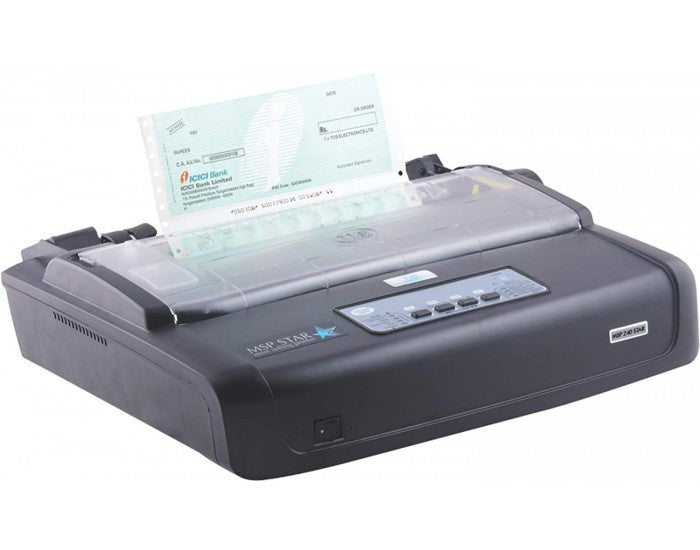

TVS Dot Matrix Printer MSP240 STAR

MSP 240 STAR is an ideal 80 column printer for printing receipts, invoices, and bills. Its wide input operating voltage makes it more suitable for user conditions which are challenged by power fluctuations. Patented Ink Bank Ribbon provides low running costs.
ADVANTAGES

Made in India, with an in-house crafted 9-wire print head for superior print-and-copy capability.

Lower total cost of ownership by using patented Ink bank ribbon, resulting in a 40 million character life

Designed to function even in severely fluctuating power conditions ranging between 90VAC and 270VAC.

Through its self-diagnostic tool, iSense, the printer identifies errors and displays it in the front panel, leading to faster problem resolution

Pan-India best-in-class service support availability

SPECIFICATIONS

Print Method

Serial Impact Dot Matrix

Print Direction

Bi directional Logic seeking

Print Head

Type 9 Wire

Print Width

80 Column

Print Head Life

200 million characters

Print Speed

Character Pitch cpi

10 12 15

High Speed Draftcps

333 – 338

Draft cps

300 250

Near letter quality cps

250 300 375
63 75 75

Resident Printer Fonts

High Speed Draft

Standard 10 and 12 cpi

Draft

Standard 10, 12, 15, 17 and 20 cpi

Near Letter Quality

Roman, Sans Serif, Script

Resident bar code

Code 3 of 9

Paper path standard

Top, Rear and Bottom

ContinuousTractor feed standard

Convertible push & Pull

Continuous form width

3.5 – 10 “

Cut sheets width

3.5 – 10 “

Paper thicknessmax

Tractor feed 0.3mm

Friction feed 0.3mm

Copy capability

1+3 with carbon

Type

Patented TVS ribbon cassette with user

Colour

Jet black

Ribbon Life

40 Million characters with 3 additional inkbanks

Cassette refill mode

Through Inkbank

Ink bank life

10 Million Characters

Input Buffer Kilo bytes

100 KB

Reliability MTBF Power on Hours

10,000 POH

Acoustics Noise level

55 dBA

Emulation

Epson ESC/P, IBM Proprinter

Standard Interface

Centeronics IEEE/P1284A Parallel , USB 2.0

Optional Interface

RS 232C Serial

Operating voltage

90 – 270V AC

Mains frequency

47 – 63 Hz

Power Standby

12W

Temperature

+5 to + 45ºC

Relative Humidity

10% to 80%

Size W x D x Hmm

433 x 379 x 147

Weight

5.7 kg

Warranty

2 Years incl. Print head (only valid on registration)

Best Suited for Printing

Bills | Receipts | Tickets | Coupons | Invoices | Statements

1 kg = 2.2lbs, 1 inch = 2.54 cms

*Max. possible copy capability
**@ Draft 10 cpi
#@ 33% print density and 25% duty cycle Excluding print head @ 33% print density and 25% duty cycle
#. in lieu of USB
