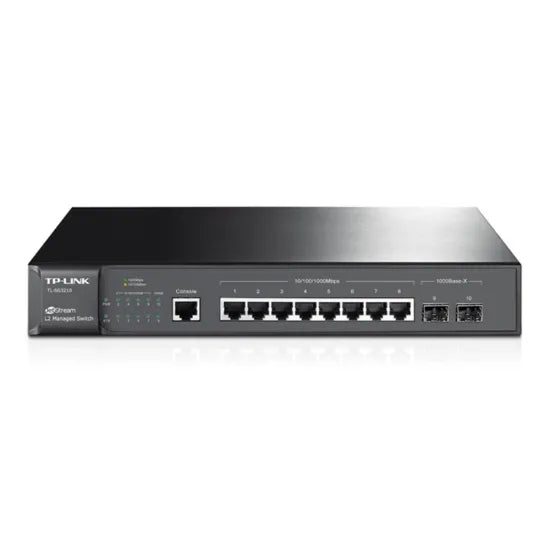

TP-Link TL-SG3210 8 Port Gigabit L2+ Managed Switch With 2 SFP Ports

TP-Link TL-SG3210 8 Port Gigabit L2+ Managed Switch With 2 SFP Ports

Rs. 6,247.50
Rs. 0.00 Rs. 6,247.50
Sale Sold out

TP-Link TL-SG3210 8 Port Gigabit L2+ Managed Switch With 2 SFP Ports

  • 8× Gigabit RJ45 ports and 2× Gigabit SFP slots



  • Centralized cloud management via the web or the Omada app†



  • Standalone management via web, CLI, SNMP, and RMON



  • Static Routing helps route internal traffic for higher efficiency



  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM



  • ERPS supports rapid protection and recovery in a ring topology



  • Fanless design for silent operation



  • Durable metal casing and desktop/rack mounting design



Hardware Features

Category Details
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface 8 x 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), 2 x 1000Mbps SFP Slots, 1 x Console Port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (max 100m); 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (max 100m); 1000BASE-X: MMF, SMF
Fan Quantity Fanless
Power Supply 100～240VAC, 50/60Hz
Power Consumption Maximum: 10.7W (220V/50Hz)
Dimensions (W x D x H) 11.6 x 7.9 x 1.7 in (294 x 200 x 44 mm)

Performance

Category Details
Bandwidth/Backplane 20Gbps
Packet Forwarding Rate 14.9Mpps
MAC Address Table 8k
Packet Buffer Memory 4Mb
Jumbo Frame 10240 Bytes

Software Features

Category Details
Quality of Service Support 802.1p CoS/DSCP priority, 4 priority queues, Queue scheduling: SP, WRR, SP+WRR, Port/Flow-based Rate Limiting, Voice VLAN
L2 Features IGMP Snooping V1/V2/V3, 802.3ad LACP (8 groups, 8 ports per group), Spanning Tree (STP/RSTP/MSTP), Port isolation, BPDU filtering/guard, TC/Root protect, Loopback detection, 802.3x Flow Control
VLAN Supports up to 4K VLANs, Port/MAC/Protocol-based VLAN, GARP/GVRP, Management VLAN configuration
Access Control List L2～L4 package filtering based on MAC, IP, TCP/UDP, 802.1p, DSCP, protocol, VLAN ID; Time Range Based
Security IP-MAC-Port-VID Binding, IEEE 802.1X, Radius, Guest VLAN, DoS Defence, Dynamic ARP Inspection, SSH v1/v2, SSL v2/v3/TLSv1, Port Security, Storm Control
IPv6 Dual IPv4/IPv6 stack, MLD Snooping, ND, MTU discovery, ICMPv6, TCPv6/UDPv6
IPv6 Applications DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, HTTP/HTTPS, IPv6 TFTP
Management Web-based GUI and CLI management, SNMP v1/v2c/v3, RMON, DHCP/BOOTP Client, DHCP Snooping, CPU Monitoring, Port Mirroring, SNTP, NDP/NTDP, Firmware Upgrade (TFTP & Web), System Diagnose: VCT, SYSLOG & Public MIBs
