TP-Link TL-SG116E 16 Port Gigabit Easy Smart Lan Desktop Switch
TP-Link TL-SG116E 16 Port Gigabit Easy Smart Lan Desktop Switch
Regular price
Rs. 3,785.05
Regular price
Rs. 0.00
Sale price
Rs. 3,785.05
Quantity
Couldn't load pickup availability
TP-Link TL-SG116E 16 Port Gigabit Easy Smart Lan Desktop Switch
- 16 10/100/1000Mbps RJ45 ports

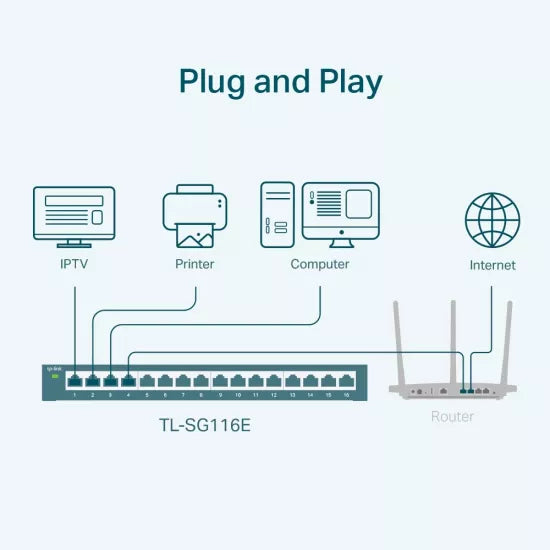

- Plug and play, with no configuration required
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
| Feature | Description |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 16 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 12VDC/1.0A) |
| Dimensions (W x D x H) | 11.3 × 4.4 × 1.0 in. (286 × 111.7 × 25.4 mm) |
| Max Power Consumption | 9.19W (220V/50Hz) |
| Max Heat Dissipation | 31.36BTU/h |
Performance
| Feature | Description |
|---|---|
| Switching Capacity | 32Gbps |
| Packet Forwarding Rate | 23.81Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1Mb |
| Jumbo Frame | 9KB |
Software Features
| Feature | Description |
|---|---|
| Quality of Service | Support Port-based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN |
| Transmission Method | Store-And-Forward |
Others
| Feature | Description |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG116E, Power Cord, Installation Guide, Rubber Feet |
| System Requirements | Microsoft® Windows® for running Utility |
