TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor Access Point to Point (P2P)

TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor Access Point to Point (P2P)

Rs. 6,544.15
Rs. 0.00 Rs. 6,544.15
Sale Sold out

TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor Access Point to Point (P2P)

  • 802.11ac for up to 867Mbps on 5GHz wireless data rate*1
  • 23dBi high-gain directional 2×2 MIMO, ideal for long-range wireless transmission up to 30km*2
  • Excellent beam directivity, improved latency and noise cancellation

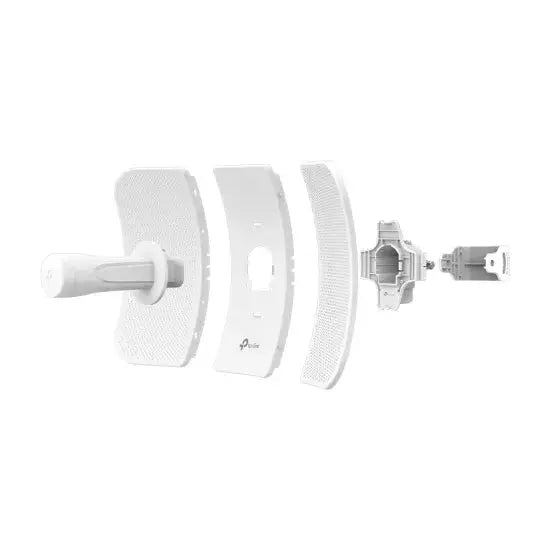

  • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
  • Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability*3
  • Pharos Control gives administrators a free, centralized management system
  • Passive PoE supports to allow flexible deployment and convenient installation



Processor Qualcomm 750MHz CPU, MIPS 74Kc
Memory 128 MB DDR2 RAM, 16 MB Flash
Interface 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/PoE)
1 Reset Button
Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DC
Dimensions (W x D x H) 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna Gain 23 dBi
Antenna Beamwidth 9° (Azimuth)/7° (Elevation)
Protection 15 KV ESD Protection
6 KV Lightning Protection
Enclosure Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design

Wireless Features

Feature Description
Wireless Standards IEEE 802.11a/n/ac
Wireless Speeds Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)
Frequency 5.15–5.85 GHz
Transmit Power Max. 27 dBm (Adjustable power by 1dBm)

Software Features

Feature Description
Network Configuration WAN: Static/Dynamic/PPPoE
LAN: Static/Dynamic/DHCP
Forwarding: ALG/UPnP/Virtual Server/Port Trigger
Security: SPI Firewall/Ping Forbidden/DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding
Wireless Configurations Selectable Channel Width: 20/40/80 MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP)
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP Mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced: Beacon Interval, RTS Threshold, Fragmentation Threshold, DTIM Interval, AP Isolation, Short GI, Wi-Fi Multimedia
Long Range PtP
Management Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System Tools Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna Alignment
System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications

POE Adapter Features

Feature Description
Dimensions (W x D x H) 85.8 × 43.9 × 29.7 mm
Interfaces 1 AC Jack with Earth Ground
1 × 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1 × 10/100/1000 Mbps Shielded Ethernet Port (Data)
Button Remote Reset Button
Power Status LEDs Green
Input 100-240VAC, 50/60Hz
Output 24VDC, 0.5A Max
+4, 5pins; -7, 8pins (Supports up to 60m Power over Ethernet)
Efficiency >84.29%
Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
