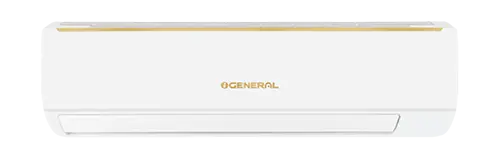

O General 1.1 Ton 3 Star Split AC (ASGA-AOGA14BMAA-B)
O General 1.1 Ton 3 Star Split AC (ASGA-AOGA14BMAA-B)
Couldn't load pickup availability
|
General |
|
|
Capacity |
1.1 Ton |
|
Model |
ASGA-AOGA14BMAA-B |
|
Check for Main Power Supply |
|
|
Main Power Supply at |
INDOOR UNIT |
|
Main Power Source P & N |
230 Volts / 50Hz / 1 Phase |
|
Proper Earthing |
Mandatory |
|
Main Power N & E |
± 3 Volts |
|
Resistance (To be measured with ground test meter) |
<25 Ohms |
|
ODU TO IDU Wiring |
|
|
Maximum Operating Current in A*1 |
6.3 |
|
Starting Current in A |
NA |
|
Connection Cord ODU to IDU in mm2 |
1.5—2.5 |
|
No. of Cores - ODU to IDU |
3 |
|
Power Cable in mm2 |
2.5—3.5 |
|
No of Cores - Power Supply |
3 |
|
Connection cable limited wiring length in m*2 |
16 |
|
Circuit Breaker Current in A |
16 |
|
Piping Size & Thickness |
|
|
Type of Gas |
R32 |
|
Copper Pipe Thickness in mm |
0.8 |
|
Pipe size-Liquid in mm |
Ø 6.35 |
|
Pipe size-Suction in mm |
Ø 12.70 |
|
Pipe Limitation & Additional Refrigerant Charge |
|
|
Minimum Pipe Length in m |
3 |
|
Maximum Pipe Length in m |
15 |
|
Maximum Height Difference in m |
10 |
|
Pre-Charged Refrigerant in g |
860 |
|
Standard Refrigerant Pre-Charged in m |
5 |
|
Additional Charge in g/m |
15 |
