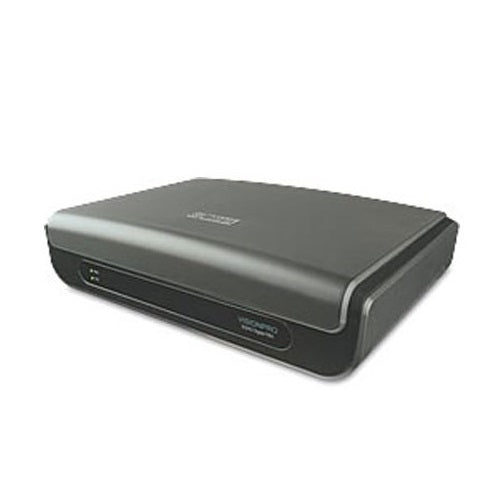

Matrix Vision Pro 308
Matrix Vision Pro 308
Regular price
Rs. 7,025.25
Regular price
Rs. 0.00
Sale price
Rs. 7,025.25
Quantity
Couldn't load pickup availability
Matrix Vision Pro 308
- CONFIGURATION Number of Trunks 3
- Number of Extensions 8
- POWER SUPPLY Input External Adaptor 12 VDC @ 2A
- Power Consumption (Maximum) 19.2W
- MECHANICAL Dimensions (WxHxD) 15.5 x 22.0 x 4.95cm (6.10”x8.66”x1.95”) Unit Weight Max. 0.65kg (1.43lbs) Shipping Weight Max. 1.2kg (2.64lbs) Approx.
- ENVIRONMENT Operating Temperature o o o o 0 C to +50 C (32 F to 122 F) Operating Humidity 0-95%RH, Non-Condensing
TECHNICAL SPECIFICATIONS
| Type of Switching | PCM/TDM, Digital Switching, 100% Non-blocking |
| Processor | 16-bit DSP |
| SLT (Analog Station) | |
|---|---|
| Signalling | Loop Start |
| Dialling | DTMF and Pulse (10/20PPS) |
| Off Hook AC Impedance | 600/900/Complex |
| Off Hook Current | 39mA Max. |
| Loop Limit | 1800Ω Max (Excluding Telephone) |
| On-Hook Voltage (Tip/Ring) | -48V nominal |
| DTMF detection | ITU-T Q.24 |
| Return Loss | >18dB |
| Longitudinal Balance | >50dB |
| Transmission Level Adjust | Tx Gain: -12dB to +6dB, Rx Gain: -12dB to +6dB |
| Ringing | Trapezoidal 50VRMS/25Hz and Sinusoidal 52VRMS/25Hz |
| REN | 3 |
| CLI Presentation | DTMF, FSK ITU-T V.23 and FSK Bellcore 202 |
| Protection | Over Voltage Secondary Protection |
| Physical Connector | 2.54mm Push Type connector |
| CO (Central Office)/Two-Wire Trunk (TWT) | |
| Signalling | Loop Start |
| Loop Limit | 1200Ω |
| Off Hook AC Impedance | 600/900/Complex |
| Pulse Dialling | 10/20 PPS |
| DTMF Dialling and Reception | ITU-T Q.23 and Q.24 |
| Return Loss | >18dB |
| Longitudinal Balance | >50dB |
| Transmission Level Adjust | Tx Gain: -15dB to +10dB. Rx Gain: -15dB to + 10dB |
| CLI Reception | DTMF, FSK ITU-T V.23 and FSK Bellcore 202 |
| Call Maturity | Delay and Polarity Reversal |
| Protection | Over Voltage and Over Current Secondary Protection |
| Physical Connector | Over Voltage Secondary Protection |
| Physical Connector | 2.54mm Push Type connector |
| Power Supply | |
| Input | External Adapter 12V@2A for VISIONPRO 206, 308, 412 |
| Mechanical | |
| Dimensions (WxHxD) | 23.1x16.25x5.5cm (10.5"x11.2"x3.1") |
| Unit Weight | 0.65 kg (1.43lbs) |
| Shipping Weight | 3.5 kg (7.7lbs) |
| Installation | Wall Mount |
| Environment | |
| Operating Temperature | 0°C to 45 °C (+32°F to +122°F) |
| Operating Humidity | 95% RH, Non-Condensing |
| Range of SOHO PBX | |
| VISIONPRO206 | Digital PBX with 2 Trunks and 6 Analog Extensions |
| VISIONPRO308 | Digital PBX with 3 Trunks and 8 Analog Extensions |
| VISIONPRO412 | Digital PBX with 4 Trunks and 12 Analog Extensions |
