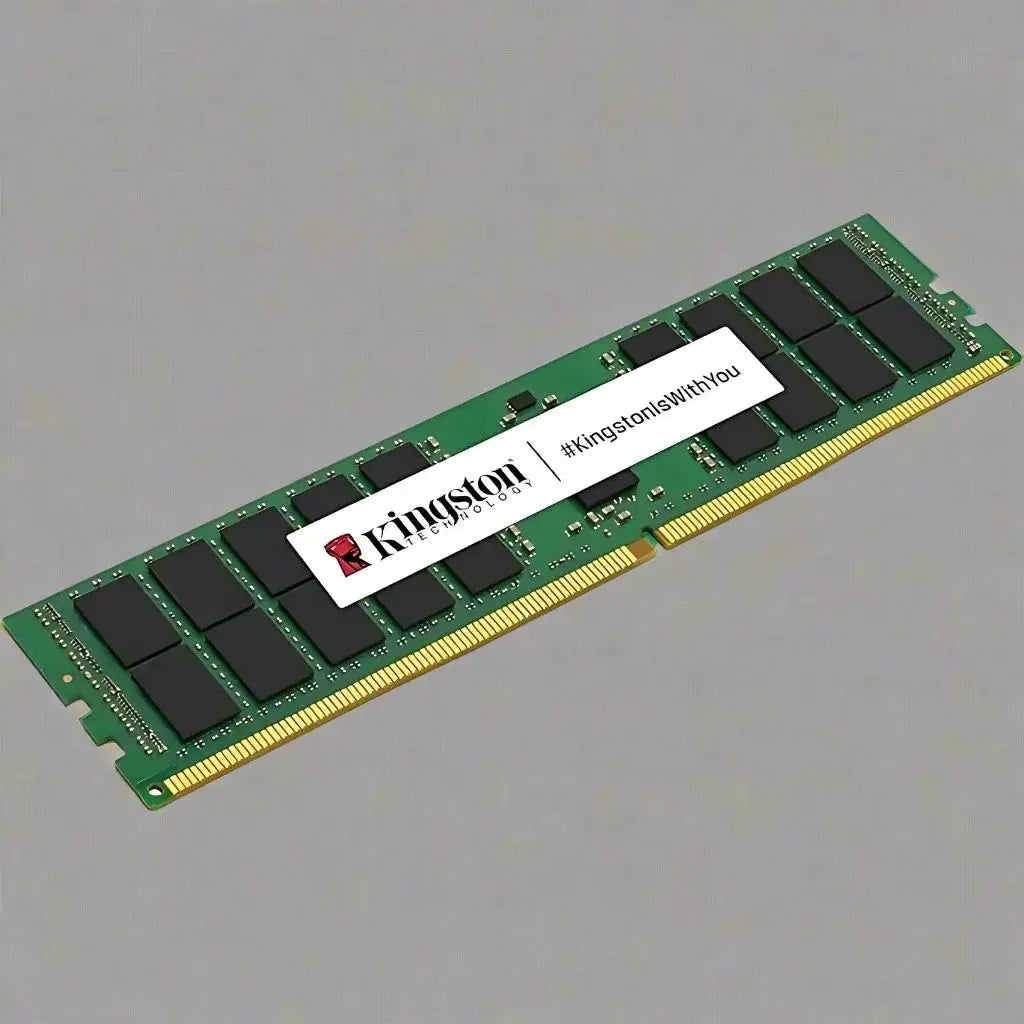

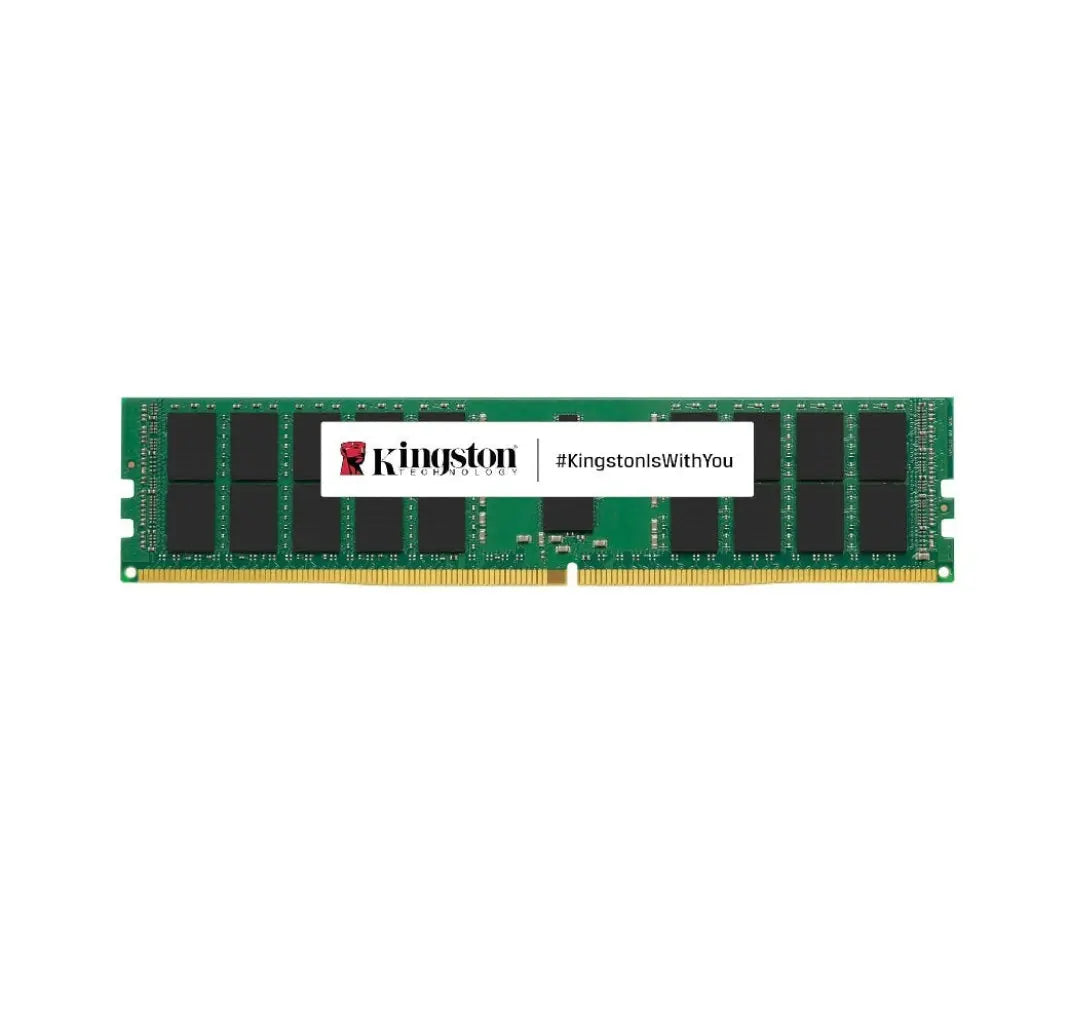

Kingston Premier 8GB DDR4 3200 Mhz ECC CL22 288 Pin RAM DIMM Workstation Server NAS Memory
Kingston Premier 8GB DDR4 3200 Mhz ECC CL22 288 Pin RAM DIMM Workstation Server NAS Memory
Couldn't load pickup availability
🧠 8GB Capacity – Ideal for entry-level servers and workstations
⚡ DDR4-3200 Speed – Delivers high-performance data throughput
🛡️ ECC Functionality – Ensures data integrity with error correction
🔧 Unbuffered DIMM (1Rx8) – Compatible with a wide range of server platforms
🌡️ Integrated Thermal Sensor – Enables intelligent system monitoring
🧬 JEDEC Standard Timing – CL22 latency with 22-22-22 timings at 1.2V
Upgrade your server’s reliability and responsiveness with the Kingston KSM32ES8/8HD 8GB DDR4 ECC Unbuffered DIMM. Designed for mission-critical environments, this module delivers 3200MT/s speed and CL22 latency, ensuring smooth multitasking and robust data protection through ECC technology. Its single-rank 1Rx8 configuration, low-voltage operation, and JEDEC-compliant design make it a dependable choice for modern server and workstation builds.
Product Specification:
| Specification | Details |
| Model | KSM32ES8/8HD |
| Capacity | 8GB |
| Organization | 1Rx8, 1G x 72-bit |
| Memory Type | DDR4 SDRAM |
| Speed | 3200 MT/s |
| CAS Latency (CL) | 22 cycles |
| Voltage | 1.2V (VDD, VDDQ), 2.5V (VPP), 2.2V–3.6V (VDDSPD) |
| Form Factor | 288-Pin DIMM |
| ECC Support | Yes |
| Components | Nine 1G x 8-bit FBGA |
| SPD Timing | JEDEC standard 22-22-22 |
| Row Cycle Time (tRCmin) | 45.75ns (min) |
| Refresh Command Time (tRFCmin) | 350ns (min) |
| Row Active Time (tRASmin) | 32ns (min) |
| Operating Temperature | 0°C to +85°C |
| Storage Temperature | -55°C to +100°C |
| Power Features | LPASR, DBI, On-die VREFDQ, ODT |
| Burst Length | Fixed BC4 and BL8, Selectable BC4/BL8 OTF |
| Topology | Fly-by topology |
| PCB Height | 1.23” (31.25mm) |
| Compliance | RoHS Compliant, Halogen-Free |
| Additional Features | SPD EEPROM, Temperature Sensor, Terminated Control Bus |
| Country of Origin | Taiwan |
| Warranty | Limited Lifetime Warranty by Kingston |
