Kingston Premier 16GB DDR5 5200MHz 288 Pin ECC CL42 DIMM Server Workstation Memory
Kingston Premier 16GB DDR5 5200MHz 288 Pin ECC CL42 DIMM Server Workstation Memory
Couldn't load pickup availability
🔋 Power Supply: Operates at VDD = 1.1V, VDDQ = 1.1V, VPP = 1.8V, and VDDSPD = 1.8V–2.0V for efficient power management.
🛡️ ECC & Architecture: Features On-Die ECC and x72 ECC with 2 independent I/O sub-channels across 32 internal banks.
⏱️ Timing Specs: CL(IDD) = 42 cycles, tRCmin = 48ns, tRFCmin = 295ns, tRASmin = 32ns, tRPmin = 16ns for optimized latency.
🔧 Durability & Compliance: UL rated 94 V-0, RoHS compliant, halogen-free, with Hard/Soft Post Package Repair support.
🌡️ Thermal Range: Operates from 0°C to +95°C and stores safely between -55°C to +100°C, suitable for demanding environments.

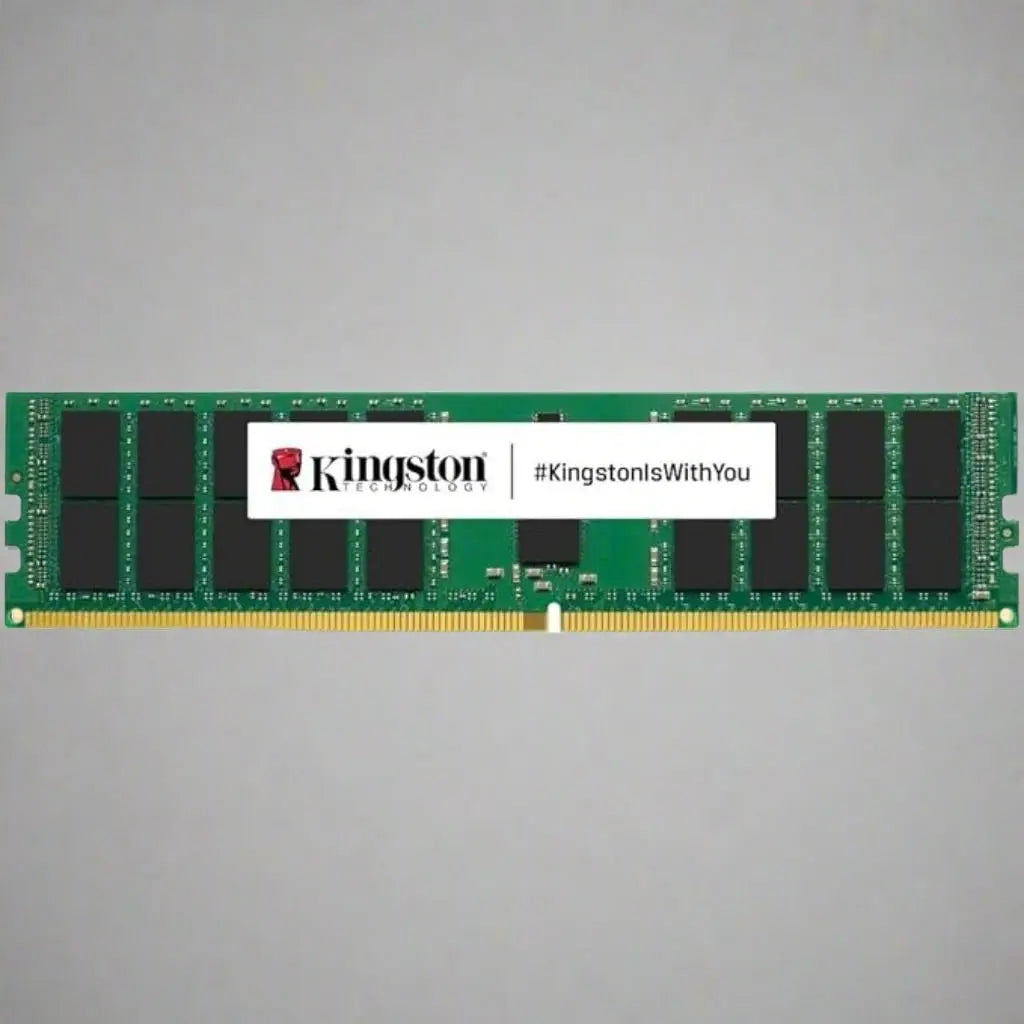

The Kingston KSM52E42BS8KM-16HA is a 16GB DDR5 ECC Registered DIMM designed for high-speed, error-resilient server performance. Operating at 5200 MT/s with CL42 latency, it features Hynix A-DIE DRAM, on-die ECC, and x72 error correction. With support for sideband access via I3C/I2C and post-package repair, this module ensures enterprise-grade reliability and thermal efficiency.
Specification Table:
| Specification | Details |
| Brand | Kingston |
| Model Number | KSM52E42BS8KM-16HA |
| Capacity | 16GB |
| Memory Type | DDR5 ECC Registered DIMM |
| Speed | 5200 MT/s (PC5-41600) |
| CAS Latency (CL) | 42 cycles (42-42-42) |
| Voltage | 1.1V Typical |
| Form Factor | 288-Pin DIMM |
| Rank | Single Rank (1Rx8) |
| ECC Support | On-Die ECC & x72 ECC |
| DRAM Type | Hynix A-DIE |
| Operating Temperature | 0°C to +95°C |
| Storage Temperature | -55°C to +100°C |
| Compliance | RoHS Compliant, Halogen-Free |
| Country of Origin | Taiwan |
| Warranty | Lifetime by Kingston |
