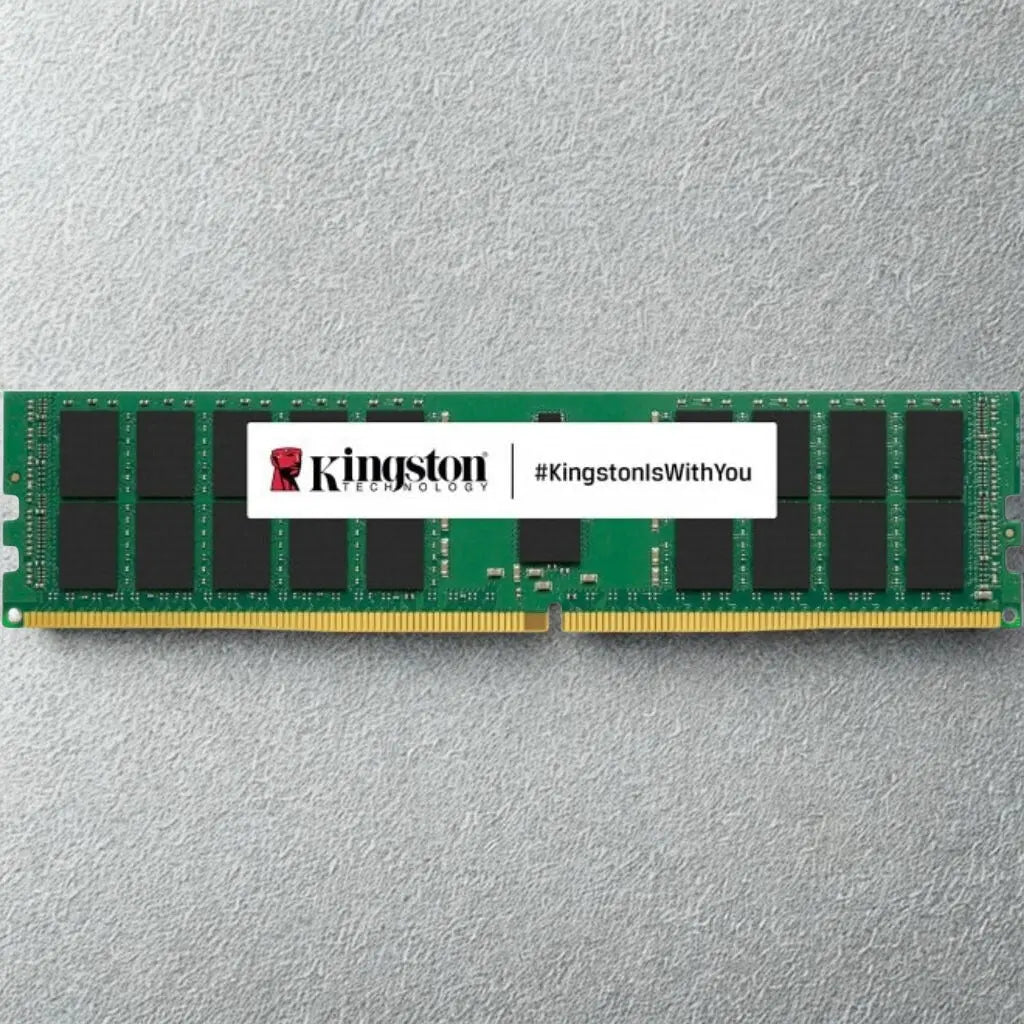

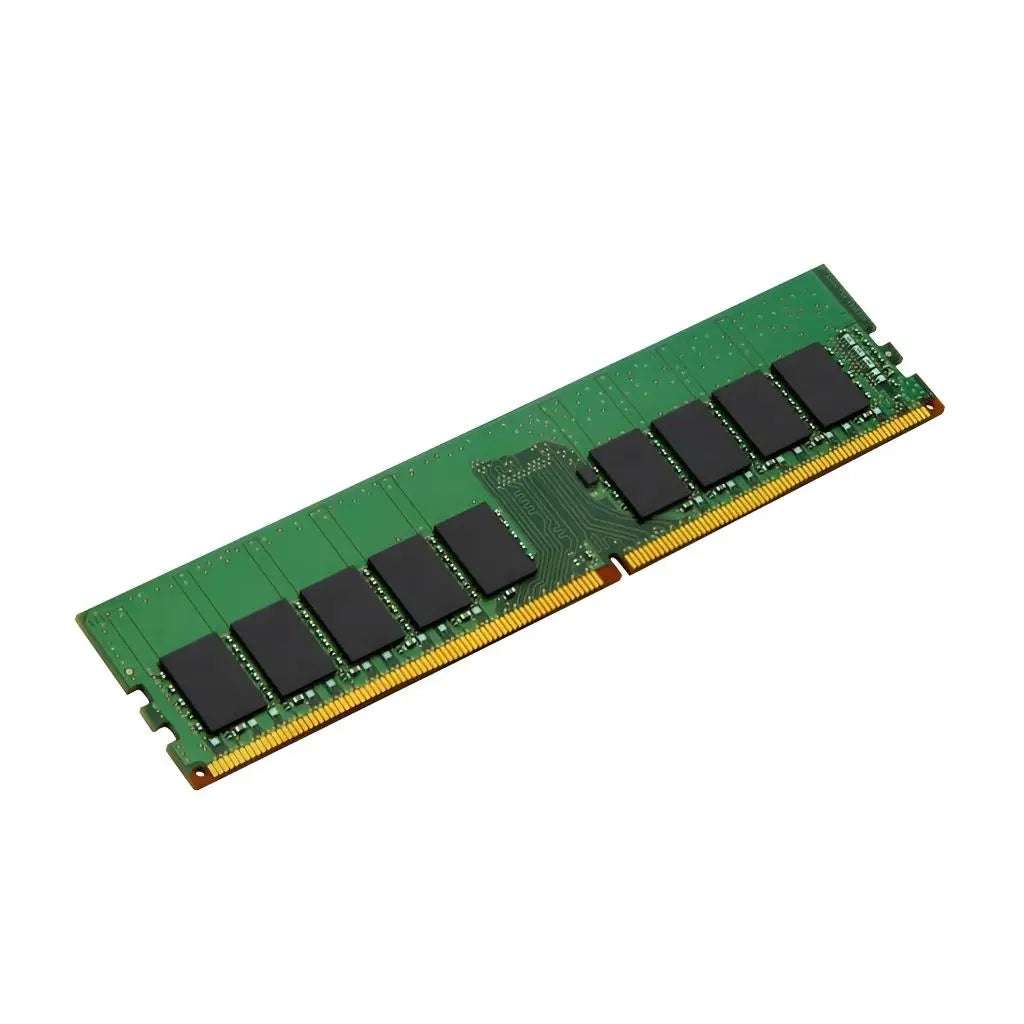

Kingston Premier 16GB DDR4 3200MHz ECC CL22 288 Pin RAM DIMM Workstation Server Memory
Kingston Premier 16GB DDR4 3200MHz ECC CL22 288 Pin RAM DIMM Workstation Server Memory
Couldn't load pickup availability
✅ 16GB DDR4 ECC UDIMM – High-capacity memory for servers and workstations
🚀 3200MHz Speed – Fast data transfer for improved system responsiveness
🧠 ECC Support (CL22) – Error-Correcting Code ensures data accuracy and system stability
🔌 JEDEC Standard Timing – 22-22-22 latency at 1.2V for optimal performance
🧩 288-Pin UDIMM Form Factor – Compatible with most server and workstation motherboards
🛡️ Server Premier Series – Validated for enterprise-grade reliability and uptime
🌡️ Wide Operating Temperature – 0°C to +85°C for robust thermal performance
♻️ RoHS Compliant & Halogen-Free – Environmentally friendly design.
The Kingston KSM32ES8/16HC is a high-performance 16GB DDR4 ECC memory module engineered for servers and enterprise-grade workstations. Utilizing nine 2G x 8-bit FBGA components, it delivers JEDEC-standard DDR4-3200 performance with a CAS latency of 22 cycles. This module supports advanced features like low-power auto self-refresh (LPASR), data bus inversion (DBI), and on-die termination (ODT), ensuring efficient and stable operation. With gold-plated contacts and robust thermal monitoring, it meets UL and RoHS standards, making it a reliable choice for mission-critical environments.
Product Specification:
| Specification | Details |
| Part Number | KSM32ES8/16HC |
| Memory Type | DDR4 SDRAM |
| Capacity | 16GB |
| Speed | 3200 MT/s (PC4-25600) |
| CAS Latency | CL22 |
| Form Factor | 288-Pin DIMM |
| Rank | Single Rank (1Rx8) |
| Error Correction | ECC (Error-Correcting Code) |
| Buffering | Unbuffered |
| Voltage | 1.2V |
| DRAM Manufacturer | Hynix C-DIE |
| Operating Temperature | 0°C to 85°C |
| Build of Materials | Fixed BOM |
| Country of Origin | Taiwan |
| Warranty | Lifetime Warranty by Kingston |
