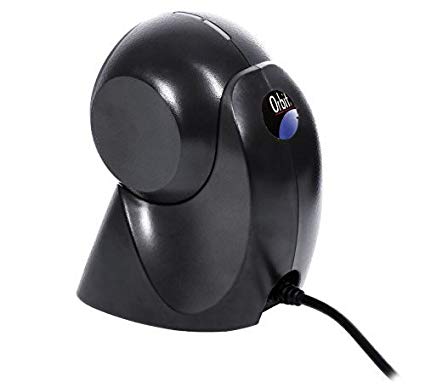

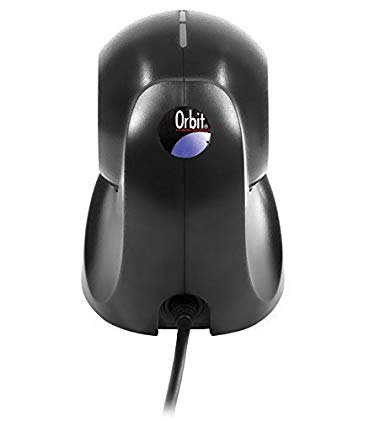

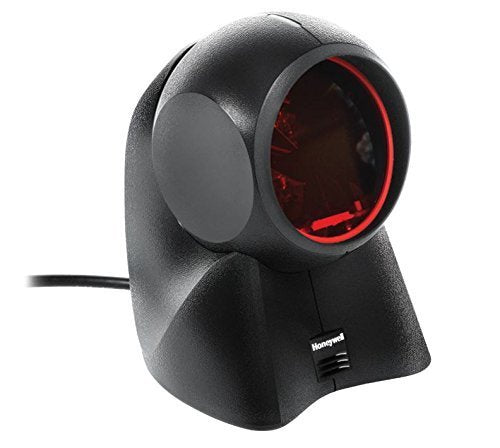

HoneyWell Barcode Scanner 7190G

HoneyWell Barcode Scanner 7190G

2D scanner
Hybrid Technology - laser and imager in one scanner
1D and digital 1D, 2D and PDF barcodes
Multi-Interface Design, Adjustable Scan Head
Hybrid, Omnidirectional Laser (5 fields of 4 parallel lines) and Area Imager (640 x 480 pixel array

Technical Specifications

MECHANICAL Dimensions (L x W x H): 108 mm x 103 mm x 148 mm (4.3 in x 4.1 in x 5.8 in) Weight: 410 g (14.5 oz) ELECTRICAL Input Voltage: 5 VDC ±0.25 V Operating Power: 472 mA @ 5 V Standby Power: 255 mA @ 5 V Host System Interfaces: USB, RS-232, Keyboard Wedge, IBM468xx (RS485) EAS

Features: EAS with interlock and integrated RF EAS antenna (EAS model) ENVIRONMENTAL Storage Temperature: -40°C to 60°C (-40°F to 140°F) Operating Temperature: 0°C to 40°C (32°F to 104°F) Humidity: 5% to 95% relative humidity, non-condensing Drop: Designed to withstand 1.2 m (4 ft) drops Environmental Sealing: Sealed to resist airborne particulate contaminants Light

Levels Laser: 4842 Lux Imager: 100000 Lux SCAN PERFORMANCE Scan Pattern: Hybrid, Omnidirectional Laser (5 fields of 4 parallel lines) and Area Imager (640 x 480 pixel array) Scan Speed Omnidirectional: 1120 scan lines per second FPS: 30 Scan Angle (Imager) Horizontal: 40.0° Vertical: 30.5° Symbol Contrast: 35% minimum reflectance difference Pitch, Skew Laser: 60°, 60°

Imager: 60°, 70° Decode Capability Laser: Reads standard 1D, GS1 DataBar symbologies Imager: Reads standard 1D, PDF and 2D symbologies Warranty: Three-year factory warranty
