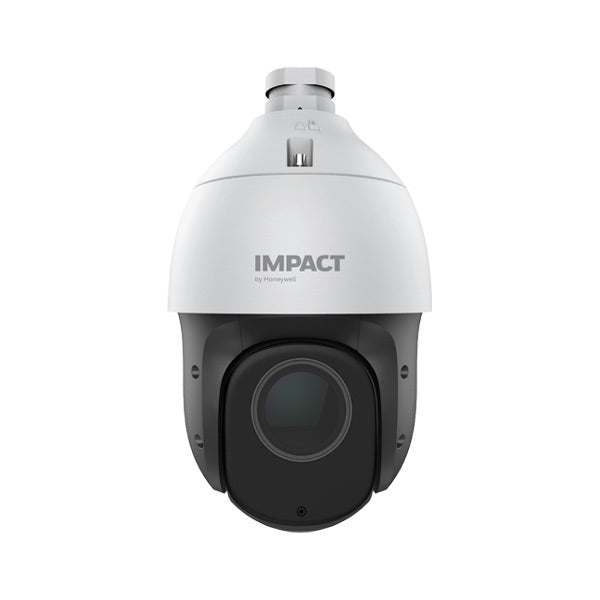

Honeywell 2MP 33X IP PTZ
FEATURES
- Up to 1920X1080 @30fps
- Min. illumination Color: 0.001Lux @F1.5
- Optical zoom: 33x, digital zoom 16x
- Smart IR Range Up to 150M
- IH+265/H.265/ H.264/M-JPEG
- Intelligent monitoring/ Face Capture mode
- Plugin Free
- IP67
Specifications
| Model No. | I-HIP2PI-S33X |
|---|---|
| CAMERA | |
| Image Sensor | 1/2.8” CMOS |
| Signal System | PAL/NTSC |
| Min Illumination | Color: 0.001lux@ (F1.5, ACG ON), BW: 0lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 140dB |
| Optical Zoom | 33x |
| Digital Zoom | 16x |
| Lens | |
| Focal Length | 4.8mm~120mm |
| Zoom Speed | <4s |
| Angle of View | Horizontal: 60.0° (w)~2.3° (t) Vertical: 34.4° (w)~1.5° (t) |
| Aperture Range | F1.5~F4.0 |
| PAN&TILT | |
| Pan Range | 360° |
| Pan Speed | Pan Manual Speed: 0.1°~180°/s, Pan Preset Speed: 240°/s |
| Tilt Range | -16°~90° (Auto flip) |
| Tilt Speed | Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 180°/s |
| 3D Position | Yes |
| Presets | 500 |
| Preset Accuracy | ±0.4° |
| Scan | 8 |
| Cruise | 16, up to 32 presets per cruise |
| Pattern | 8, each with 600s memory or 1000 orders |
| Power-off Memory | Yes |
| ILLUMINATOR | |
| IR LEDS | 6 |
| IR Range | Up to 150m |
| IR Irradiation Angle | Adjustable by Zoom |
| COMPRESSION STANDARD | |
| Video Compression | IH+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32Kbps~16Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Bit Rate | 8K~48Kbps |
| IMAGE | |
| Max. Resolution | 2.0MP (1920×1080) |
| Main Stream | PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480) NTSC: 30fps (1920×1080, 1280×720, 704×480, 640×480) |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) NTSC: 30fps (704×480, 704×240, 640×360, 352×240) |
| Third Stream | PAL: 25fps(704×576, 704×288, 352×288) NTSC: 30fps (704×480, 704×240, 352×240) |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| ROI | 7 Dynamic Areas for Both Main and Sub Stream |
| OSD | 16x16, 32x32, 48x48, 64x64, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions |
| Picture Overlay | Yes |
| Privacy Mask | Yes |
| Smart Defog | Yes |
| FEATURE | |
| Alarm Trigger | Harsh Voice Alarm, Motion Detection, Mask Alarm, Port Alarm,Network Disable Alarm, IP Conflict, MAC Conflict Detection |
| Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Heatmap, On Duty Detection, Video Abnormal, Audio Abnormal |
| FACE DETECTION AND ANALYTICS | |
| Operating Mode | Face capture, intelligent monitoring optional, default intelligent monitoring |
| Face Detection Performance | Detects up to 16 faces at the same scene |
| Face Exposure Brightness | Default 35, 1~100 brightness optional |
| Min. Face Pixel | Min. Face Pixel |
| Precautionary Alert | Three level |
| NETWORK | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, MULTICAST, RTMP |
| ANR | Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Impact Series ANR Support NVR) |
| Remote Connection | ≤7 |
| Client | IH-View |
| Web Version | Web6 |
| INTERFACE | |
| Communication interface | 1 RJ45 10M/100M self adaptive Ethernet po |
| Audio | 1/1 |
| Alarm | 1/1 |
| Reset Button | Yes |
| On-board storage | Built-in MicroSD card slot, up to 256 GB |
| GENERAL | |
| Web Client Language | English |
| Operating Conditions | -40°C~70°C (IR OFF), -40°C~40°C (IR ON), 0-95%RH |
| Power Supply | DC12V±10%/POE |
| Power Consumption | 11W(IR OFF), 19.63W(IR ON) |
| Protection | IP67, Lightning protection, surge protection and voltage transient protection |
| Dimensions | 222x372mm (8.74x14.65inch) |
| Weight | 2.9kg(6.39lb) |
