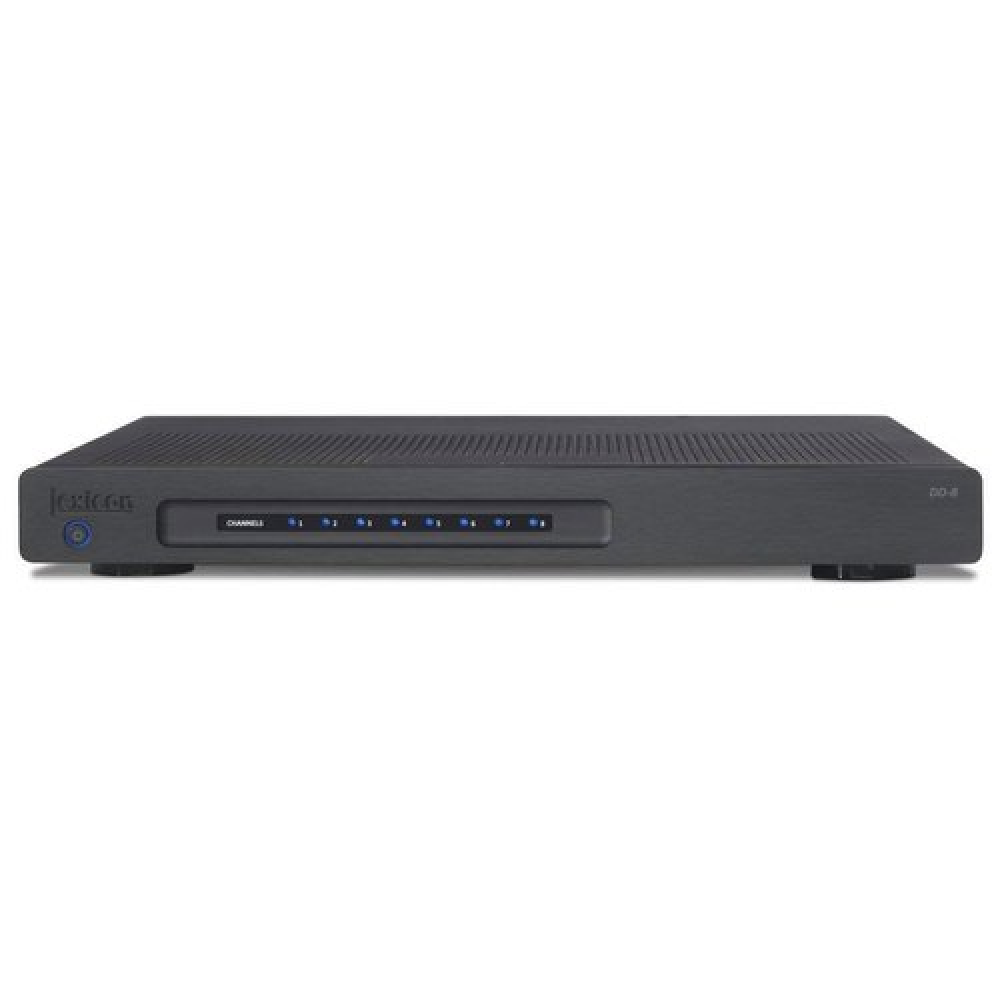

Harman Kardon DD8A (8 x 125W) 8-channel Multi-room Audio Amplifier

The Lexicon DD-8 redefines the state-of-the-art for multi-room distributed audio. Taking advantage of HARMAN’s pioneering DriveCore™ amplifier technology, the DD-8 packs eight channels of 125W into a single rack space.

  • Multi-patented DriveCore Amplifier Technology
  • 8 channels each with 125W into 8-ohms, All Channels Driven
  • High-efficiency, Quiet Convection-cooled Design
  • Local/Bus RCA Input Selection and Independent Channel Output Level Controls
  • 12V Trigger Input/Outputand Signal-sensing Channel Inputs
  • Short-circuitand Thermal Protection Circuitry

Specifications

Frequency Response 20Hz-20kHz +0/-1.5dB
Input Impedance 100K ohms typical
Input Sensitivity 1.12 volts for 125W out into 8 ohms
Height 2.1" (5.4cm) w/ feet / 1.7" (4.5cm) w/out feet (1 rack space)
Width 17.3" (43.8cm)
Depth 14.9" (37.8cm)
Weight 9.2 lb (4.2kg)
Communication and Control 12V DC Trigger In/Out (3.5mm and Phoenix)
Inputs Bus and Local L/R RCA jacks
Rated Output Power Into 8 Ohms 125W RMS per Channel from 20Hz-20kHz, All Channels Driven
Signal-to-Noise Ratio < -105dB Below Rated Full Power A-weighted
Total Harmonic Distortion (THD) Less than 0.05% at Full Rated Power 20Hz-20kHz
Gain 29dB
Power Requirements 100-240VAC 50/60Hz 190W
Speaker Connections 4-pin Phoenix-type Connectors
Included Accessories Rack Ears and Mounting Hardware
