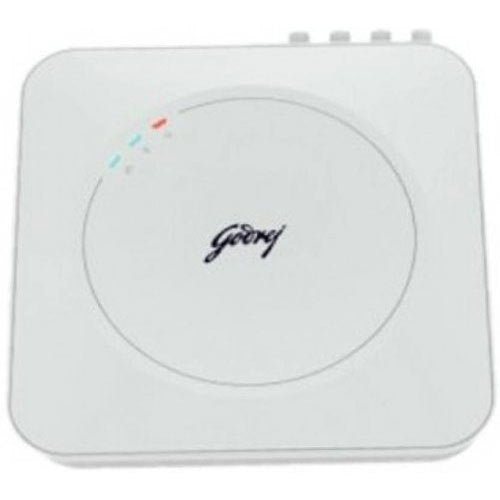

Godrej 2MP 4ch DVR STE-UR4S1-1080P

Brand

Godrej

Product Type

Digital Video Recorder

Product Code

STE-UR4S1-1080P

Color

White

Series

ECO

Chipset

Hi3520Dv200

Video Input

4ch BNC interface(1.0Vp-p, 75 Ω)

TVI

1080P, 720P

CVI

1080P, 720P

AHD

1080P, 720P

IPC

Up to 6ch 2MP

CVBS

Support

Audio Input

1-ch, RCA(2.0 Vp-p, 1 KΩ)

HDMI

1ch, Resolution:

1920×1080/60Hz,1280×1024/60Hz，1280×720/60Hz，1024×768/60Hz

VGA

1ch, Resolution: 1920×1080/60Hz,1280×1024/60Hz，1280×720/60Hz，1024×768/60Hz

Audio Output

1-ch, RCA (Linear, 1kΩ)

Multi-screen display

4CH: 1/4/6

Compression

H.264

Resolution

"4ch 1080P Lite@25fps; 960H1/D1/CIF real time"

Frame Rate(fps)

1fps-25fps

Video Bit Rate

11Kbps-4096Kbps

Record Mode

Manual, Schedule, Alarm

Audio Compression

G.711a

Audio Bit Rate

64Kbps

Playback Mode

Normal/Time Division/Label/Event/Picture Playback

Playback Rate

4ch Playback

Backup Mode

USB Device/Network

Intelligent Detection

1CH

Smart Playback

Line Crossing/Are Intrution

Cloud Storage

Support

Cloud Upgrade

Support

Ethernet

1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface

Network Function

HTTP, TCP/IP, IPv4, UPNP,RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, P2P, ONVIF 2.4

Max. User Access

32 users

Smart Phone

IOS(iPhone, iPad), Android(Phone, Pad)

SATA

1 HDD

Capacity

Up to 8TB capacity for each HDD

Two Way Talk

1-ch, multiplex with Audio Input(RCA)

USB Interface

2 × USB 2.0

Power Supply

DC12V, 1.5A

Power Consumption

≤10W(without HDD)

Working Environment

-10°C~+55°C / 10%~90%RH

Dimension (W×D×H)

196 x 196 x 48mm
