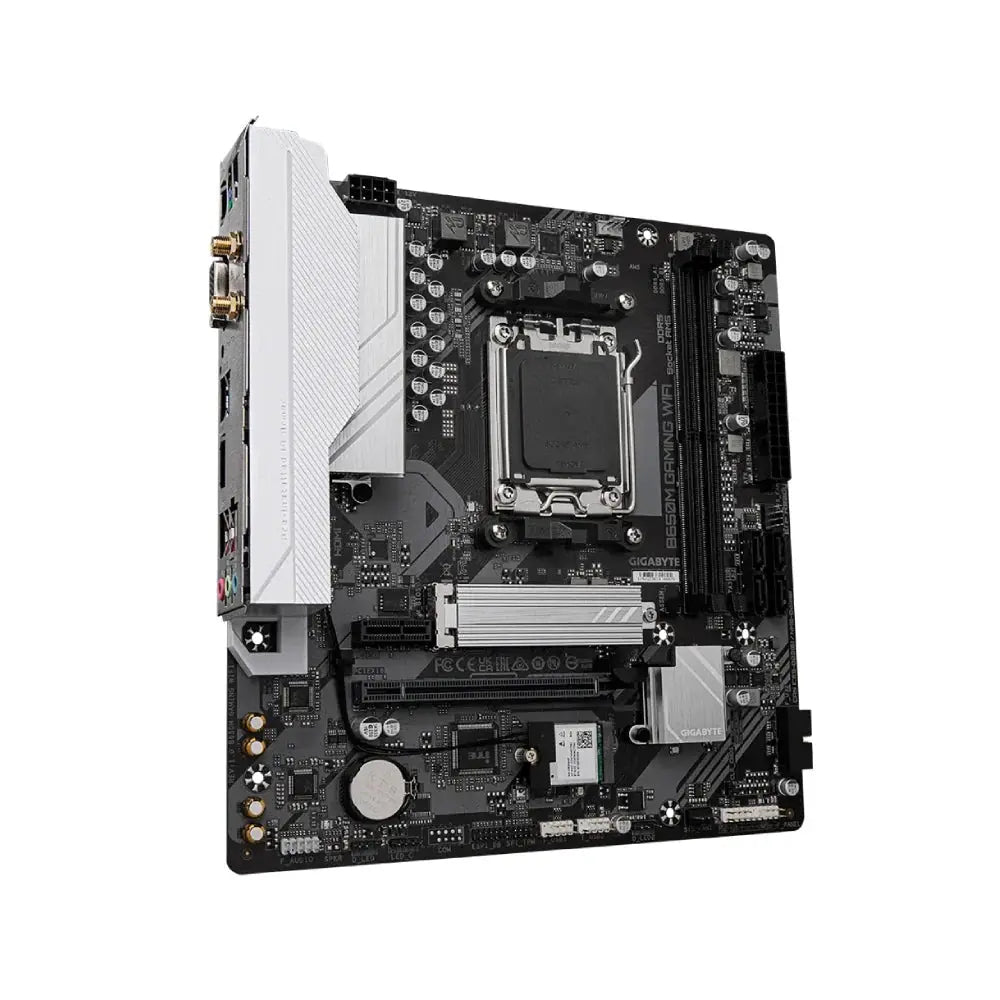

Gigabyte Motherboard B650M Gaming WIFI DDR5 For AMD Ryzen
Gigabyte Motherboard B650M Gaming WIFI DDR5 For AMD Ryzen
Regular price
Rs. 10,072.50
Regular price
Rs. 0.00
Sale price
Rs. 10,072.50
Quantity
Couldn't load pickup availability
Gigabyte Motherboard B650M Gaming WIFI DDR5 For AMD Ryzen
- CPU: AMD Ryzen 7000 Series / Ryzen 8000 Processors - Chipset: AMD B650 - Memory: Support memory modules up to DDR5 6400 (OC) - 2 DDR5 DIMM sockets supporting up to 96GB (single DIMM capacity of 48GB) of system memory
- Graphics: Integrated graphics processor with support for AMD Radeon graphics - 1 D Sub port, supporting a maximum resolution of 1920x1200 at 60Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60Hz - Support HDMI 2.1 and HDCP 2.3 version. - Support native HDMI 2.1 TMDS compatible ports. - Audio: Realtek Audio CODEC - High Definition Audio - 2/4/5.1/7.1 Channels

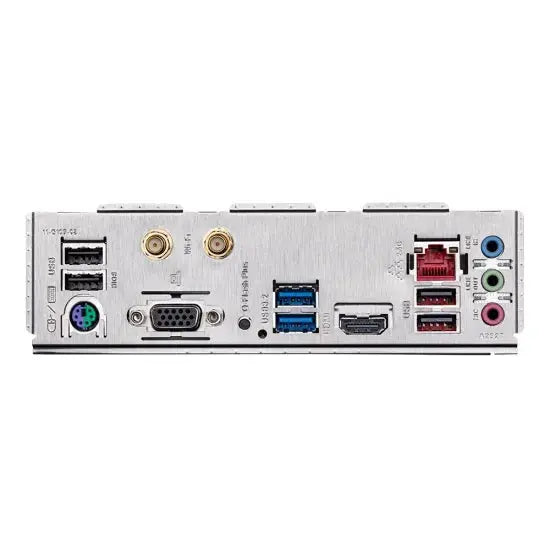

- Back Panel Connectors: 4 USB 2.0/1.1 Ports - 1 x PS/2 Keyboard/Mouse Port - 1 x D-Sub Port - 1 x Q-Flash Plus Button - 2 x USB 3.2 Gen 1 Ports - 1 x HDMI Port - 1 x RJ-45 Port - 3 x Audio Jack
- 1 x 256Mbit Flash - UEFI AMI Licensed BIOS Usage - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 - Unique Features: - GIGABYTE Control Center (GCC) Support - Q Flash Support - Q-Flash Plus Support
- Software Bundle: Norton Internet Security (OEM Version) - LAN Bandwidth Management Software - Support Windows 11 64-bit - Support Windows 10 64-bit - Micro ATX Form Factor; 24cm x 22.5cm
| Specification | Details |
|---|---|
| CPU | AMD Socket AM5, Ryzen™ 7000 / 8000 / 9000 Series |
| Chipset | AMD B650 |
| Memory | DDR5 up to 8000 MT/s (OC), 4 DIMMs, 256 GB Max, Dual Channel, AMD EXPO/XMP support |
| Graphics | 2 x DisplayPort (4K@144Hz), 1 x HDMI 2.1 (4K@60Hz), Up to 3 displays |
| Audio | Realtek® Audio CODEC, 7.1-Channel HD Audio |
| LAN | Realtek® 2.5GbE LAN |
| Wi-Fi / Bluetooth | Wi-Fi 6E (RZ616 or AX210), Bluetooth 5.2 / 5.3 |
| PCIe Slots | 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 3.0 x1 (Chipset) |
| Storage | 2 x M.2 PCIe 4.0, 4 x SATA 6Gb/s, RAID 0/1/10 for NVMe & SATA |
| USB Ports | USB 3.2 Gen 2 Type-C, Type-A, Gen 1, USB 2.0 (Internal & Rear) |
| Internal Connectors | 24-pin & 8-pin Power, Fan headers, RGB/ARGB, USB 3.2, TPM, CMOS |
| Back Panel | DP, HDMI, USB-C, USB-A, LAN, Audio, PS/2, Q-Flash, Antenna |
