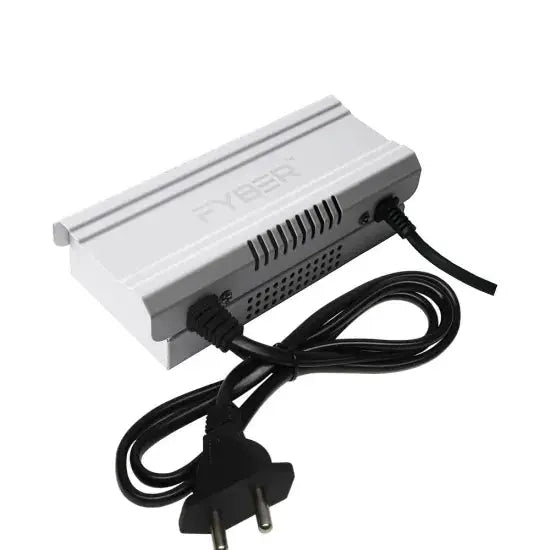

Fyber 8CH Metal CCTV Power Supply 12V | 8A FW108
Fyber 8CH Metal CCTV Power Supply 12V | 8A FW108
Regular price
Rs. 552.50
Regular price
Rs. 0.00
Sale price
Rs. 552.50
Quantity
Couldn't load pickup availability
Fyber 8CH Metal CCTV Power Supply 12V | 8A FW108
| Feature | Specification |
|---|---|
| VAC Voltage | 150~265VAC |
| Output Voltage | 12~15VDC |
| Rated Power | 75W |
| Ripple & Noise (max.) | 144mV (max) |
| Voltage Adj. Range | 12~15V |
| Device | Primary-Side Regulation |
| Device Frequency | 132KHz |
| VDS Voltage | 576V (max) |
| Line Regulations | 1% |
| Load Regulations | 5% |
| SCP | Output short-circuit protection |
| OPP, OCP | Output overload/over-current protection |
| OVP | Output overvoltage protection, auto-restart or latching |
| Line UV | Line brown-in/out protection |
| OV | Line overvoltage shutdown extends line surge withstand |
| OTP | Accurate thermal shutdown, hysteretic or latching |
| Efficiency (Typ.) | 83% |
| Frequency Range | 47~63Hz |
| Storage Temperature | 0-50°C |
