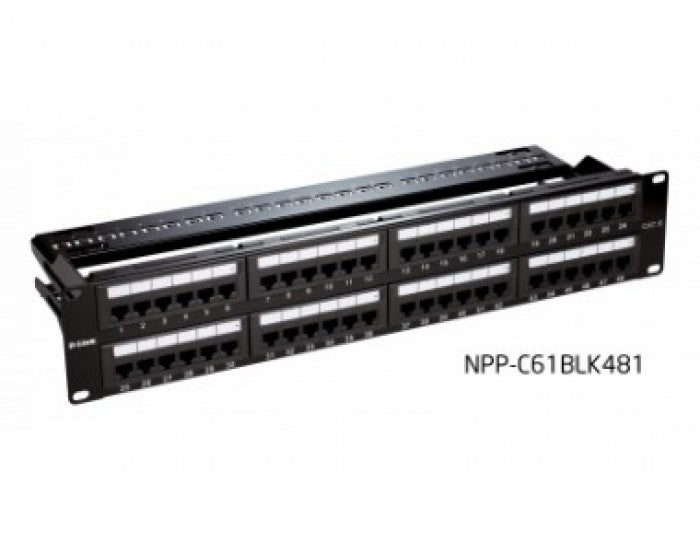

• Dlink 48 Port Cat 6 Patch Panel FULLY LOADED
1 1

BROOT COMPUSOFT LLP

Dlink 48 Port Cat 6 Patch Panel FULLY LOADED

Dlink 48 Port Cat 6 Patch Panel FULLY LOADED

Rs. 5,142.50
Rs. 0.00 Rs. 5,142.50
Sale Sold out

Dlink 48 Port Cat 6 Patch Panel FULLY LOADED

D-Link Category 6 patch panels are six port RJ45 modules applied and suitable for 22-26 AWG stranded and solid wire, compatible with both 110 & Krone punch down tools. D-Link patch panels have improved Cable Management with optional Cable Management bar terminating 4 pairs UTP cable.

Features

  • Six-port RJ45 modules applied
  • IDC compatible with 110 & Krone tool
  • Terminating 4 pairs, 22-26 AWG, unshielded cable
  • Improved cable management with an optional cable management bar
  • Universal labels color-coded for T568A and T568B wiring schemes

Specifications

Identification :

  • ID Plate : PC, transparent color with paper
  • Panel : SPCC, 1.5mm thickness with black color

RJ45 Jack

  • Housing :PBT +Glass fiber UL94V-O
  • Contact Brackets : PBT + Glass fiber UL94V-0, black colour


RJ45 Jack Contact

  • Material : Phosphor bronze with nickel plated
  • Finish : 50 micro-inch Gold plated on plug contact area


IDC

  • Housing : PC, UL 94V-0
  • Terminal : phosphor bronze with tin plated


Jack bracket set:

  • ABS


Support Bar

  • SPCC, 1.5mm thickness with Black colour painted



View full details
