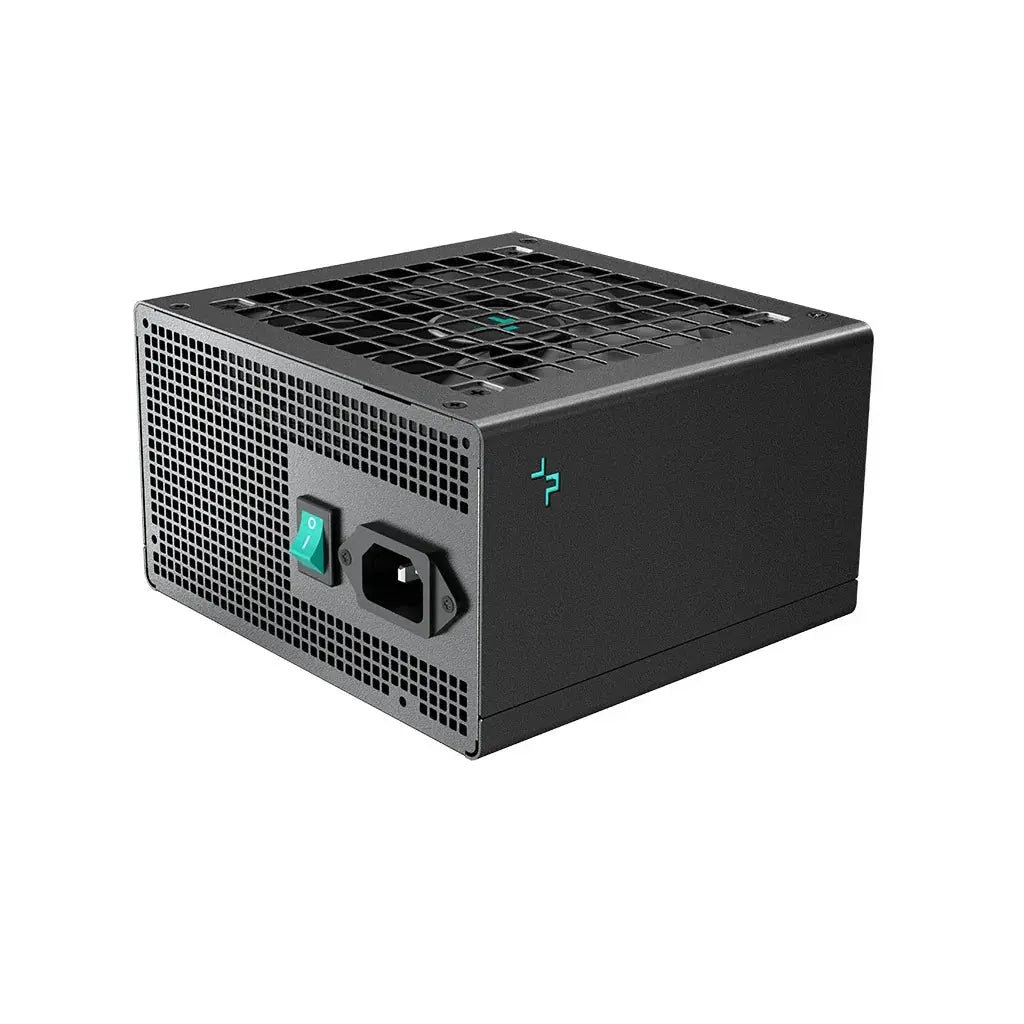

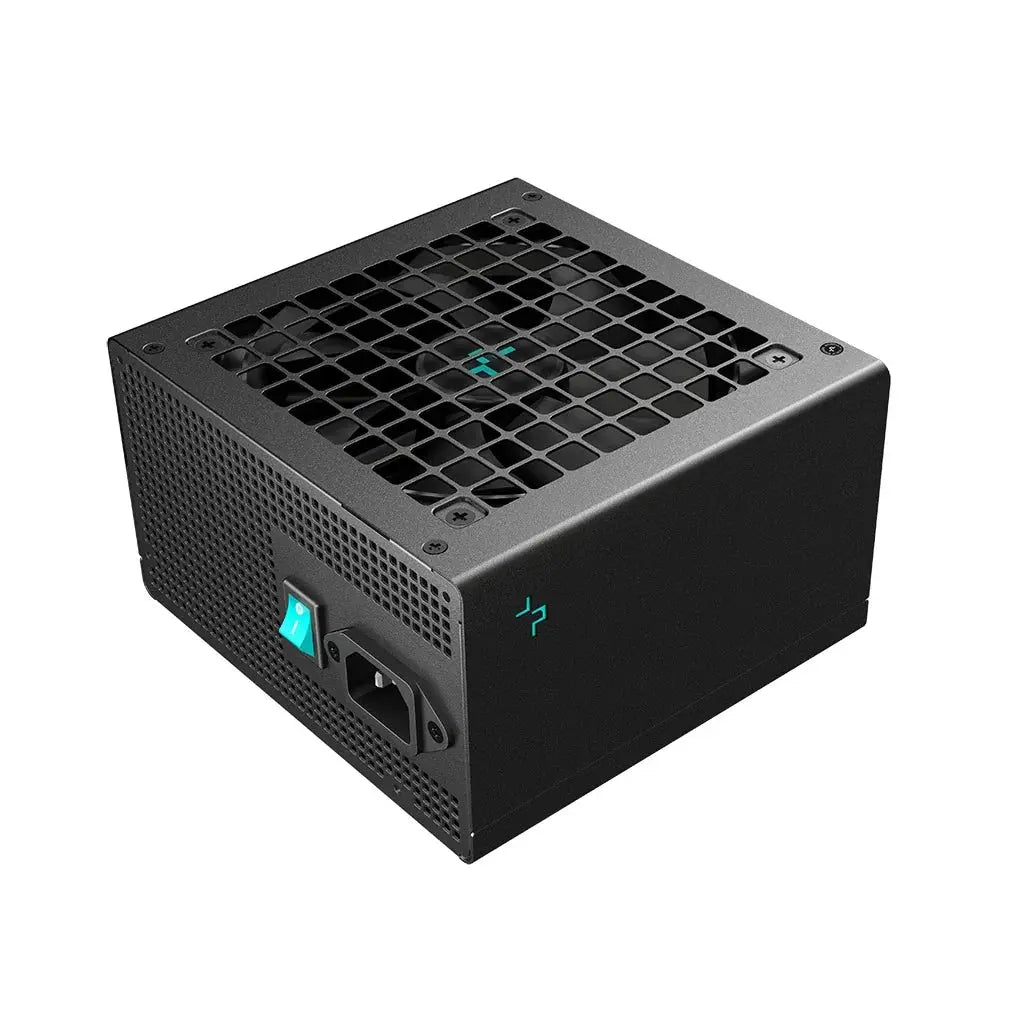

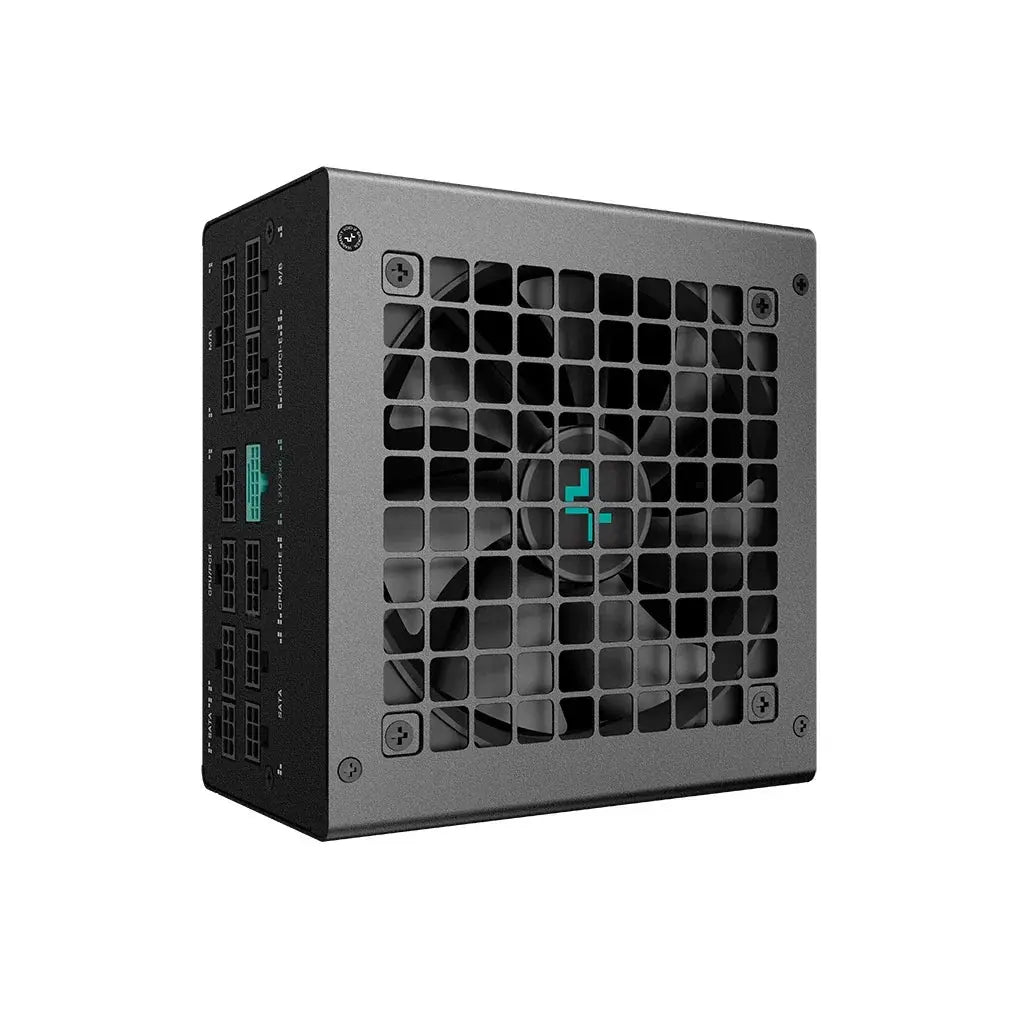

DeepCool PN1000M 1000W 80 Plus Gold ATX 3.1 Fully Modular Power Supply for Gaming PC
DeepCool PN1000M 1000W 80 Plus Gold ATX 3.1 Fully Modular Power Supply for Gaming PC
Regular price
Rs. 10,795.00
Regular price
Rs. 12,699.00
Sale price
Rs. 10,795.00
Quantity
Couldn't load pickup availability
🔋 1000W of Pure Performance
Unleash stable and efficient power delivery for high-end gaming rigs and professional workstations.
🌟 80 Plus Gold Certified
Enjoy up to 90% energy efficiency, reducing heat and electricity bills while boosting system reliability.
🧩 Fully Modular Design
Say goodbye to cable clutter—connect only what you need for a clean and optimized build.
🖥️ ATX 3.1 & PCIe 5.1 Ready
Future-proof your setup with support for the latest Intel and GPU standards, including 12V-2×6 connectors.
🔒 Comprehensive Protection Suite
Built-in safeguards including OVP, OPP, SCP, OTP, UVP, and more—your hardware stays safe under all conditions.
🔇 Silent Operation
Equipped with a high-quality fan and smart thermal control for whisper-quiet performance even under load.
🛡️ Up to 10-Year Warranty
Confidence that lasts—backed by Deepcool’s trusted long-term warranty.
| Feature | Details |
| Model | PN1000M |
| Form Factor | ATX 3.1 |
| Power Output | 1000 Watts |
| Efficiency Certification | 80 Plus Gold (≥90% under typical load) |
| Modularity | Fully Modular |

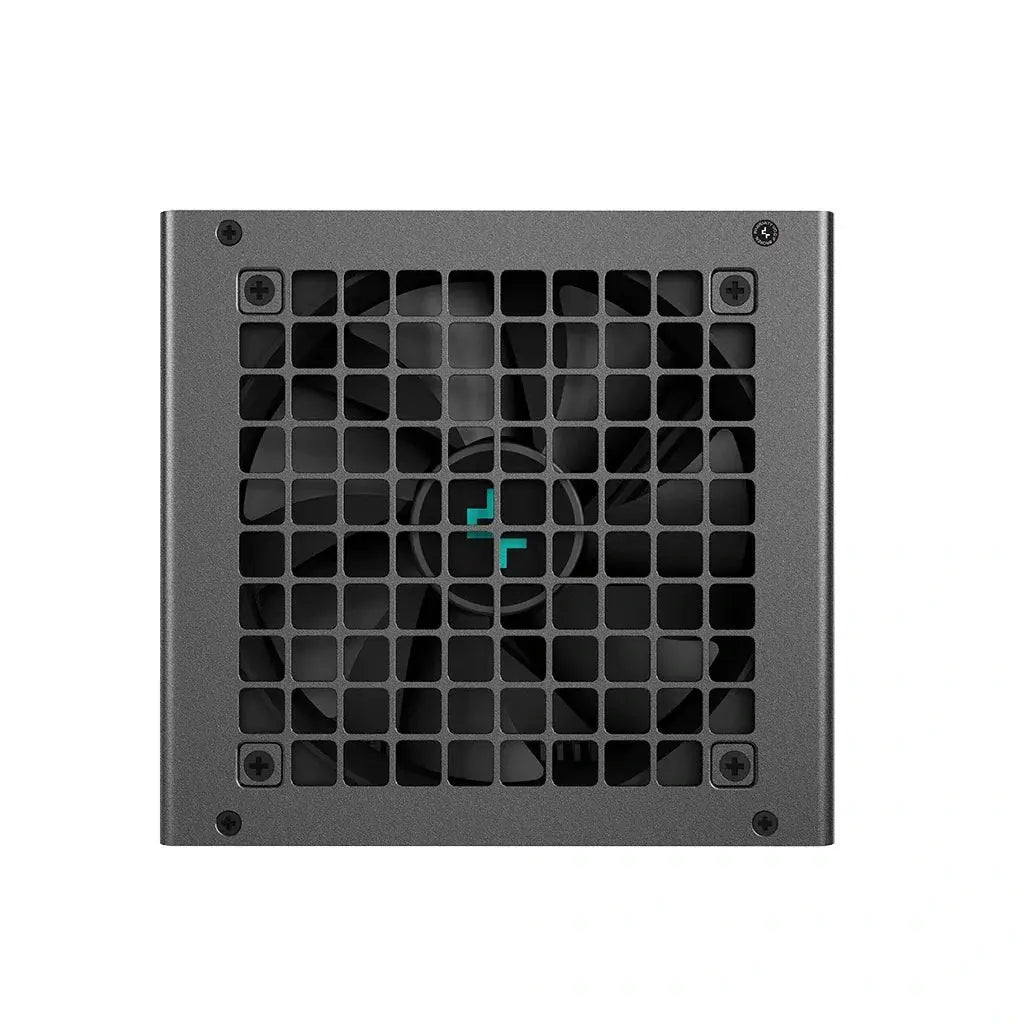

| Fan Type | 135mm Fluid Dynamic Bearing (FDB) |
| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Hold-Up Time | ≥16ms at 80% Load |
| Power Good Signal | 100–150ms |
| Protection Features | OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO |
| PCIe Support | PCIe 5.1 with 12V-2×6 connector (up to 600W for GPUs) |

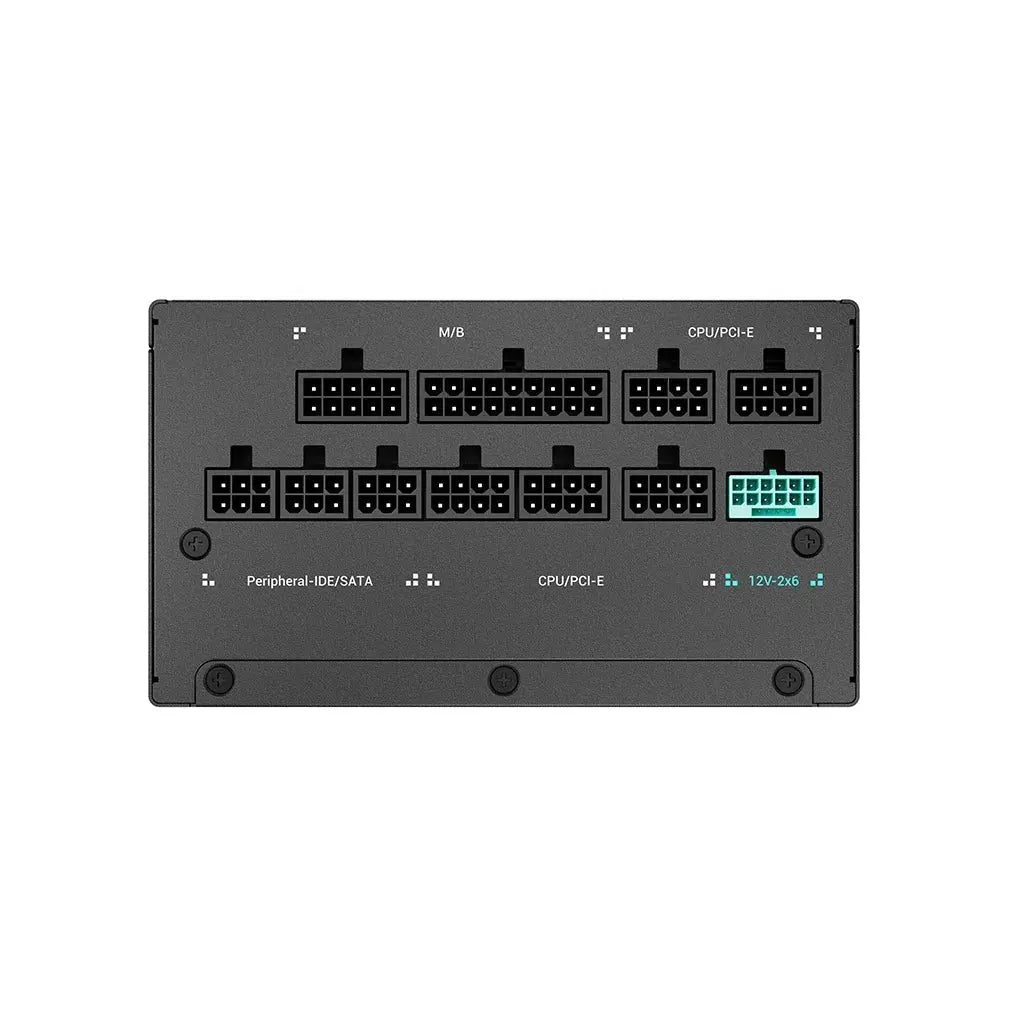

| Connectors | 2× EPS, 3× PCIe 6+2, 1× PCIe 12+4, 8× SATA, 2× Molex |

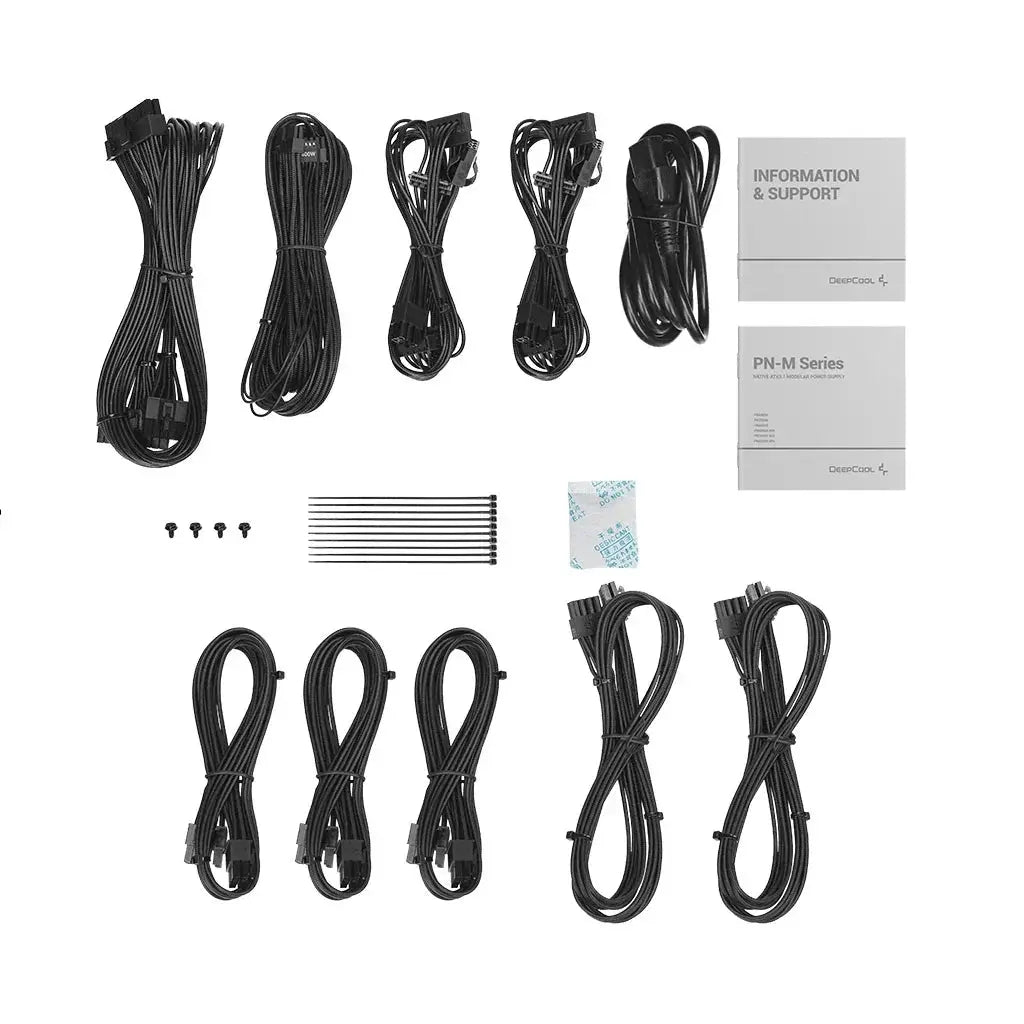

| Cable Type | Sleeved cables with 16AWG copper-core for GPU |
| Dimensions (W×L×H) | 150mm × 150mm × 86mm |
| Weight | ~1.72 kg |
| Operating Temperature | 0°C to 40°C |
| MTBF | >100,000 hours |
| Warranty | 10 Years |
| Certifications | CE, FCC, CCC, TUV-RH, cTUVus, RCM, EAC, BIS |
| Environmental Compliance | ErP 2014, WEEE, RoHS, Triman, P65 |
