DeepCool Gamer Storm PN1200M 1200W 80 Plus Gold ATX 3.1 Fully Modular Power Supply
DeepCool Gamer Storm PN1200M 1200W 80 Plus Gold ATX 3.1 Fully Modular Power Supply
Couldn't load pickup availability
Future-Proof Design: Capable of handling power spikes by delivering twice the total system power for 0.1ms, ensuring stable performance for both legacy and next-generation PCs.
80 Plus Gold Certification: Provides high energy efficiency with up to 90% efficiency under typical loads, reducing energy consumption and heat output.

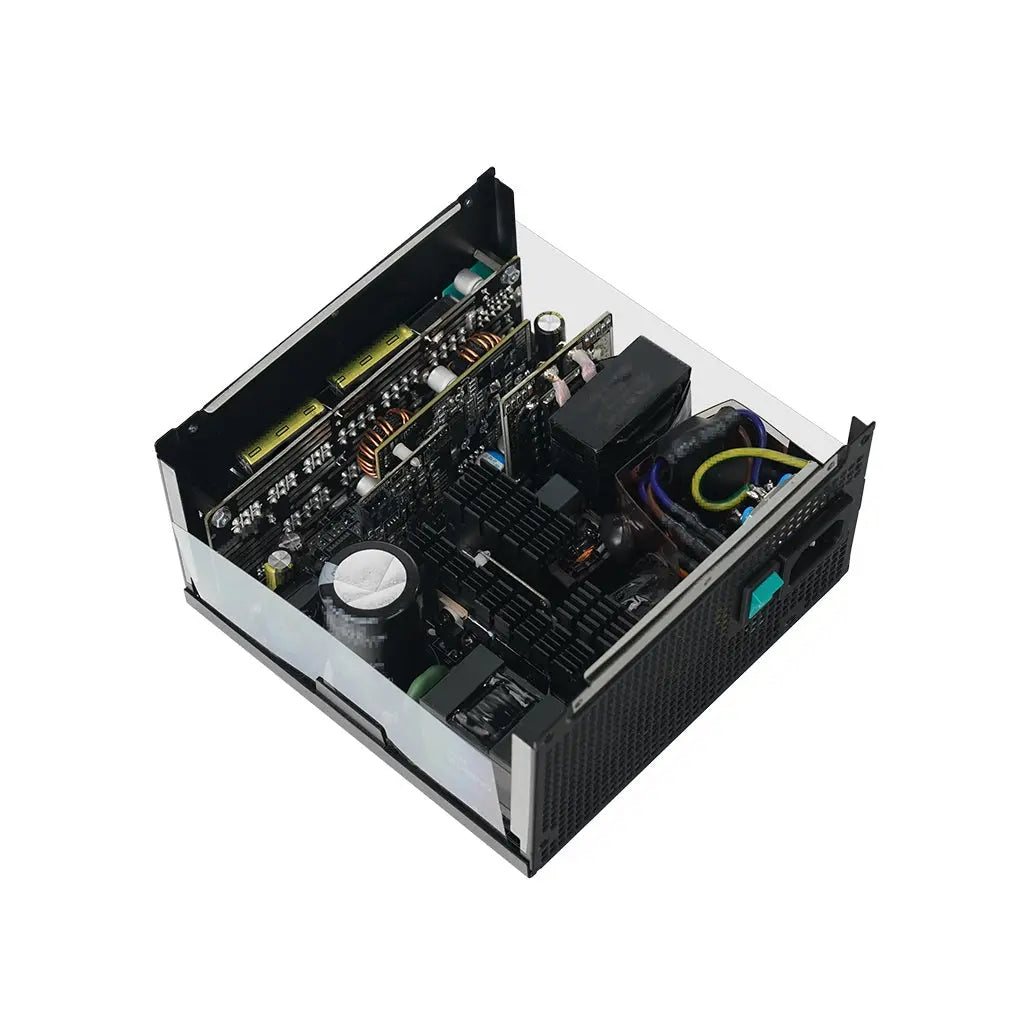

Advanced Build Quality: Features Japanese electrolytic capacitors, active PFC, and a DC-to-DC topology for reliable and consistent power delivery.

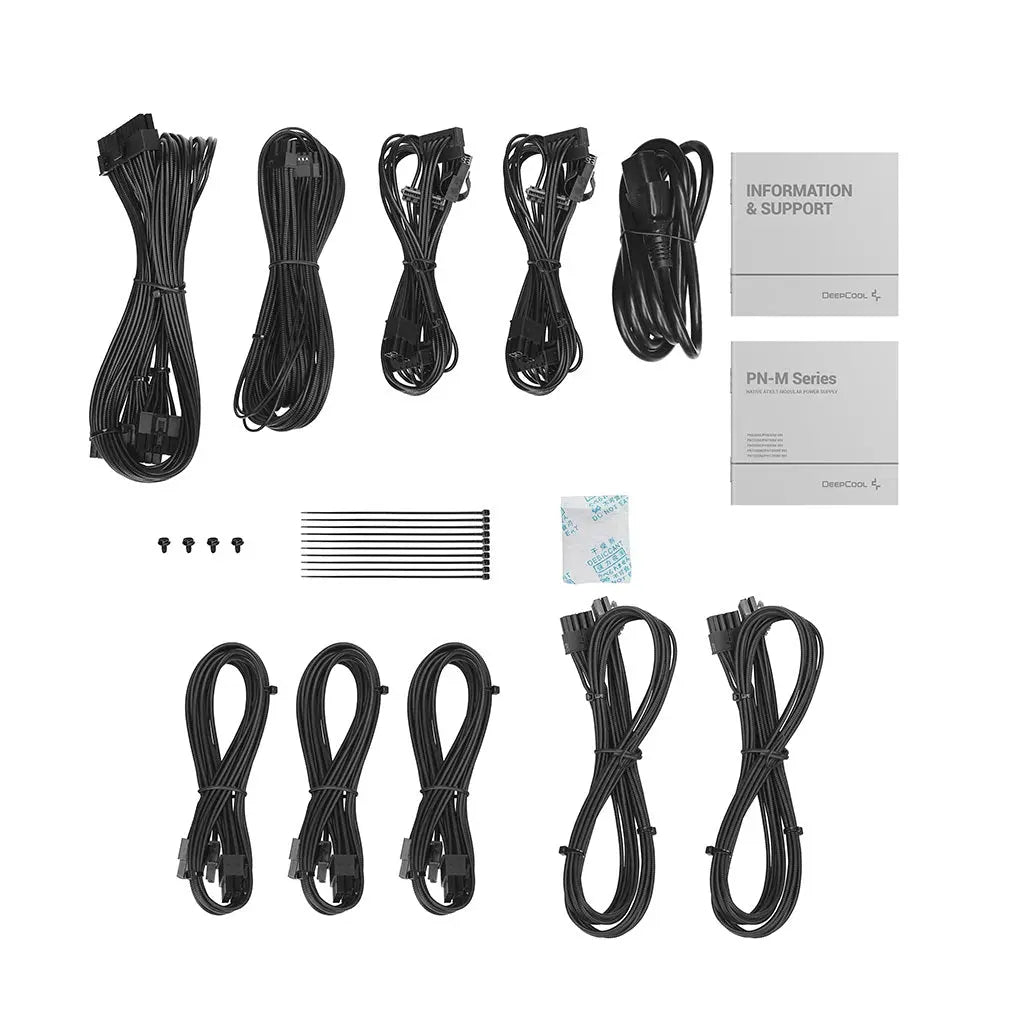

PCIe 5.1 Ready: Equipped with a 16AWG copper-core 12V-2x6 cable, supporting up to 600W for modern GPUs.

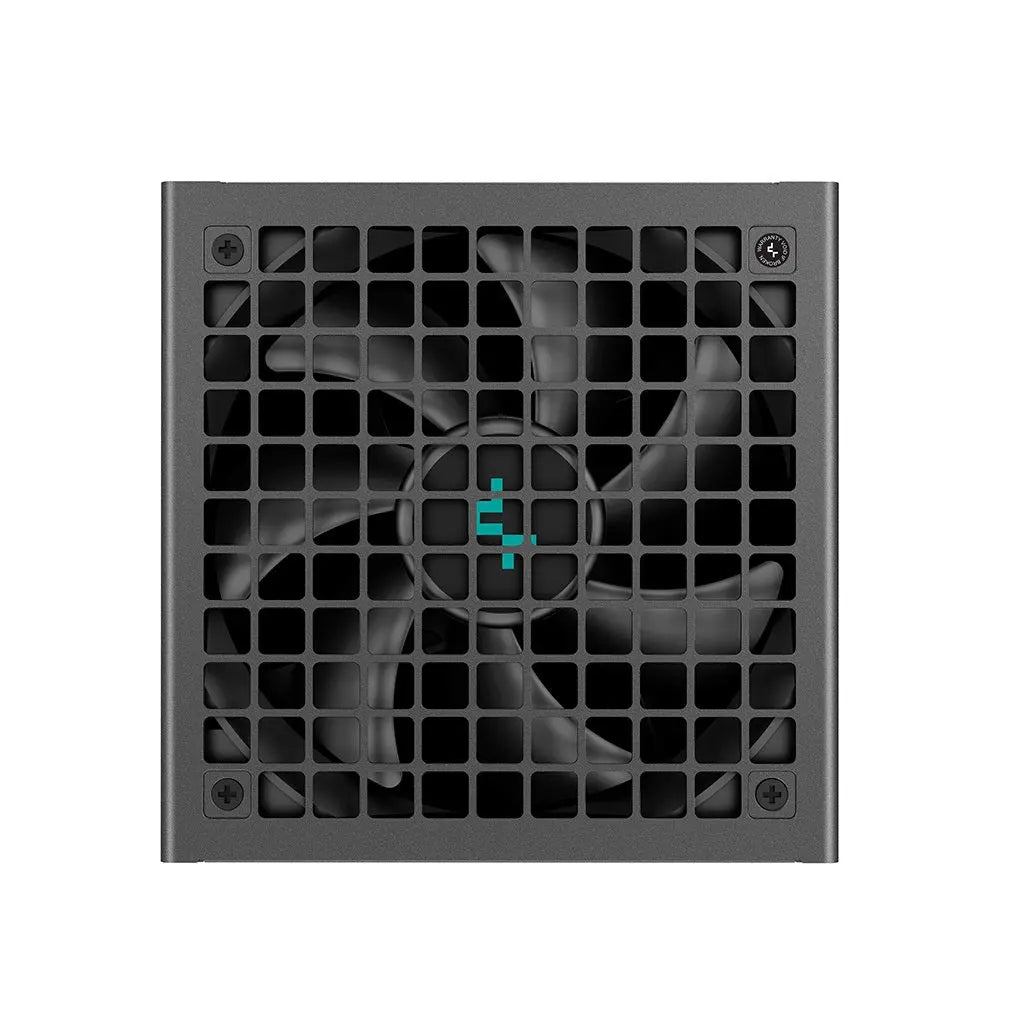

Dynamic Cooling: Includes a 135mm fluid dynamic bearing (FDB) fan that adjusts speed based on cooling needs, ensuring quiet and efficient operation.
| P/N | R-PNC00M-FC0B-IN |
| Type | ATX12V V3.1 |
| Product Dimensions | 150×150×86mm (W x L x H) |
| Efficiency certification | 80Plus Gold |
| Fan Size | 135mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40℃ |
| Regulatory | CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/ RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
| Warranty | 10 Years |
