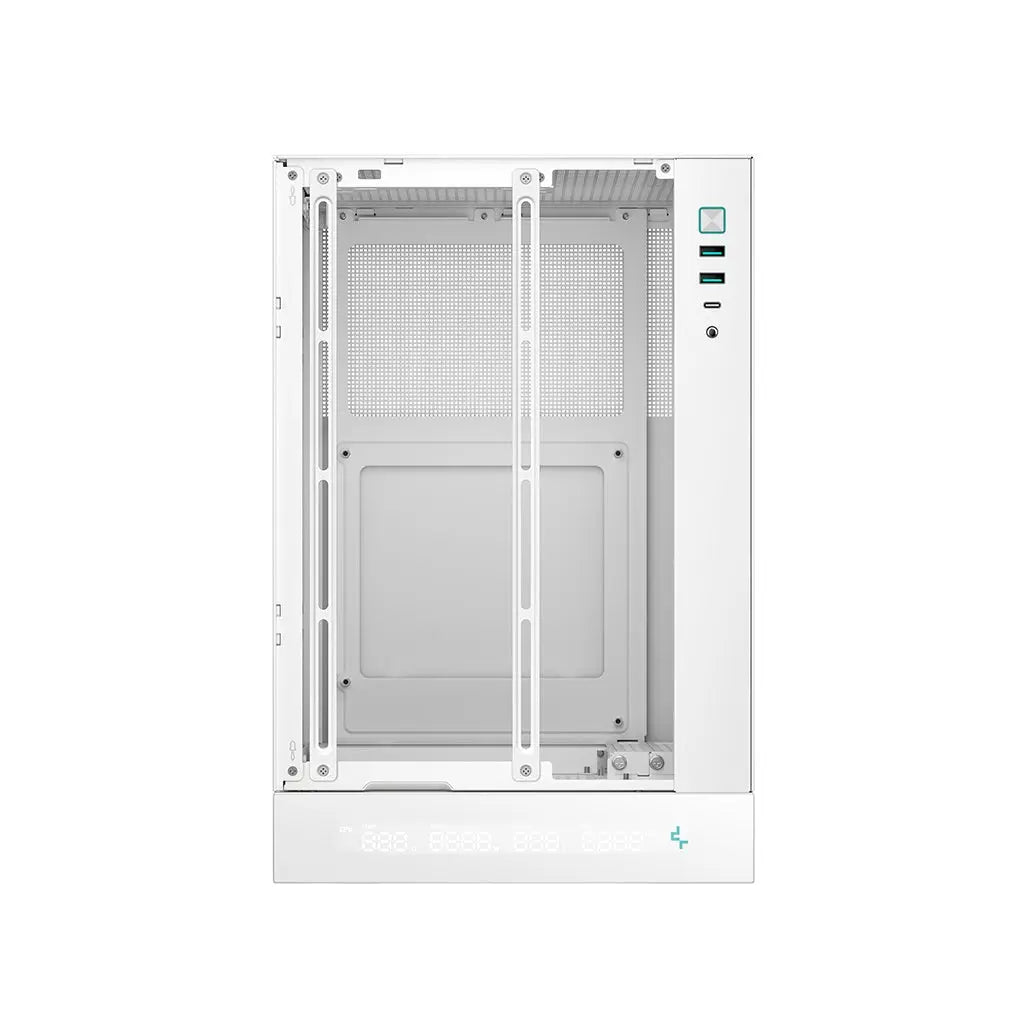

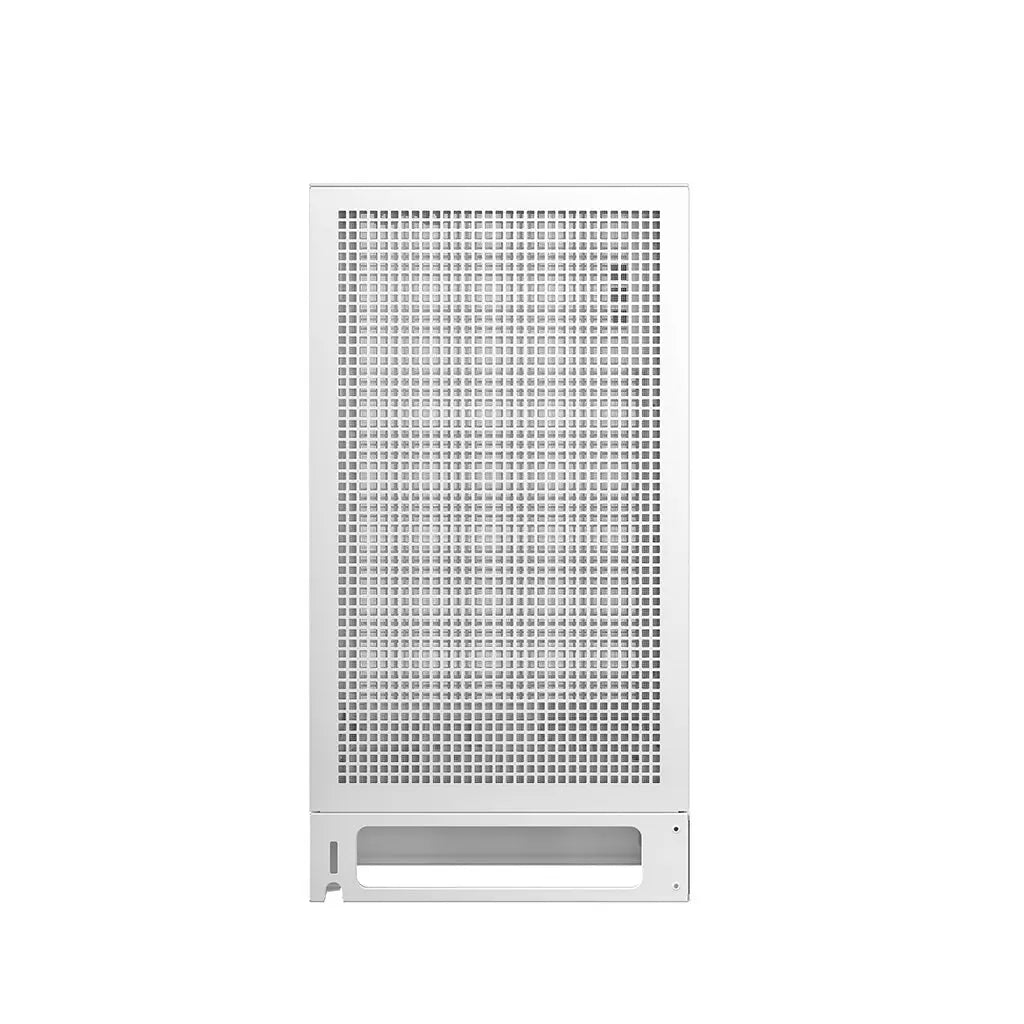

DeepCool CH170 WH Digital Mini ITX Computer Cabinet - White
DeepCool CH170 WH Digital Mini ITX Computer Cabinet - White
Couldn't load pickup availability

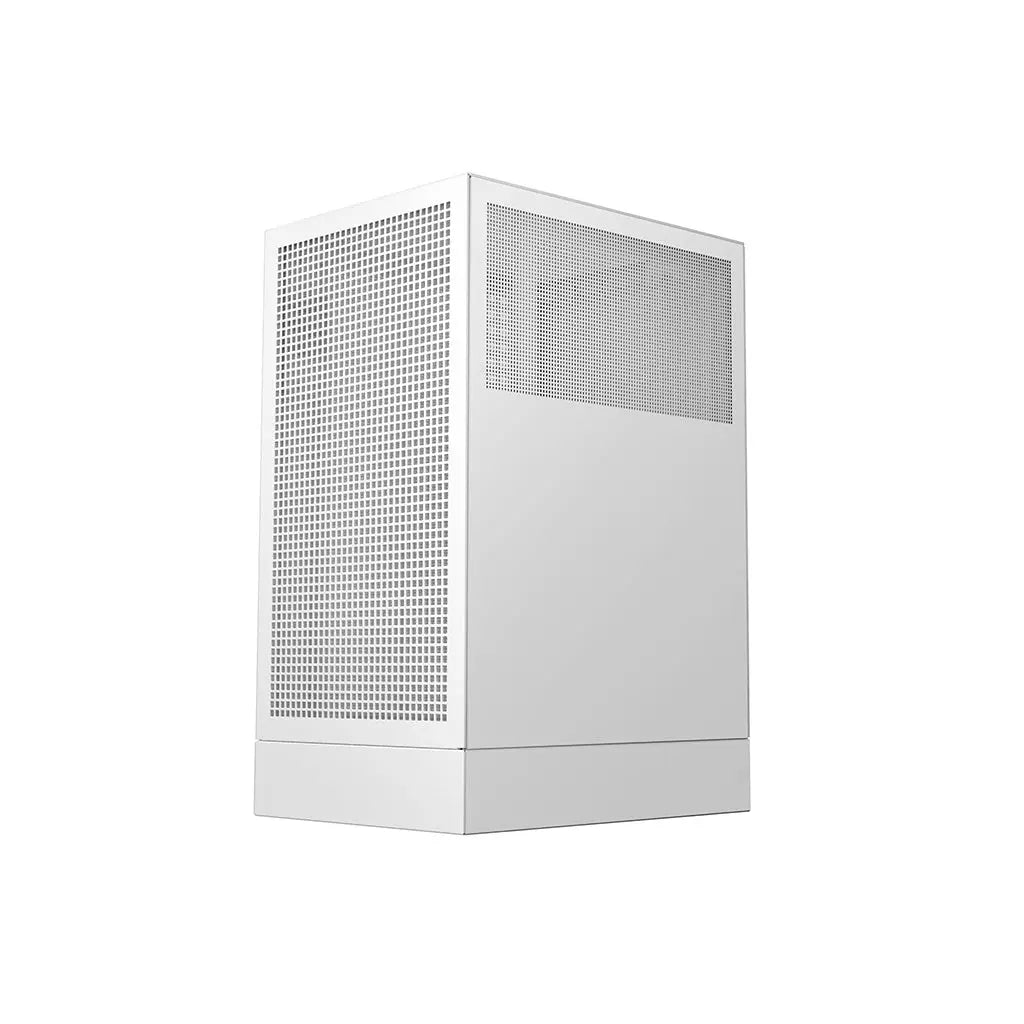

Compact Vertical Design: Features a sleek and space-saving vertical layout, ideal for small-form-factor builds without compromising on performance.

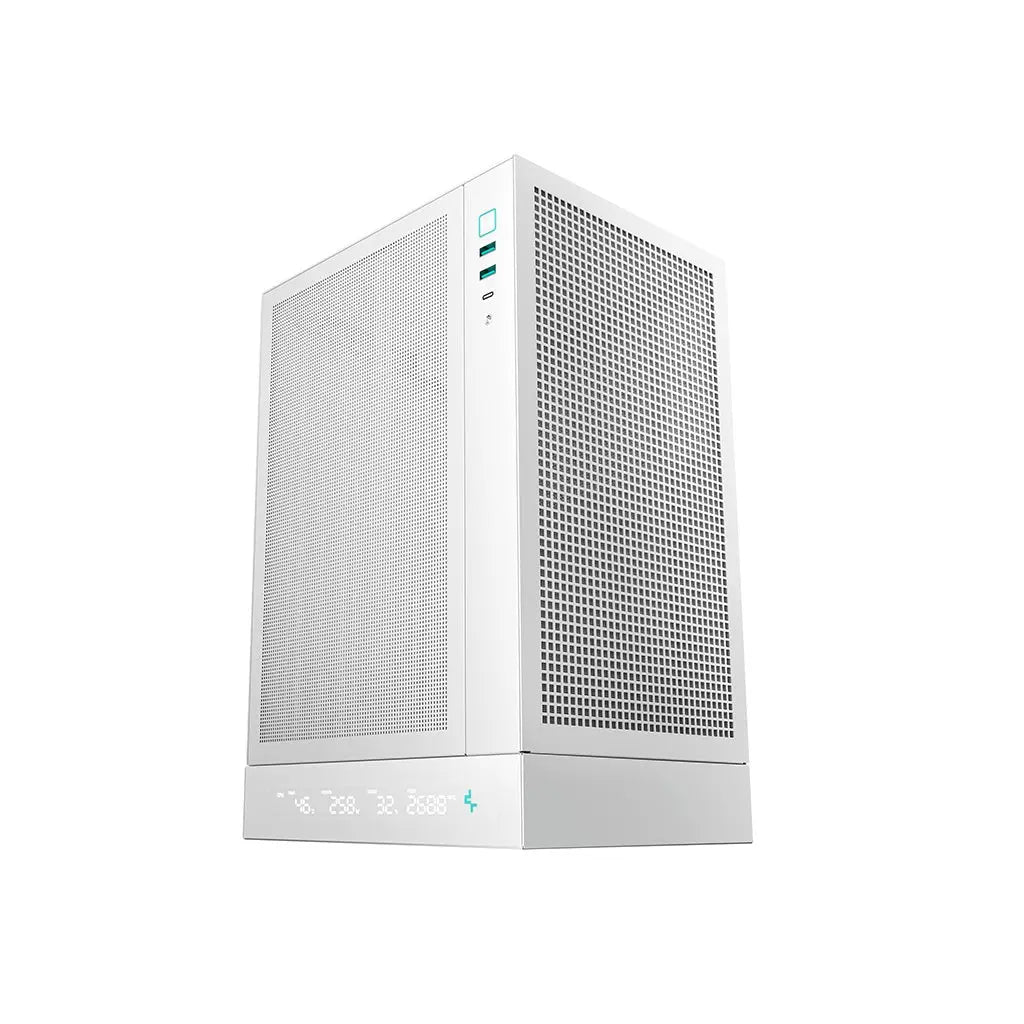

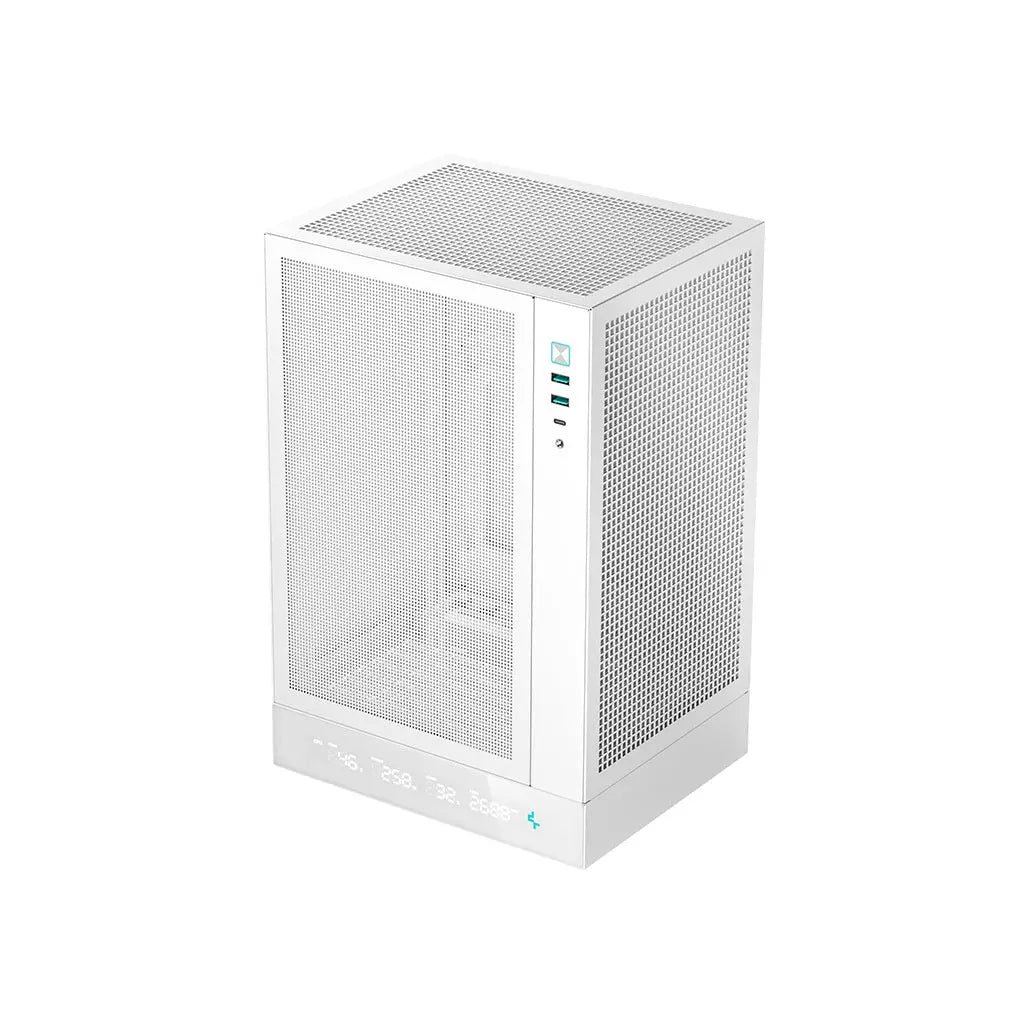

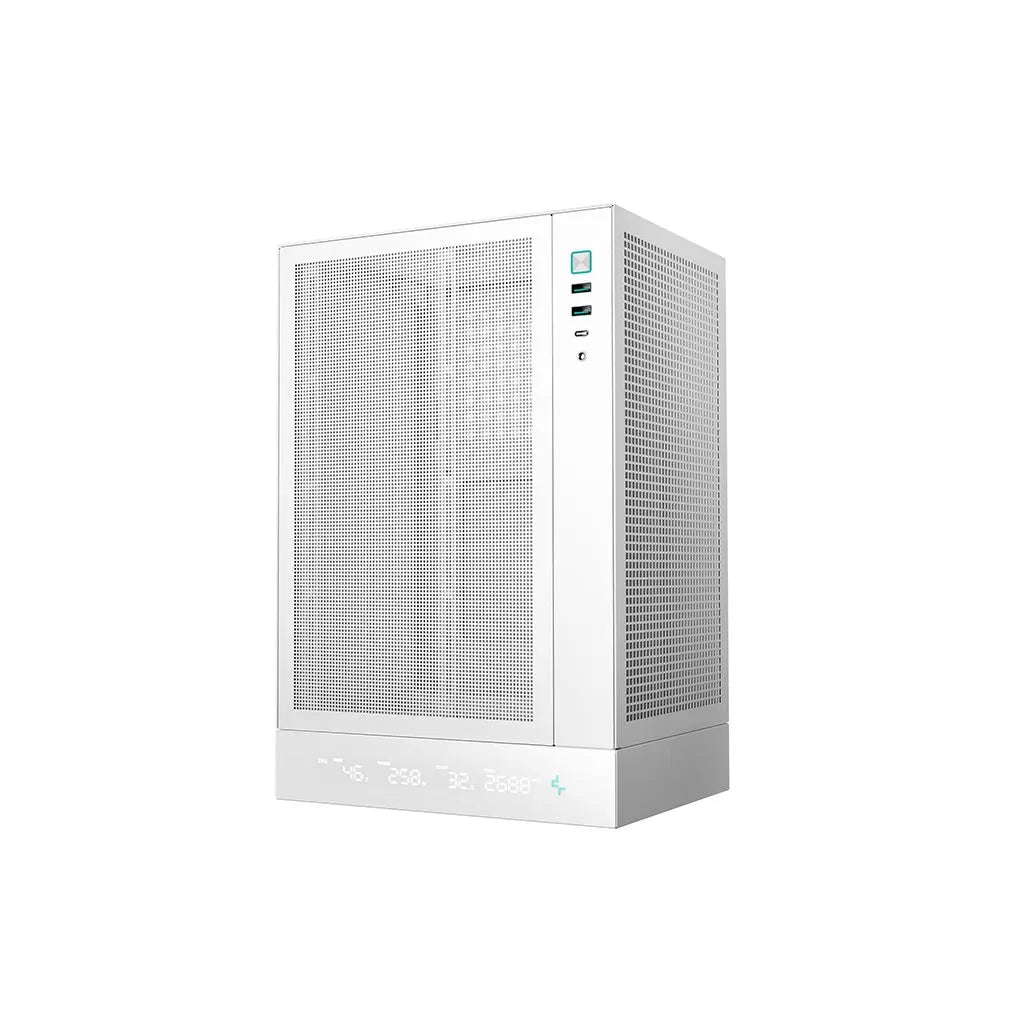

Integrated Digital Display: Includes a front-facing digital screen that provides real-time system information such as CPU, GPU, and PSU temperatures, power consumption, and fan speeds.
High Cooling Compatibility: Supports air coolers up to 172mm in height and liquid cooling radiators up to 240mm, ensuring efficient thermal management.
Versatile Component Support: Accommodates GPUs up to 305mm in length and various power supply types, including ATX, SFX, and SFX-L, for flexible build options.

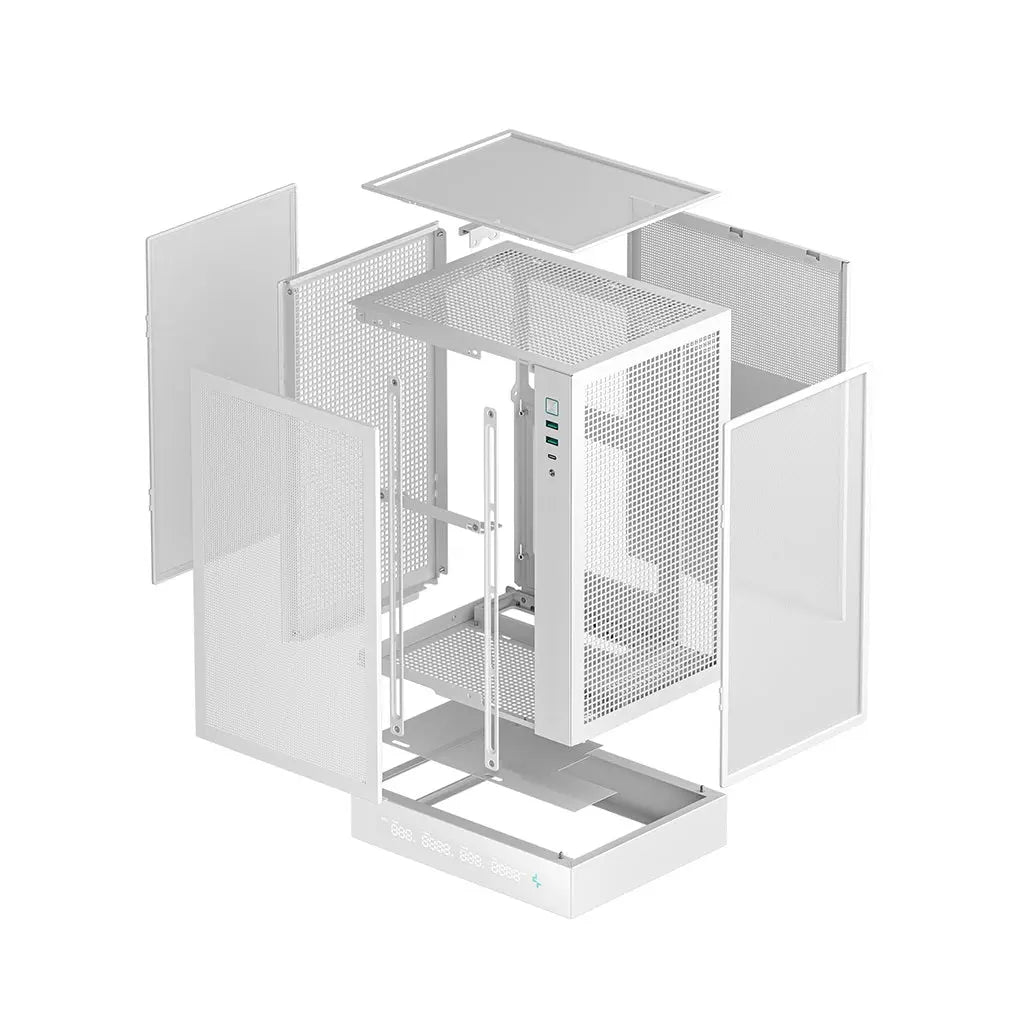

Easy Maintenance: Equipped with removable dust filters and modular fan brackets, making cleaning and component installation hassle-free.
| P/N | R-CH170-WHNPI0D-G-1 |
| Product Dimensions | 250x200x380mm(L×W×H) |
| Net Weight | 3.4Kg |
| Materials | ABS+SPCC |
| Motherboard Support | Mini-ITX |
| Front I/O Ports | USB3.0×2、Audio×1、Gen2 TypeC×1 |
| 3.5" Drive Bays | 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three） |
| 2.5" Drive Bays | 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three） |
| Expansion Slots | 3 Slots |
| Pre-Installed Fans | None |
| Fan Support | Top:1×120 mm Front: NA Rear: 2×120 mm Bottom:1×120 mm Side : 2×120 mm |
| Radiator Support | Side : 240mm |
| CPU Cooler Height Limit | 172mm |
| GPU Size Limit | Length: SFX/SFX-L: 305mm / ATX: 230mm Height: 138mm Width: 65mm (3 Slots) |
| Power Supply Type | ATX PS2（maximum length: 140mm）/ SFX / SFX-L |
| Manufacturer Warranty | 1 Year |
