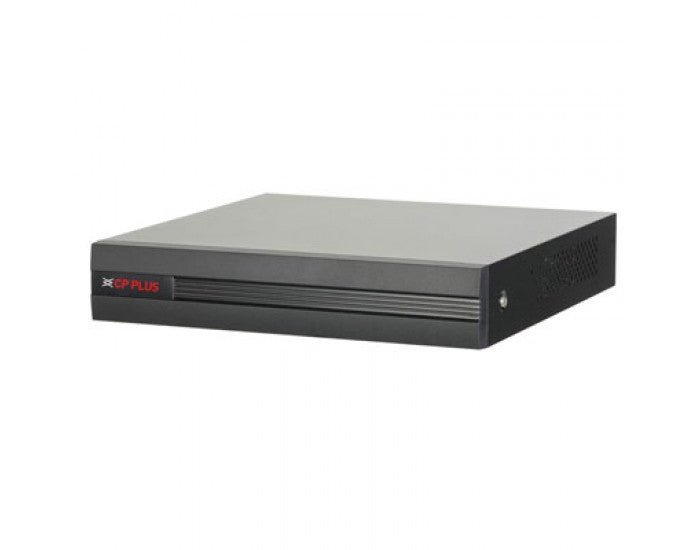

CPPLUS DVR 4CH 5MP CPUVR0401F11C



  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 6 channels IP camera inputs, each channel up to 6MP; Max 32Mbps Incoming Bandwidth
  • Supports Full-channel AI-Coding
  • H.265+/ H.265 dual-stream video compression
  • Up to 4 channels video stream (analog channel) SMD Plus.
  • Support 1 SATA HDD up to 6TB, 2 USB Ports
  • 1 HDMI / 1 VGA Simultaneous Video Output
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro


  • Specifications

    • Processor Embedded processor
    Operating System Embedded LINUX
    IP Camera Input 4+2 channels, each channel up to 6MP
    Two-way Talk Reuse audio in/out, RCA
    User Interface GUI
    Video Output 1 HDMI, 1 VGA
    Video Resolution 1920×1080, 1280×1024, 1280×720
    Video Compression AI Coding/H.265+/H.265/H.264+/H.264
    Video Recording Main stream: All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/ D1/CIF (1 fps–25/30 fps) Sub stream: D1/CIF (1 fps–15 fps)
    Video Display Split 1/4
    Resolution 5M-N; 4M-N; 1080p; 1080N; 720p; 960H; D1; CIF
    Bit Rate 32 kbps–6144 kbps per channel
    Video Channel 4 channel, BNC
    Audio Compression G.711A, G.711U, PCM
    Audio Input 1 channel, RCA
    Audio Output 1 channel, RCA
    Alarm Input N/A
    Alarm Output N/A
    Motion Detection MD Zones: 396 (22 × 18)
    Video Loss Supports
    Smart Phone iPhone, iPad, Android Phone
    Hard Disk 1 SATA port, up to 6TB
    Camera Blank Support
    Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
    Recording Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
    Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
    Backup Mode USB Device/Network
    Playback Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
    Max User Account 128 users
    Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
    Ethernet 1 RJ-45 port (100Mbps)
    Interface Ports 2 USB Ports (USB 2.0)
    Protocols HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search, ONVIF 16.12, CGI Conformant
    Power Supply DC12V/1.5A
    Power Consumption <4W (without HDD)
    Working Temp -10°C ~ +45°C (+14°F ~ +113°F), 0 ~ 90% RH
    Dimension 198 mm × 203.0 mm × 41.5 mm
    Weight 0.55kg (without HDD)
