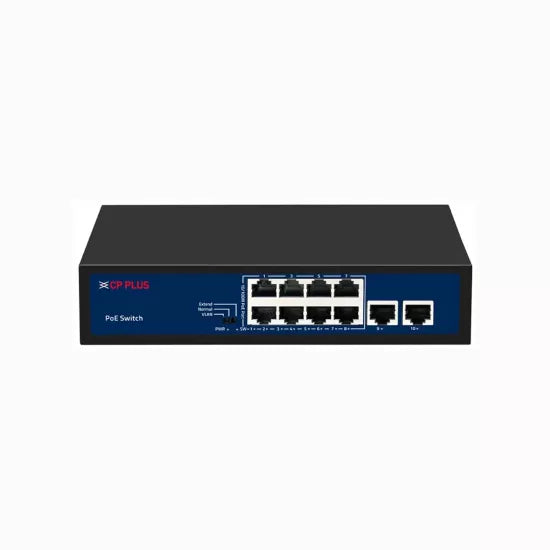

CP Plus 8 Port Poe Switch (8 Normal Poe + 2 Normal Uplink) CP-SAVW-HPU8H2-96

CP Plus 8 Port Poe Switch (8 Normal Poe + 2 Normal Uplink) CP-SAVW-HPU8H2-96

Rs. 1,406.75
Rs. 0.00 Rs. 1,406.75
Sale Sold out

CP Plus 8 Port Poe Switch (8 Normal Poe + 2 Normal Uplink)  CP-SAVW-HPU8H2-96

  • 8, 1000Mbps, RJ45 ports, IEEE802.3u, IEEE802.3ab, IEEE802.3 af
  • Communication standard IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T
  • Surge protection 6KV commo mode, 4KV differential mode
  • PoE Power 96W
  • Easy and safe installation
Specification Details
Network Port 8, 10/100Mbps; RJ45 ports; Max. 30W Output of Single PoE Port
Uplink Ports 2, 10/100Mbps; Transmission Distance: Default: 0-100m
Switch Capacity 2Gbps (non-blocking)
Forwarding Rates 0.1488 Mbps/port
Poe Standard IEEE802.3/802.3u/802.3x
Poe Power Supply 1/2(+), 3/6(-)
Transmission Distance 0-100m/100Mbps or Max. 250m/10Mbps via Cat.5e or more under Extend mode
MAC Address List 2K
Lightning Protection Support
Poe Power Budget 96W
ESD Protection Air discharge: 8KV; Contact discharge: 6KV
Power Consumption <5W
LED Light Light on: Powering; Light off: No Power
Power Source Built-in Power Supply, Input: 100-240V AC, 50/60Hz
Power Light Green light off: Normal/Default mode; Green light on: VLAN mode; Green light flash: Extend mode
Working Temperature -20°C ~50°C
Humidity 10% - 95%, non-condensing
Storage Temperature -45°C ~85°C
Dimension 200mm x 118mm x 44mm
