• CP Plus 8 Port Poe Switch (8 Normal Poe + 2 Giga Uplink + 2 SFP) CP-DNW-GPU8G2F2-96
1 1

BROOT COMPUSOFT LLP

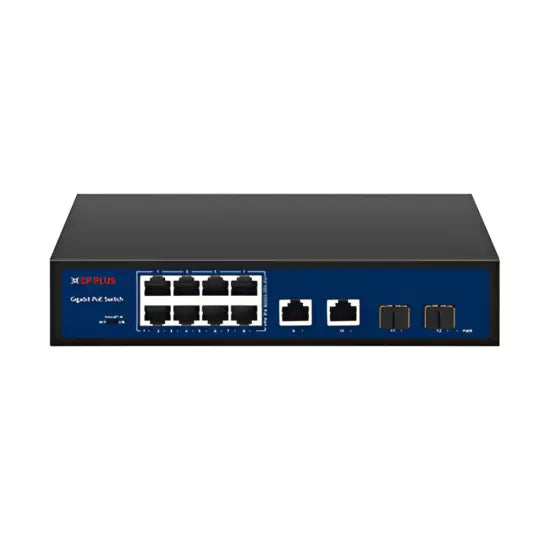

CP Plus 8 Port Poe Switch (8 Normal Poe + 2 Giga Uplink + 2 SFP) CP-DNW-GPU8G2F2-96

CP Plus 8 Port Poe Switch (8 Normal Poe + 2 Giga Uplink + 2 SFP) CP-DNW-GPU8G2F2-96

Rs. 3,536.85
Rs. 0.00 Rs. 3,536.85
Sale Sold out

CP Plus 8 Port Poe Switch (8 Normal Poe + 2 Giga Uplink + 2 SFP) CP-DNW-GPU8G2F2-96

  • 8, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port, 2 x 1000Mbps RJ45 ports 2 x 1000Mbps SFP Port
  • Supports IEEE802.3i/802.3u/802.3x/802.3af/802.3ab/ IEEE 802.3z
  • Transmission Distance: default: 0-100m
  • Easy and safe installation



Specification Details
Switch Capacity 24Gbps Full duplex
Uplink Ports 2 x 1000Mbps RJ45 ports + 2 x 1000Mbps SFP ports
Poe Power Budget 96W
Surge Protection Common mode/RJ45 port: 4KV
Differential mode/RJ45 port: 2KV
Common mode/Power board: 2KV
Differential mode/Power board: 2KV
ESD Air discharge: 8KV; Contact discharge: 6KV
Ethernet Port Light Green light off: Link is disconnected
Green light on: Link is connected
Green light flash: Data Transmitting
Network Port 12
Transmission Distance 0-100m/1000Mbps or Port 7-8 Max. 250m/10Mbps via Cat.5e or more under Extend mode
Poe Ports 8, 1000Mbps; RJ45 ports; Max. 30W Output of Single Poe Port
Poe Power Supply 1/2(+), 3/6(-)
Poe Standard IEEE802.3af, IEEE802.3at
Packet Forwarding Rate 1.488Mpps/port
MAC Address List 2K
Power Source Input: 100-240V AC, 50/60Hz, Built-in Power Supply
Power Consumption <5W
Operating Temperature -10°C ~ 50°C
Humidity 10%-95%, non-condensing
Storage Temperature -40°C ~ 70°C
Dimension 220 x 161 x 44 mm
