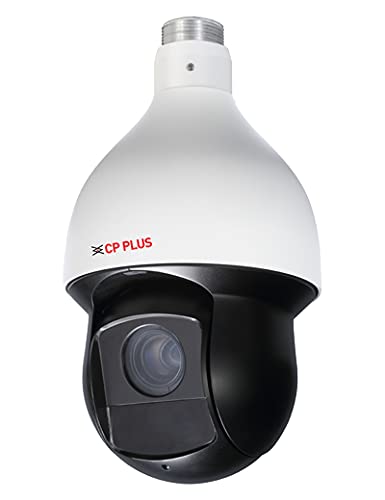

• Cp Plus 4 MP 30x WDR IR Network PTZ Camera- 150Mtr CP-UNP-E3041L15-DAP
1 1

BROOT COMPUSOFT LLP

Cp Plus 4 MP 30x WDR IR Network PTZ Camera- 150Mtr CP-UNP-E3041L15-DAP

Cp Plus 4 MP 30x WDR IR Network PTZ Camera- 150Mtr CP-UNP-E3041L15-DAP

Rs. 48,450.00
Rs. 0.00 Rs. 48,450.00
Sale Sold out

Cp Plus 4 MP 30x WDR IR Network PTZ Camera- 150Mtr CP-UNP-E3041L15-DAP



  • 1/3” 4MP PS CMOS Image sensor (0.84667cm)
  • Max. 25/30fps@4MP
  • Powerful 30x Optical and 16x Digital zoom
  • WDR(120dB), 3D-DNR, Day/Night(ICR), EIS, Defog, ROI, BLC, HLC
  • Up to 300 presets, auto scan, 8 tour, 5 pattern,  auto pan
  • IR Range of 150 Mtr. , IP66, Support PoE+
  • Max 400° /s pan speed, 360° endless pan rotation
  • Built-in 2/1 alarm in/out
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro

  • Specifications

  • Image Sensor 1/3” PS CMOS (0.84667cm)
    Effective Pixels 2592(H) x 1520(V), 4 Megapixels
    Resolution 4MP
    S/N Ratio More than 55dB
    Minimum Illumination Color: 0.01Lux@F1.6; 0Lux@F1.6 (IR on)
    Focal Length 4.5mm~135mm
    White Balance Auto, ATW, Indoor, Outdoor, Manual
    Focus Control Auto / Manual
    Angle of View H: 60° ~ 2.2°
    AGC Control Auto / Manual
    Back Light Compensation BLC / HLC / WDR(120dB)
    Optical Zoom 30x
    Digital Zoom 16x
    Pan Travel 0°~360° endless, Pan Speed: 0.1° ~ 300°/sec
    Tilt Travel -15° ~ 90° auto flip 180°, Tilt Speed: 0.1° ~200°/sec
    Manual Speed Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
    Presets 300
    Preset Speed Pan: 400° /s; Tilt: 300° /s
    Special Features Defog, EIS, IR Range upto 150m, Up to 300 Presets, 5 Pattern, 8 Tour, Auto Pan , Auto Scan
    Power up Action Auto restore to previous PTZ and lens status after power failure
    Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
    Day/Night: IR Cut Filter Auto(ICR) / Color / B/W
    Video Compression H.265+/H.265/H.264+/H.264
    Video Streaming Main stream: 4MP/3MP(1 ~ 25/30fps) , Sub stream1: D1/CIF(1 ~ 25/30fps), Sub stream2: 4MP/1080P/1.3MP/720P/D1/ CIF (1 ~ 25/30fps)
    Motion Detection Support
    ROI Support
    Audio Streaming 1/1 channel In/Out
    Networking RJ-45 (10/100Base-T)
    IVS Tripwire, Intrusion,Abandoned/Missing, Face Detection, Heat Map
    Protocols IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP,RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x, ONVIF, PSIA, CGI
    Alarm 2/1 channel In/Out
    IR Range 150 Mtr.
    Operating Temperature -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
    Smart Phone iPhone, iPad, Android Phone
    Memory Micro SD card 128GB
    Weatherproof Standard IP66
    Dimension Φ186.0(mm) x 309(mm)
    Weight 3.5kg
    Power Source AC24V/3A(±10%), PoE+(802.3at)
    Power Consumption 13W,23W (IR on)

    •
