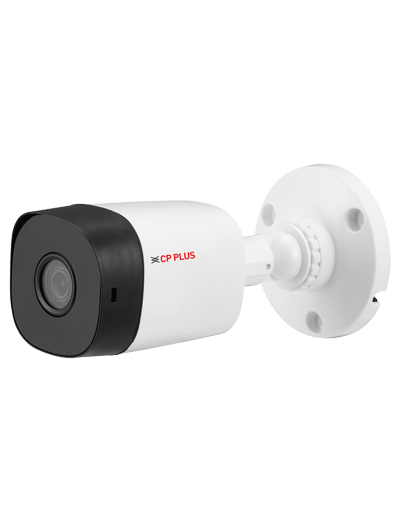

CP Plus 1MP Full HD IR Bullet Camera - 20Mtr CP-USC-TC10PL2-V3

CP Plus 1MP Full HD IR Bullet Camera - 20Mtr CP-USC-TC10PL2-V3

Rs. 918.00
Rs. 0.00 Rs. 918.00
Sale Sold out

CP Plus 1MP Full HD IR Bullet Camera - 20Mtr CP-USC-TC10PL2-V3

  • 1/2.7” 1MP PS CMOS Image Sensor (6.858 cm)
  • Max 30fps@1MP
  • DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC
  • 3.6mm fixed lens (2.8mm optional)
  • IR Range of 20 Mtrs., Smart IR, IP67
  • OSD Menu, control over coaxial cable, 2D-DNR
  • HD, SD and Two Analog format Output switchable

  • Specifications

  • Image Sensor 1/2.7” 1MP PS CMOS Image Sensor (6.858 cm)
    Minimum Illumination 0.04Lux/F2.4, 30IRE, 0Lux IR on
    Shutter Speed PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
    White Balance Auto / Manual
    Gain Control (AGC) Auto / Manual
    ICR Auto (ICR)/Manual
    Lens 3.6mm (2.8mm optional)
    Max Aperture F2.4
    Lens Type Fixed lens/ Fixed Iris
    Close Focus Distance 800mm (31.50'')
    Mount Type Board-in
    S/N Ratio More than 65dB
    DORI Distance Detect: 2.8mm: 51m; 3.6mm: 51m; Observe: 2.8mm: 20m; 3.6mm: 20m; Recognize: 2.8mm: 10m; 3.6mm: 10m; Identify: 2.8mm: 5m; 3.6mm: 5m
    Back Light Compensation BLC/ DWDR
    Video Streaming 1MP@25/30fps
    Video Output 1-channel BNC high definition video output/ CVBS video output (Can switch)
    Angle of View H: 93°(57.6°) V: 48°(32°)
    IR IR Range of 20 Mtr., Smart IR
    OSD Multi-language
    Casing Plastic
    Operating Temperature -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
    Power Source 12V DC ±30%
    Power Consumption Max 2.7W (12V DC, IR on)
    Weatherproof Standard IP67
    Dimension 70mm × 70mm x 149mm
    Weight 0.14Kg.

    •
