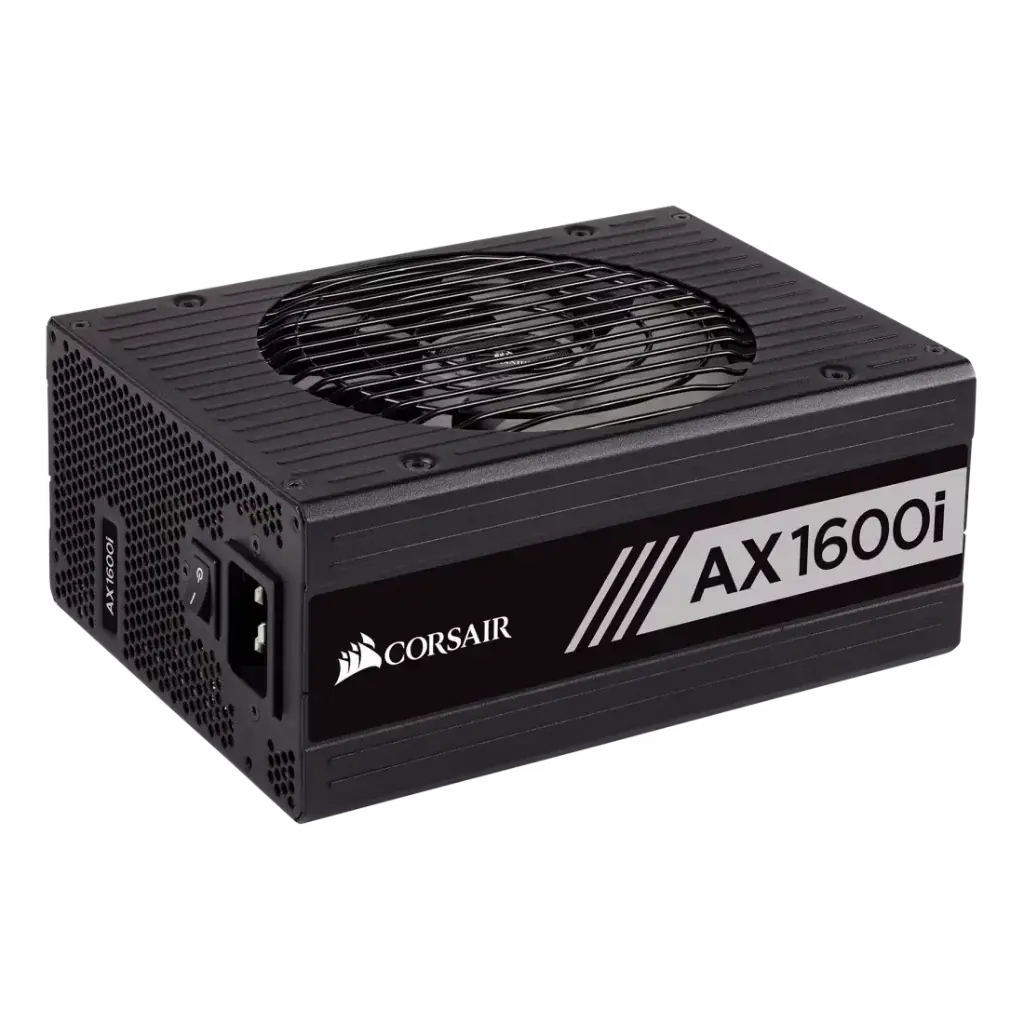

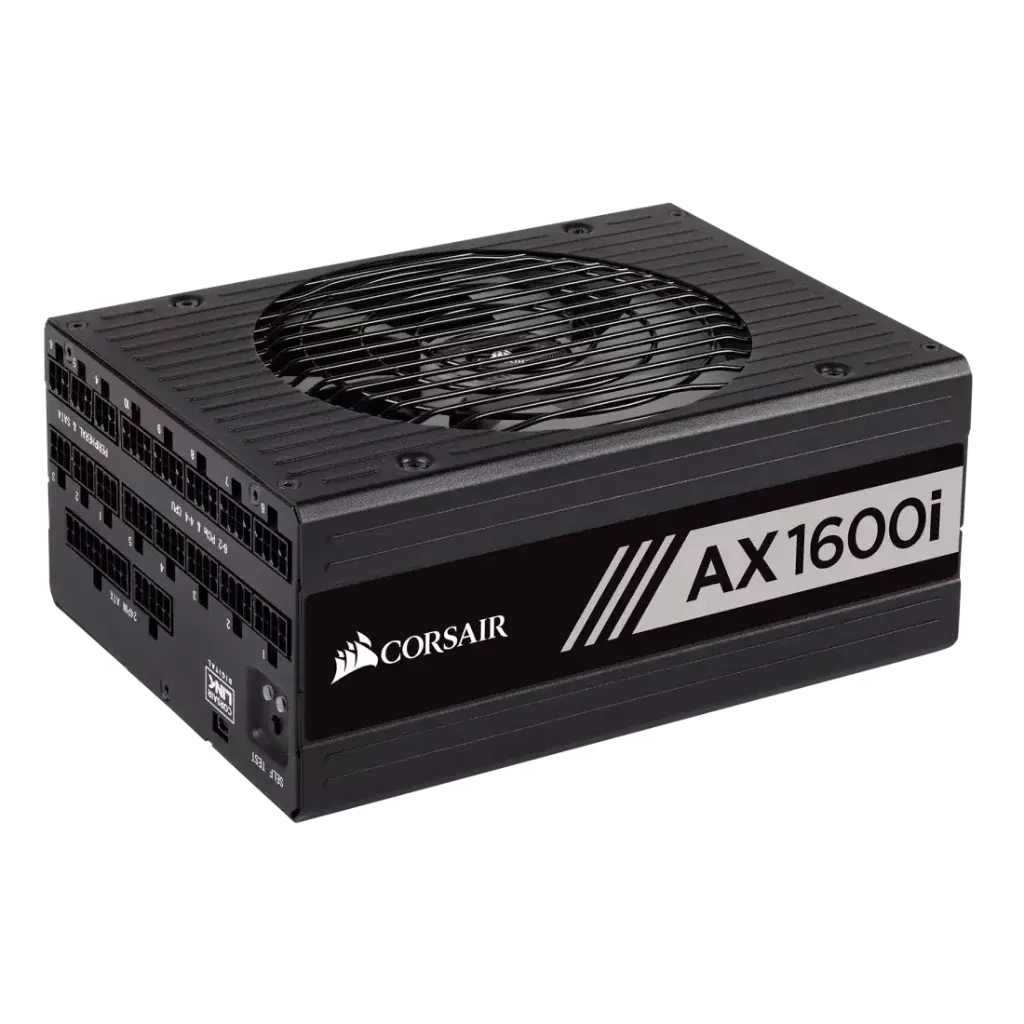

Corsair AX1600i Digital ATX Power Supply 1600W Fully Modular Power Supply
Corsair AX1600i Digital ATX Power Supply 1600W Fully Modular Power Supply
Couldn't load pickup availability
1600W of Continuous Power: Delivers ultra-stable, 80 PLUS Titanium efficient power, ensuring reliable performance for high-demand systems.
Advanced Components: Utilizes 100% 105°C Japanese electrolytic capacitors and state-of-the-art gallium nitride (GaN) transistors for superior efficiency and durability.

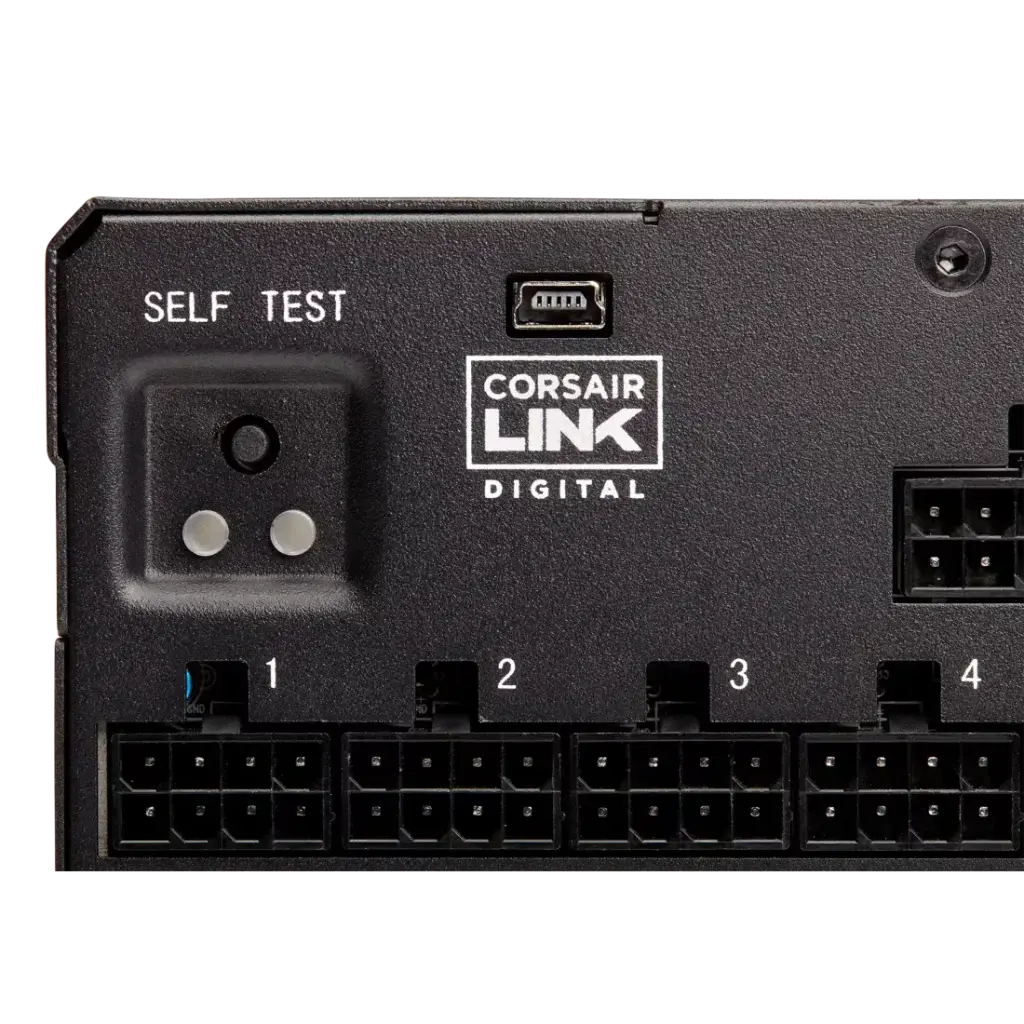

Digital Monitoring and Control: Integrated with Corsair iCUE software for in-depth voltage and performance monitoring, as well as system-wide RGB lighting synchronization.

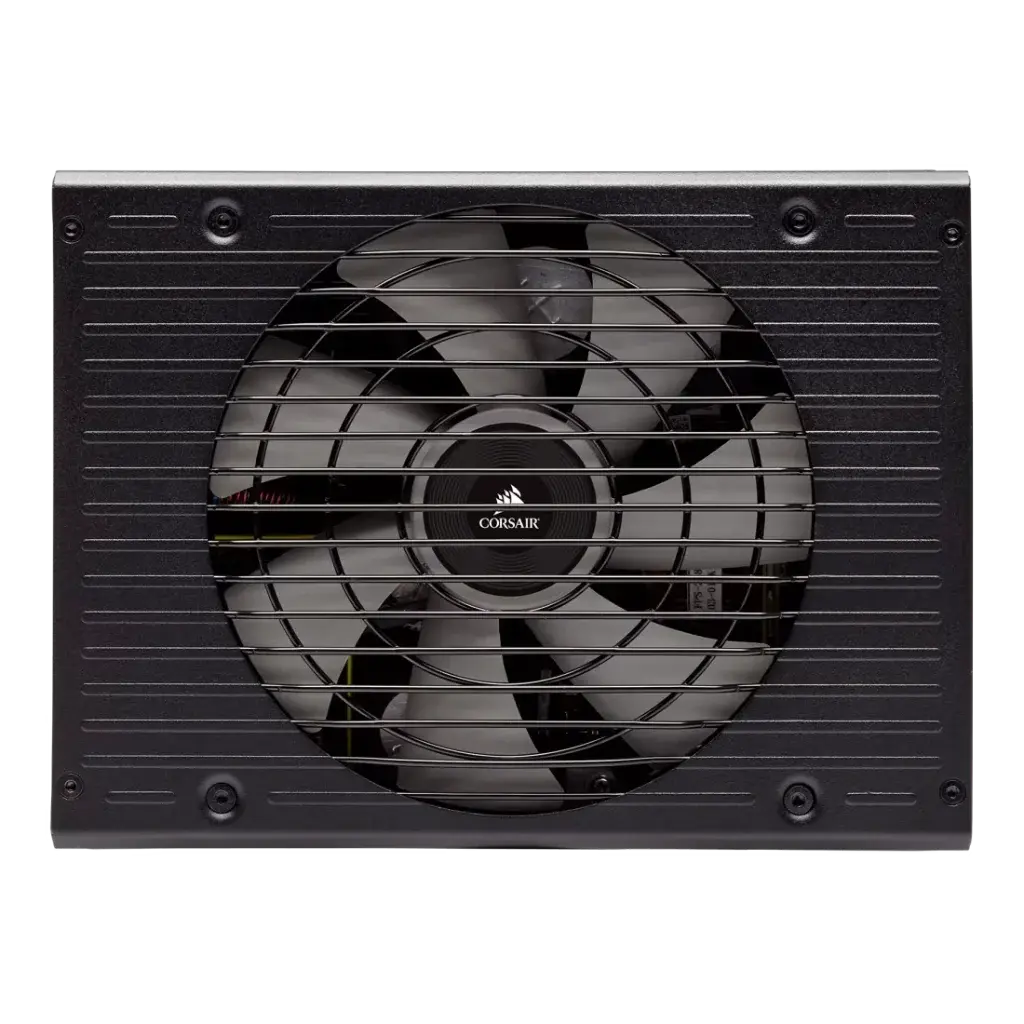

Quiet Operation: Features a 140mm patented fluid dynamic bearing cooling fan and Zero RPM Fan Mode for near-silent operation at low to medium loads.

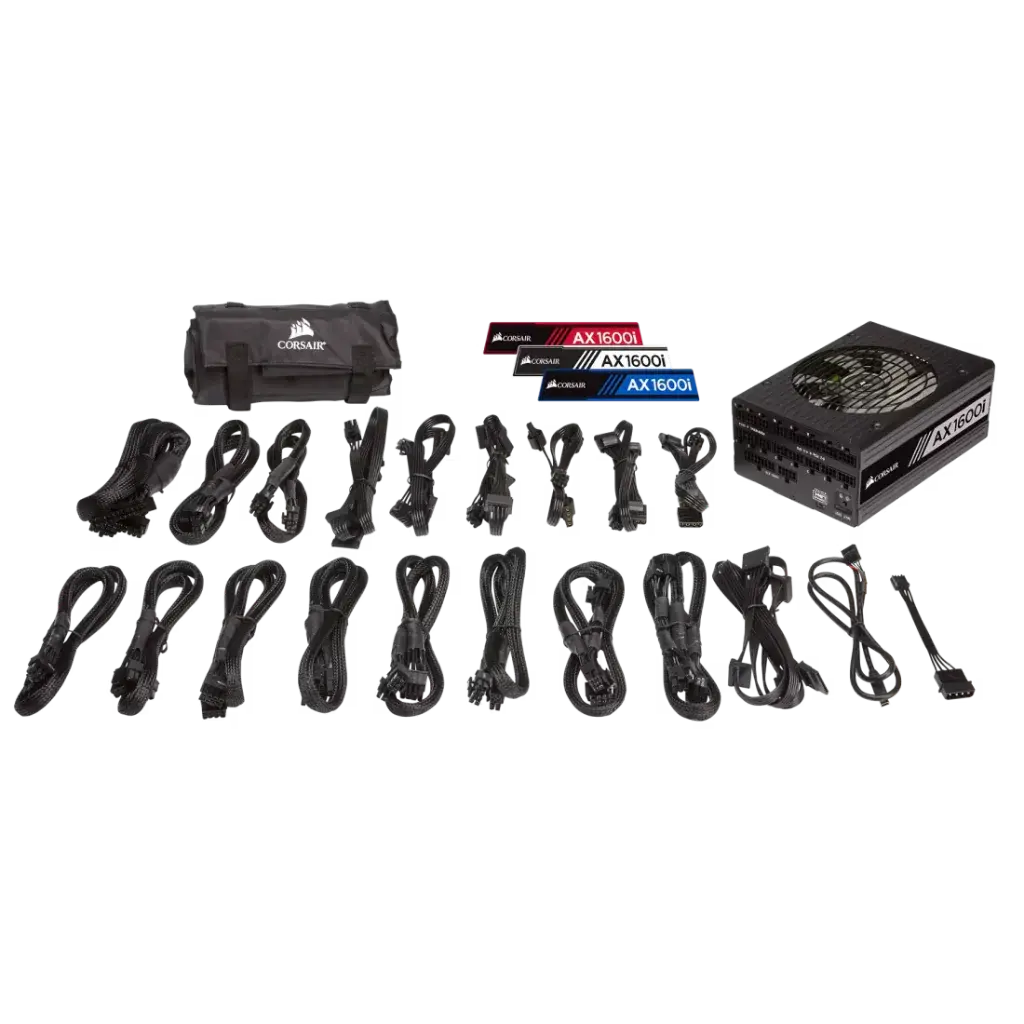

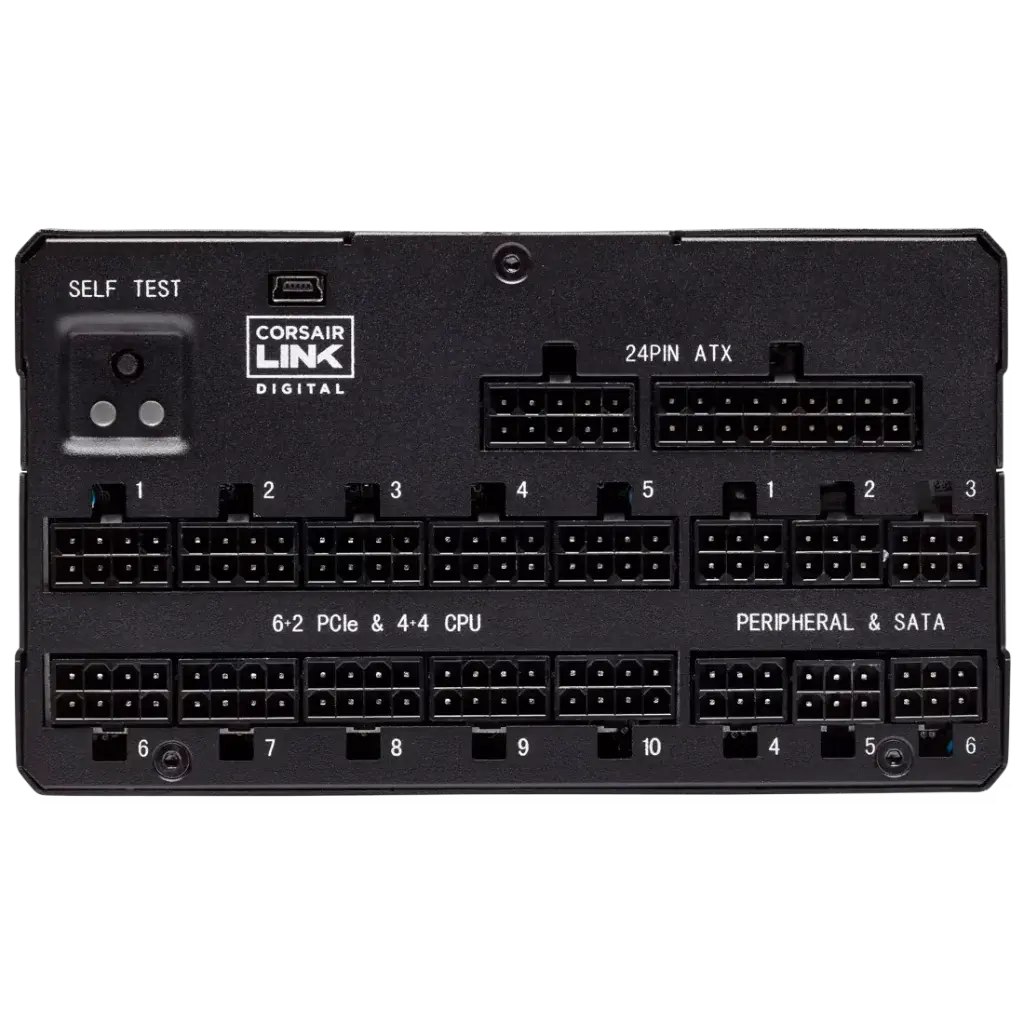

Fully Modular Design: Allows for easy installation and cable management, with only the necessary cables used, reducing clutter and improving airflow.
| Model | CP-9020087-NA |
| Special Technology | DSP, GaN Totem Pole PFC |
| PATA Connector | 9 |
| Protections | OVP (Over Voltage) | UVP (Under Voltage) | SCP (Short Circuit) | OTP (Over Temp) | OPP (Over Power) |
| EPS Connector | 2 |
| SATA Connector | 16 |
| Fan Bearing Technology | Fluid Dynamic Bearing |
| Modern Standby | No |
| Dimensions | 150mm x 86mm x 200mm |
| Modular | Fully |
| PSU Compatibility | Conforms to ATX12V v2.4 and EPS 2.92 standards, and is backward compatible with the ATX12V 2.2 and ATX12V 2.01 standards | Delivers 1600 watts of co |
| Intel C6C7 Sleep State Compat | Yes |
| Cable Type | Low-Profile, All Black |
| Floppy Connector | 2 |
| PCIe Connector | 10 |
| Zero RPM Mode | Yes |
| PSU Form Factor | ATX |
| Single Multiple 12V Rail Toggl | Yes |
| Multi GPU Ready | Yes |
| Fan Size MM | 140mm |
| Continuous Power W | 1600 Watts |
| ATX Connector | 1 |
| ATX12V Version | v2.4 |
| MTBF Hours | 100,000 hours |
| 80 PLUS Efficiency | Titanium |
| Warranty | 10 Year |
| Weight | 5.46 |
