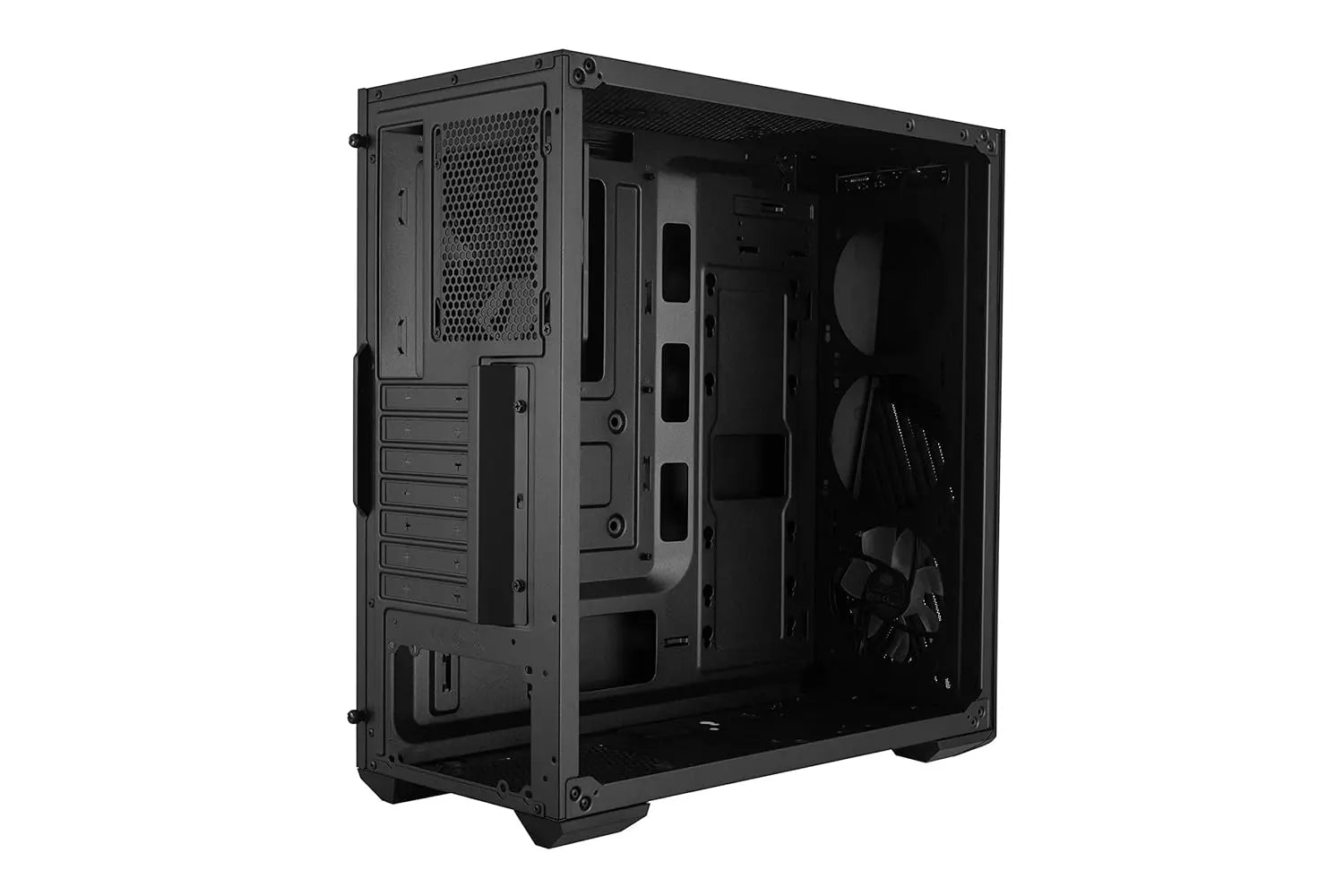

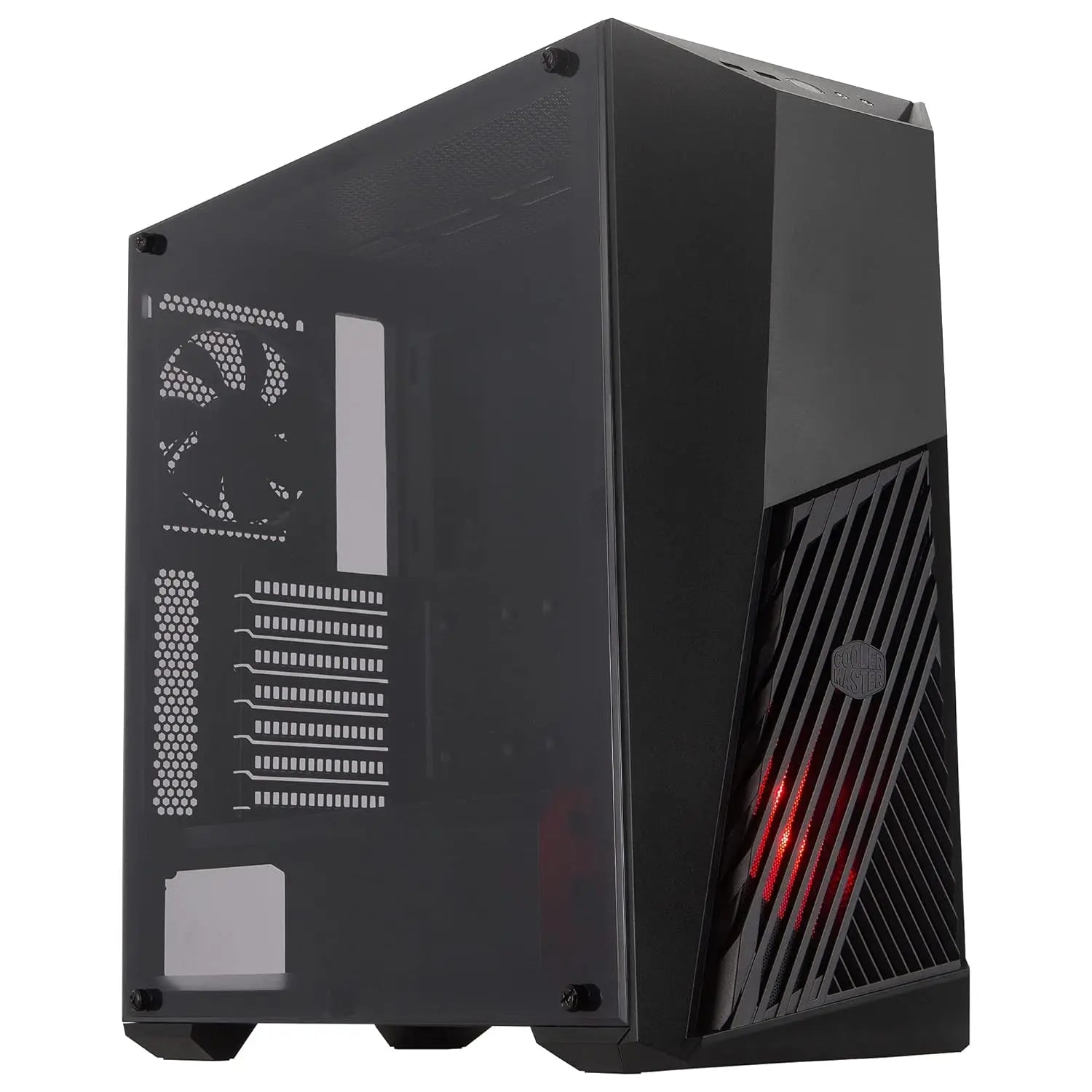

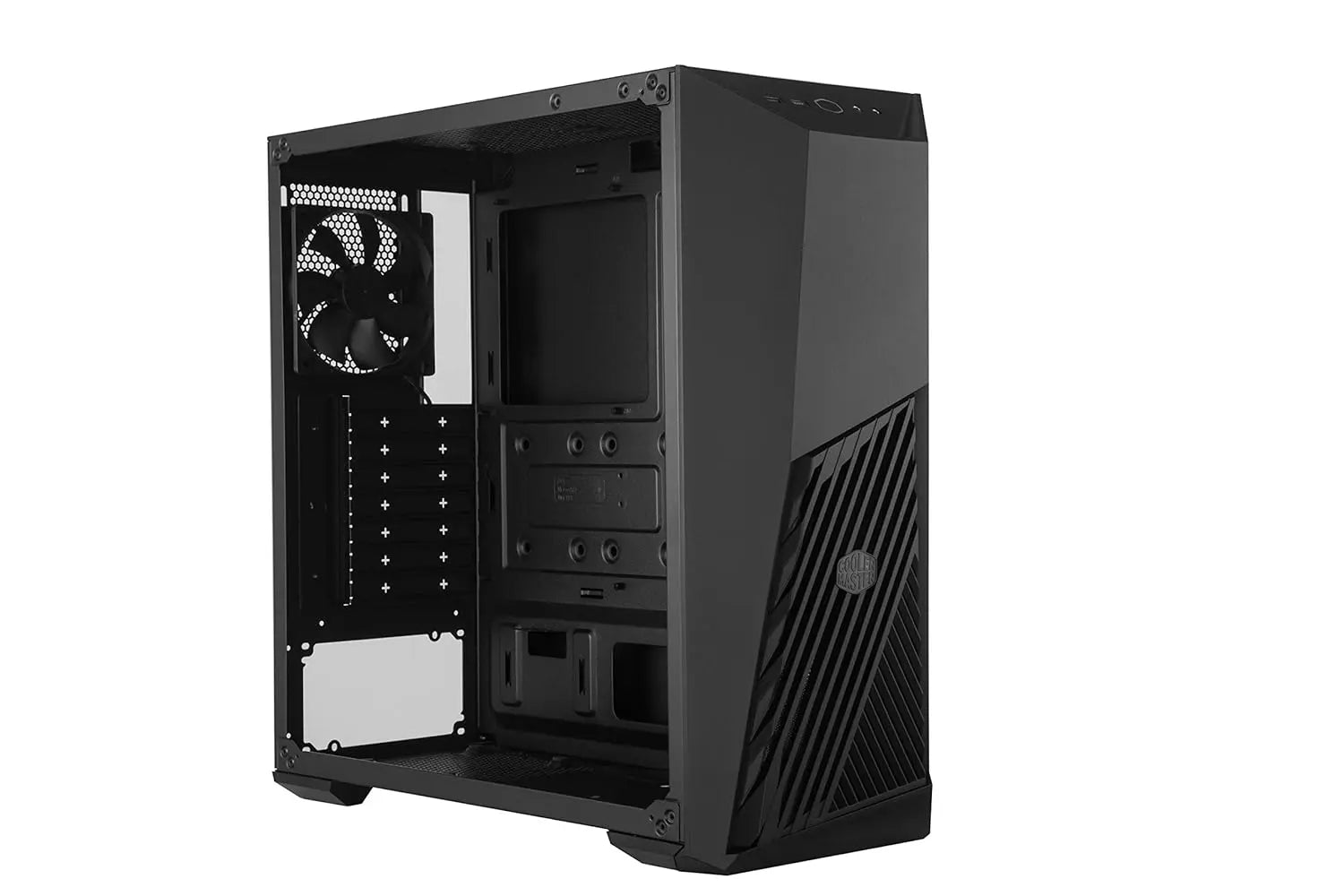

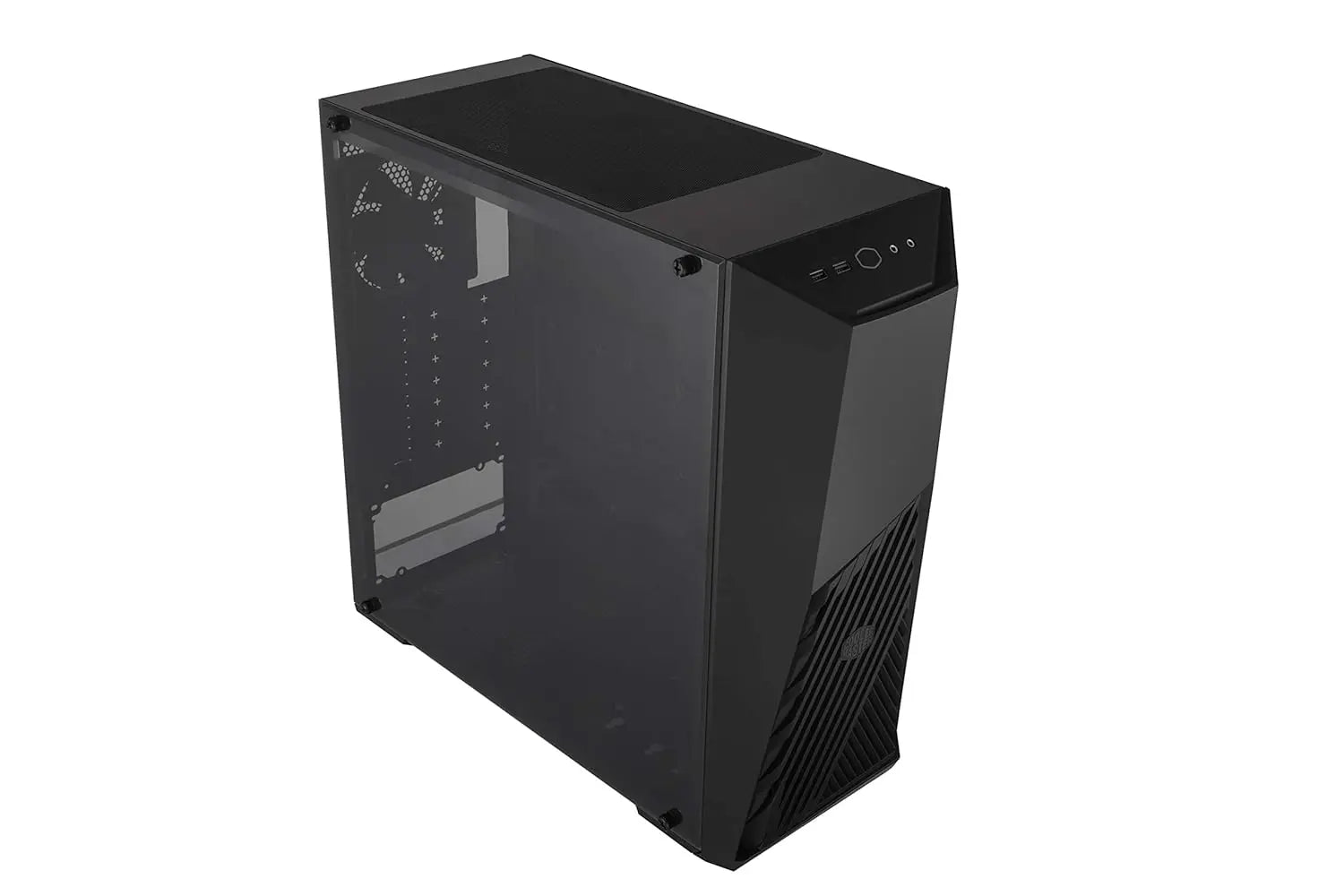

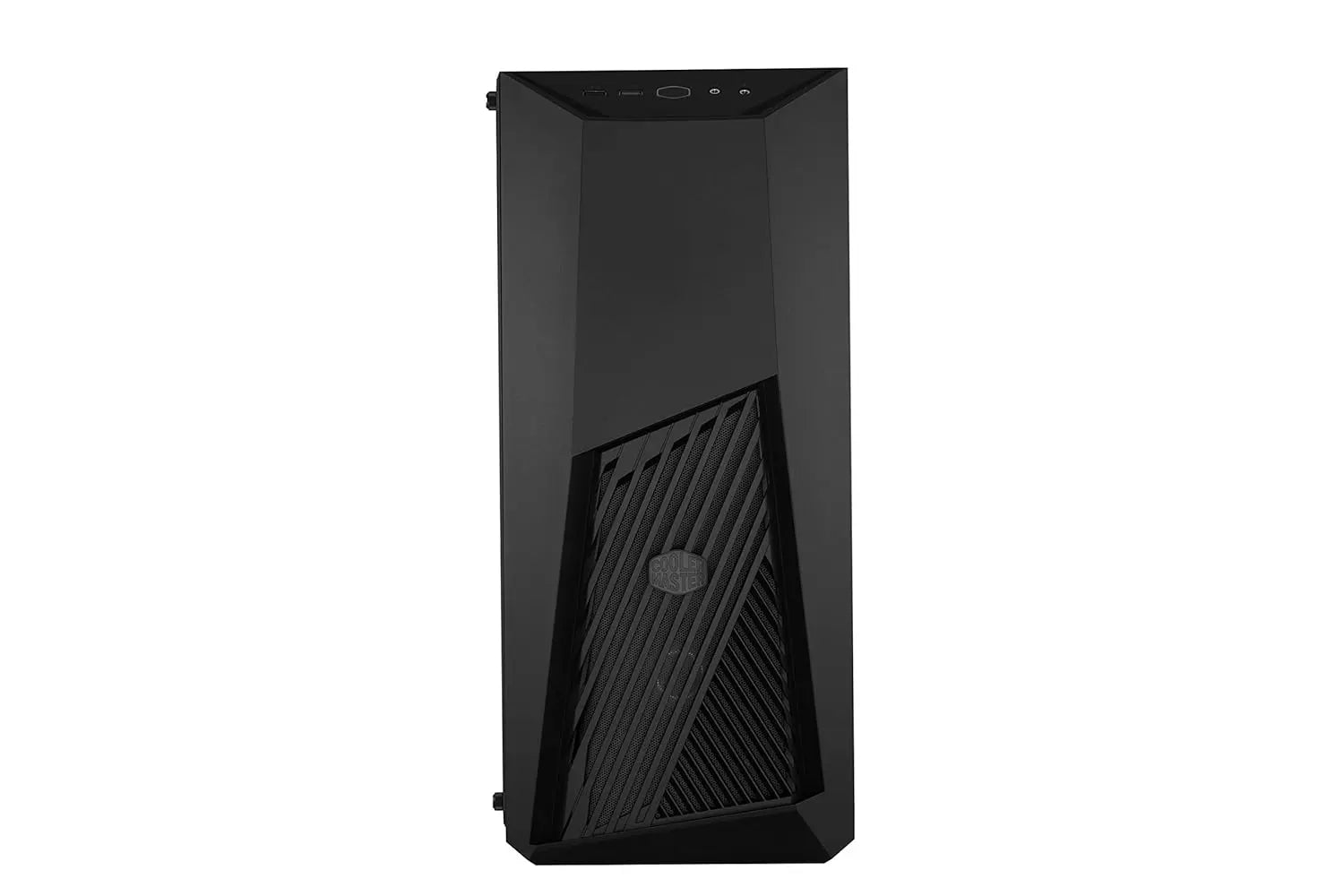

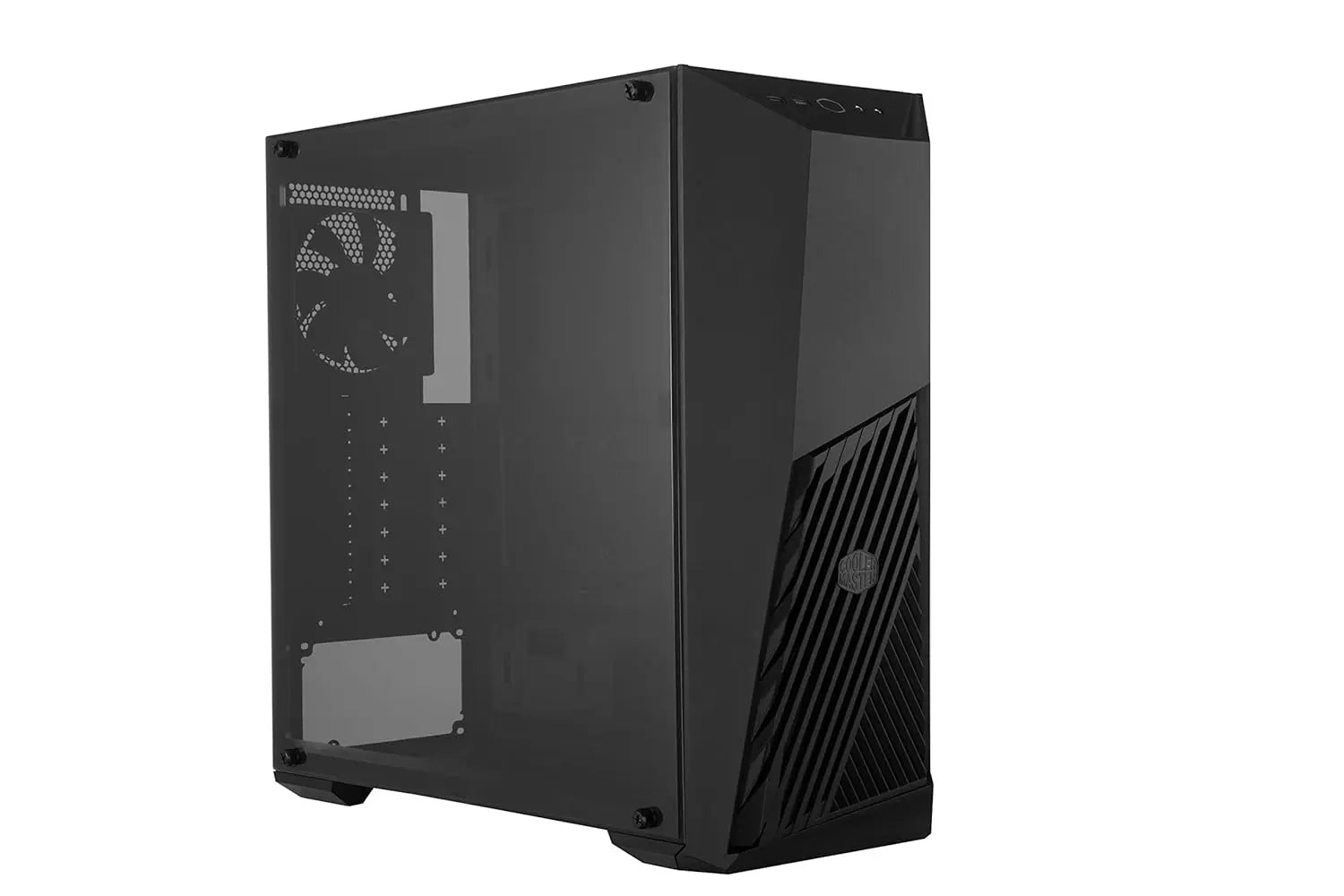

Cooler Master MasterBox K501L RGB Mid Tower Gaming Cabinet
Cooler Master MasterBox K501L RGB Mid Tower Gaming Cabinet
Couldn't load pickup availability
Cooler Master MasterBox K501L RGB Mid Tower Gaming Cabinet
Cooler Master Masterbox K501L RGB (ATX) Mid Tower Black Cabinet With Tempered Side Panel MCB-K501L-KGNN-SR1
Overview :
Angled Ventilation – The aggressive, angled front panel ventilation dons sharp design elements and striking lines, signifying the K501L’s competitive character.
Illuminated Fan & Power Button – Paired with lighting on the power button, an illuminated fan glows through the angled ventilation; a testament to its gamer core.
Top Panel Ventilation – For increased thermal performance, the top panel is ventilated to support cooling components and filtered to protect against dust.
Cooling Support – Support for up to 6 fans and top, front, and rear water cooling ensure a high capacity for thermal performance.
Edge-to-Edge Tempered Glass Side Panel – Showcase your build through the 4mm tempered glass side panel.
Clean Routing Space – There is 19~27mm width of space behind the motherboard tray to efficiently manage and organize cables.
Versatile Component Support – Clearances of 410mm for the graphics card, 165mm for CPU coolers, and 200mm for PSUs offer room for powerful builds and future upgrades.
Click here Official Link of : Cooler Master MasterBox K501L RGB Mid Tower Gaming Cabinet
Click here PDF File : https://cdn.shopify.com/s/files/1/0075/7753/4528/files/501_rr.pdf?v=1753701446
Specification :
| Model | MCB-K501L-KGNN-SR1 |
| Exterior Color | Black |
| Materials | |
| Exterior | Plastic |
| Side Panel | Tempered |
| Dimensions (L x W x H) | |
| incl. Protrusions | 499.5mm x 217mm x 468.5mm |
| excl. Protrusions | 428.7mm x 205mm x 458.5mm |
| Volume (Liters excl. Protrusions) | 50.8L |
| Motherboard Support | Mini-ITX，Micro-ATX，ATX |
| Expansion Slots | 7 |
| Drive Bays | |
| 5.25“ ODD | 0 |
| 3.5″ HDD | 2 (Max.3) |
| 2.5” SSD | 2 (Max.3) |
| I/O Panel | |
| USB Ports | USB 3.2 Gen1 x 1 (USB 3.0) USB 2.0 x 1 |
| Audio In / Out | 1 x 3.5mm Audio Jack 1 x 3.5mm Mic Jack |
| Other | N/A |
| Pre-installed Fan(s) | |
| Top | N/A |
| Front | 120mm x 1 (RGB ) |
| Rear | 120mm x 1 （Black ） |
| Bottom | N/A |
| Fan Support | |
| Top | 120mm x 2，140mm x 2 |
| Front | 120mm x 3，140mm x 2 |
| Rear | 120mm x 1 |
| Bottom | N/A |
| Radiator Support | |
| Top | 120mm, 240mm |
| Front | 120mm, 140mm，240mm, 280mm，360mm |
| Rear | 120mm |
| Bottom | N/A |
| Clearances | |
| CPU Cooler | 165mm |
| Power Supply | 390mm (without radiator and HDD installed) 200mm (with radiator and HDD installed) |
| Graphics Card | 410mm (without radiator installed) 360mm (with radiator installed) |
| Cable Routing | |
| Behind MB Tray | 19～27mm |
| Dust Filters | Top, Front, Bottom |
| Power Supply Support | ATX PS2 |
| Warranty | 3 Years |
