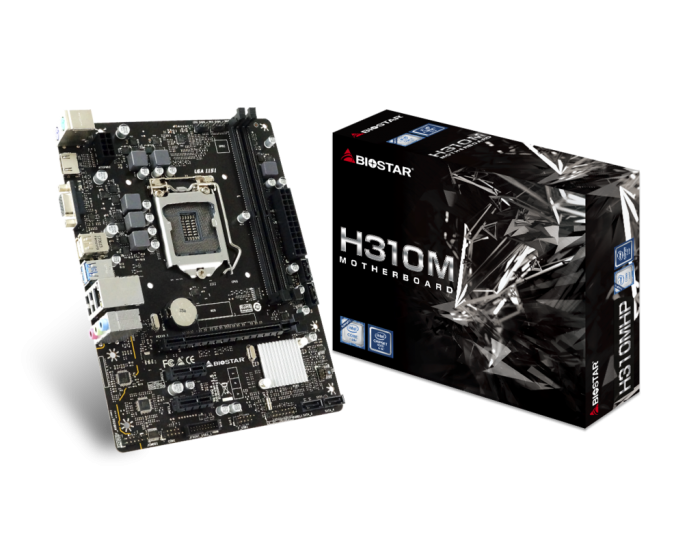

Biostar H310MHP DDR4 Motherboard For Intel 8th | 9th Gen

Biostar H310MHP DDR4 Motherboard For Intel 8th | 9th Gen

Rs. 4,405.55
Rs. 0.00 Rs. 4,405.55
Sale Sold out

Biostar H310MHP DDR4 Motherboard For Intel 8th | 9th Gen

Component Description
Chipset Intel H310
CPU SUPPORT Socket 1151 for 9th / 8th Gen Intel Core, Pentium and Celeron processors
Maximum CPU TDP (Thermal Design Power): 95Watt
* Please refer to for CPU support list.
MEMORY Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666
2x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
STORAGE 4 x SATA III Connectors (6Gb/s)
* Specifications vary by CPU types
LAN RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC887
7.1 Channels, High Definition Audio
Support HD Audio
USB 4x USB 3.2(Gen1) port (2 on rear I/Os and 2 via internal header)
6x USB 2.0 port (4 on rear I/Os and 2 via internal header)
EXPANSION SLOT 2x PCIe 2.0 x1 Slot
1x PCIe 3.0 x16 Slot
* Specifications vary by CPU types
REAR I/O
  • 1x PS/2 Mouse Port
  • 1x PS/2 Keyboard Port
  • 1x HDMI Port
  • 1x VGA Port
  • 1x LAN Port
  • 4x USB 2.0 Port
  • 2x USB 3.2(Gen1) Port
  • 3x Audio Jack
INTERNAL I/O
  • 4x SATA III Connector
  • 1x USB 2.0 Header (each header supports 2 USB 2.0 ports)
  • 1x USB 3.2(Gen1) Header (each header supports 2 USB 3.2(Gen1) ports)
  • 1x 8-Pin Power Connector
  • 1x 24-Pin Power Connector
  • 1x CPU Fan Connector
  • 1x System Fan Connector
  • 1x Front Panel Header
  • 1x Front Audio Header
  • 1x Clear CMOS Header
  • 1x COM Port Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 226mm x 171mm (W x L)
OS SUPPORT Supports Windows 7/ 10(64bit) / 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE BullGuard
ACCESSORIES
  • 2 x SATA Cable
  • 1 x I/O Shield
  • 1 x DVD Driver
  • 1 x Quick Guide
