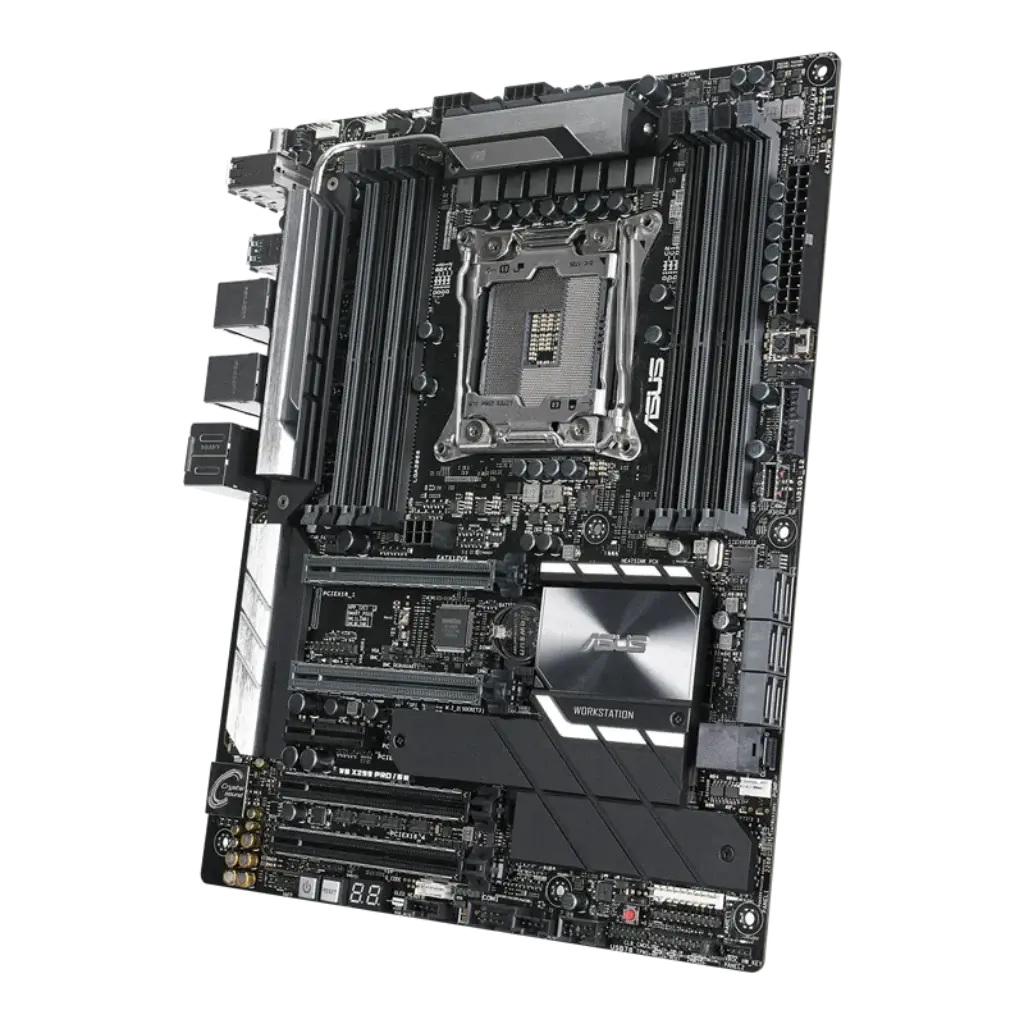

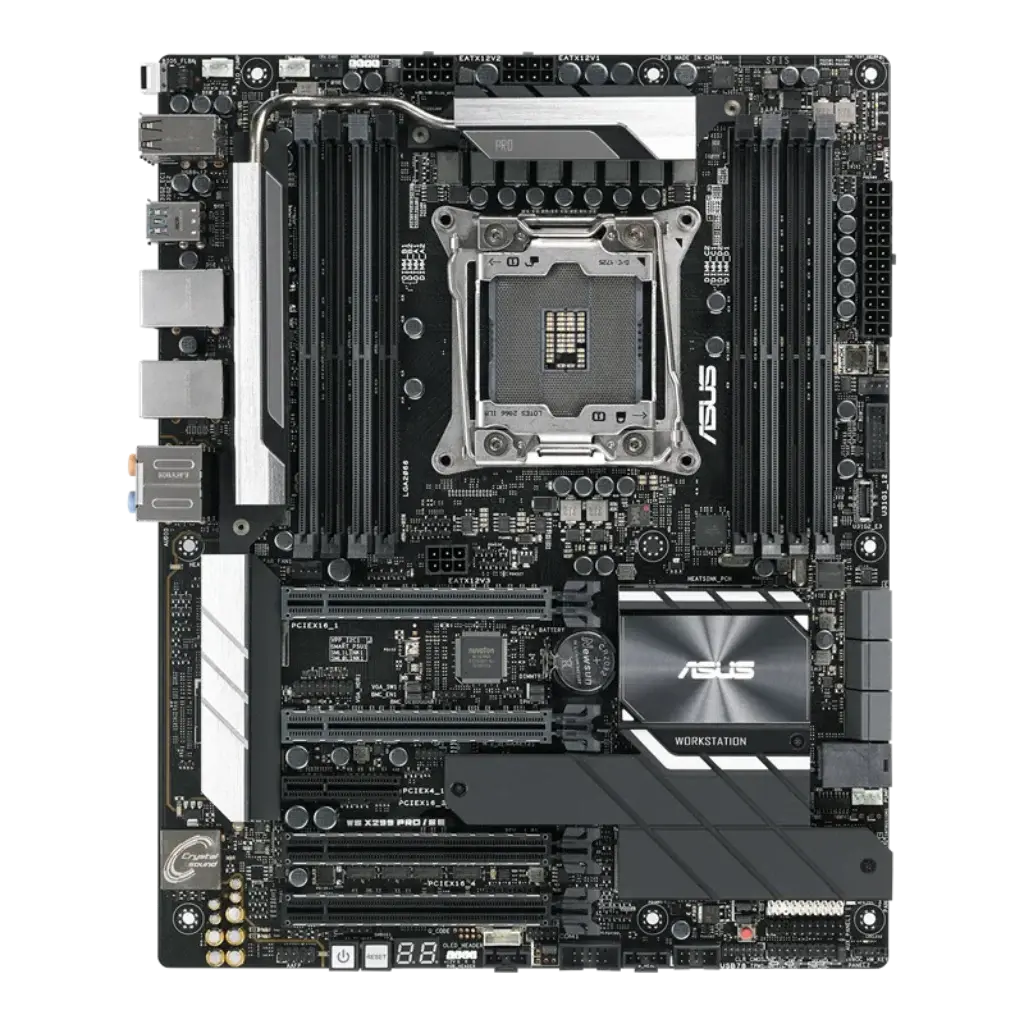

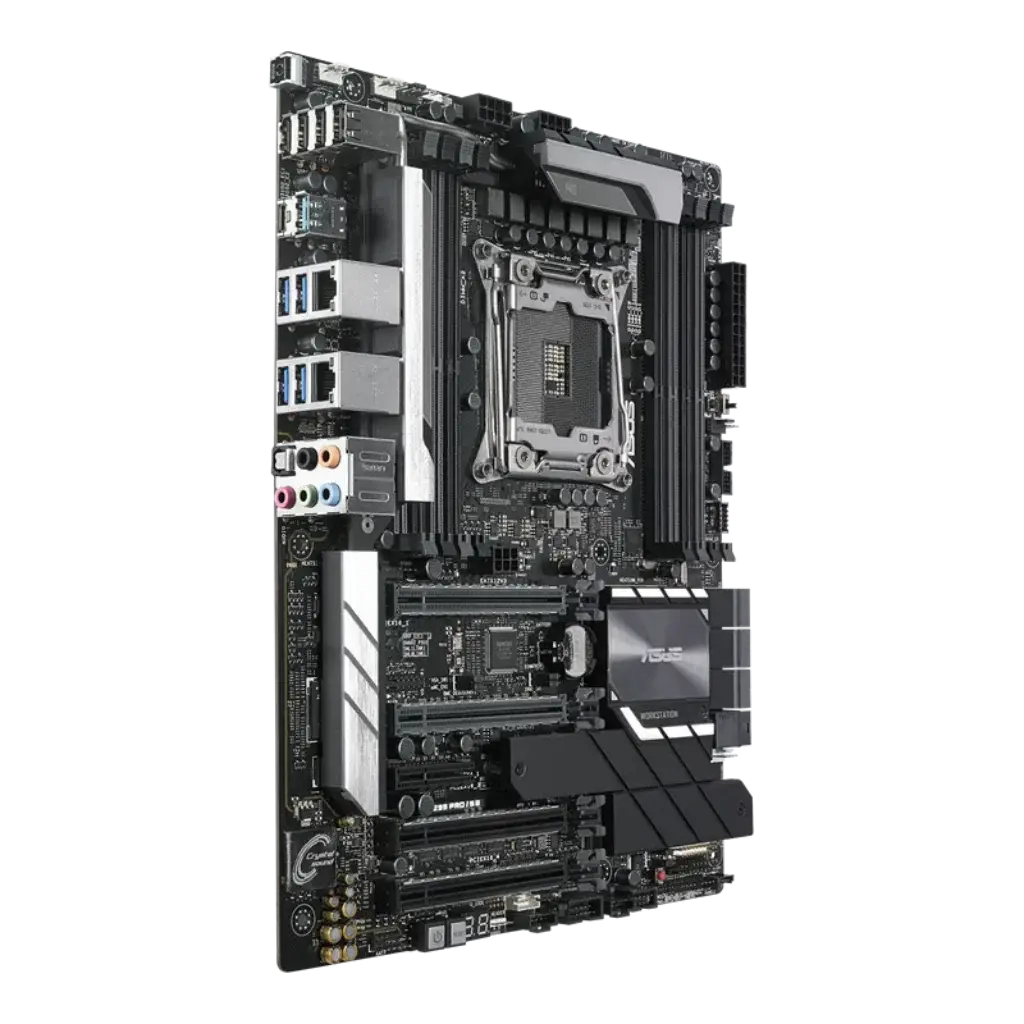

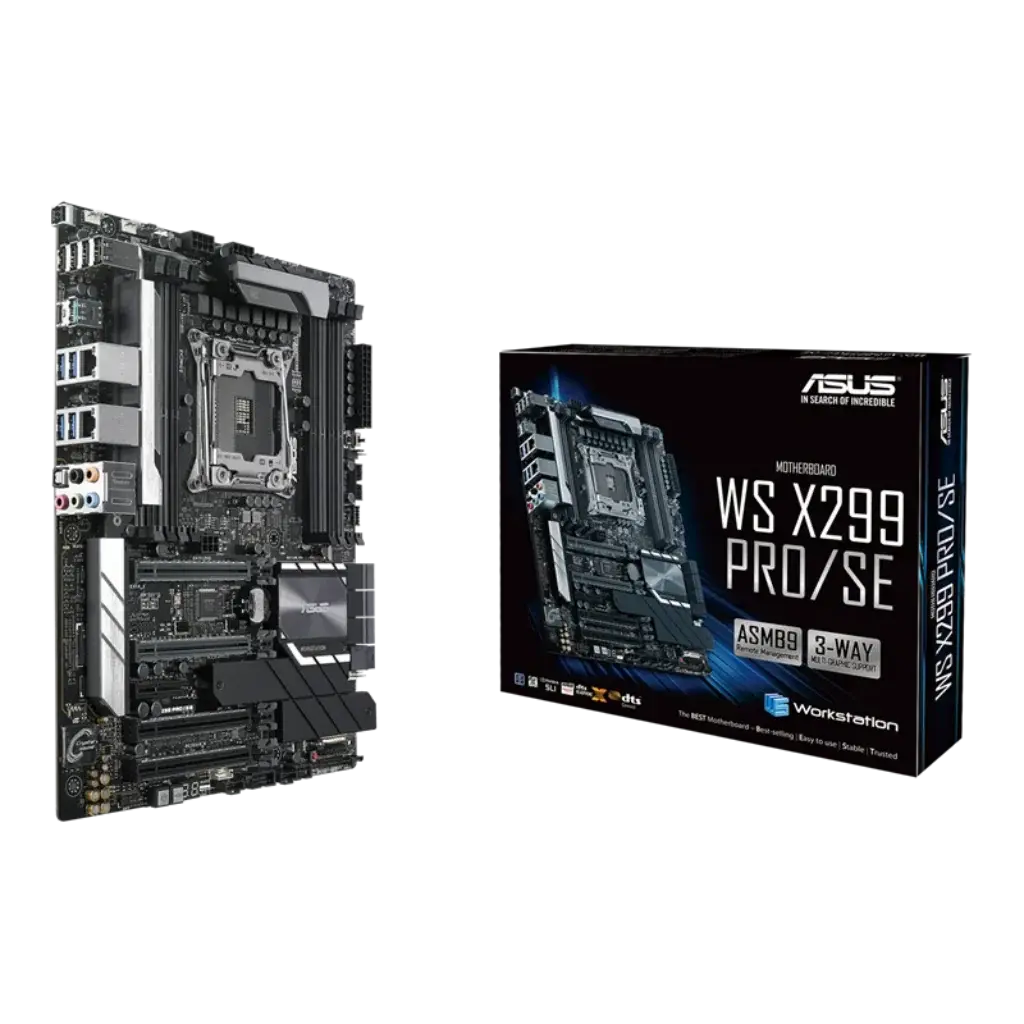

ASUS WSX299-PRO-SE Intel LGA 2066 Socket DDR4 ATX Motherboard
ASUS WSX299-PRO-SE Intel LGA 2066 Socket DDR4 ATX Motherboard
Regular price
Rs. 37,400.00
Regular price
Rs. 43,999.00
Sale price
Rs. 37,400.00
Quantity
Couldn't load pickup availability
ASUS Control Center: A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses.
ASMB9-iKVM (BMC) : supports remote BIOS updates, fans control, standalone KVM, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics through remote console (Web GUI & CLI)
Ultra-efficient VRM heatsink: Metal fin array connected to large surface area via a heatpipe tames X299 thermals to enable unthrottled performance.
Next-gen transfer speeds: Up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Type-A and Type-C connections.
| Product Type | Motherboard - ATX |
| Chipset Type | Intel X299 Express |
| Processor Socket | LGA2066 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Core X |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2666 MHz, 3600 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Intel Extreme Memory Profiles (XMP) |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALCS1220A |
| Compliant Standards | DTS Connect, High Definition Audio, DTS Headphone:X |
| Network Controller | Intel I210-AT |
| Network Interfaces | 2 x Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x8 mode) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x4 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x U.2 ¦ PCIe 3.0 -connectors: 1 x M.2 |
| RAID Features | Intel Rapid Storage Technology |

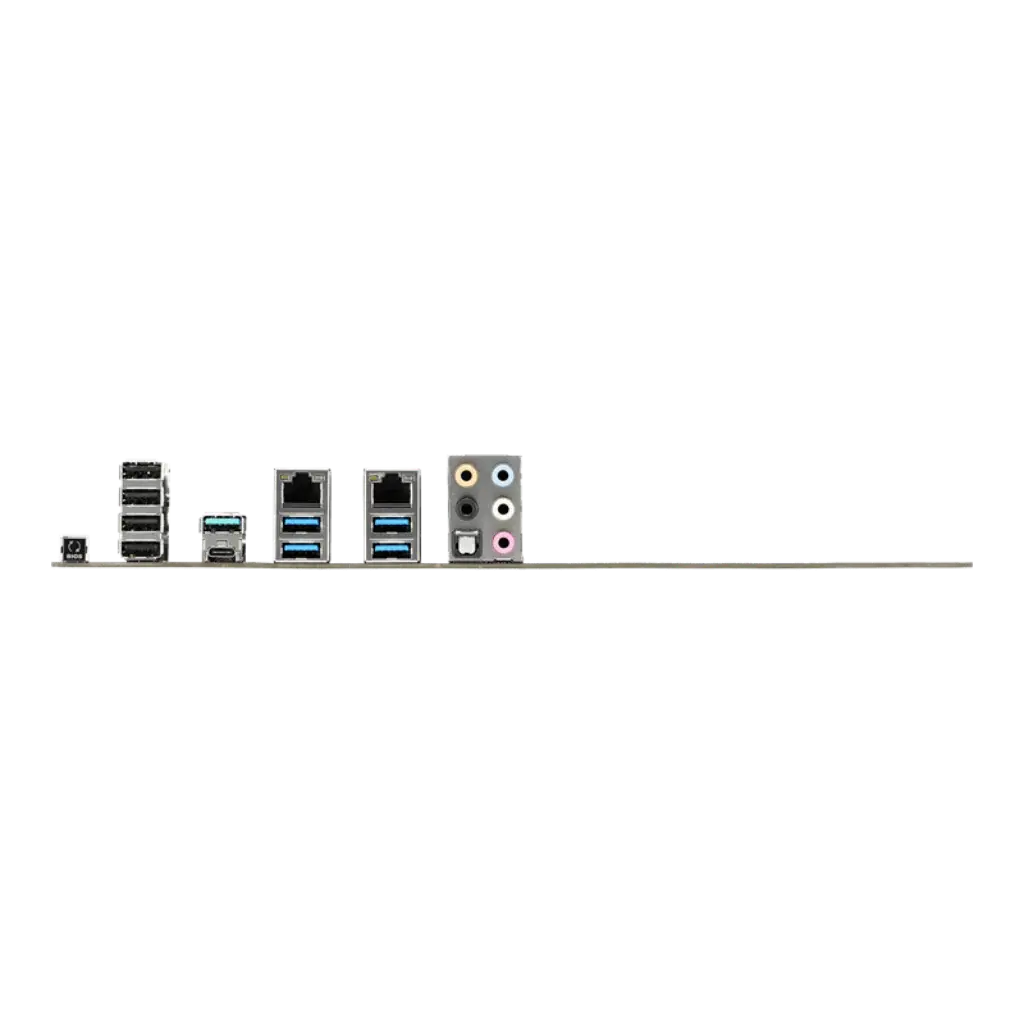

| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x TOSLINK ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x VGA - header ¦ 1 x serial - header ¦ 1 x Thunderbolt - header ¦ 1 x USB 3.1 Gen 2 - header |
| Power Connectors | 24-pin main power connector, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors |
| BIOS Features | ASUS Quiet Thermal Solution, USB BIOS Flashback |
| Hardware Features | Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, Q-LED, Q-Slot, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, NVIDIA 3-way SLI Technology Support, Intel Smart Response Technology, ASUS 8 Phase CPU Power Design, Q-Code, AMD 3-way CrossFireX technology support, ASUS 2 Phase DRAM Power Design, ASUS 5X PROTECTION, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, Turbo LAN, ASUS Crystal Sound 3, AURA RGB Lighting Control, Intel Optane Memory Ready, Intel VROC support, ASUS PRO Clock II Technology, M.2 heatsink, ASMB9-iKVM |
| Software Included | ASUS AI Charger+, ASUS Control Center |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Service & Support | Limited warranty - 3 years |
