ASUS TUF GAMING B760M-PLUS WIFI II DDR5 Intel B760 LGA 1700 Micro-ATX Motherboard

ASUS TUF GAMING B760M-PLUS WIFI II DDR5 Intel B760 LGA 1700 Micro-ATX Motherboard

Rs. 17,425.00
Rs. 20,499.00 Rs. 17,425.00
Sale Sold out
  • The ASUS TUF Gaming B760M-PLUS WIFI Micro-ATX motherboard is designed to support latest Intel Socket LGA 1700 for 13th Gen and 12th Gen Intel Core processors, Pentium Gold and Celeron Processors.

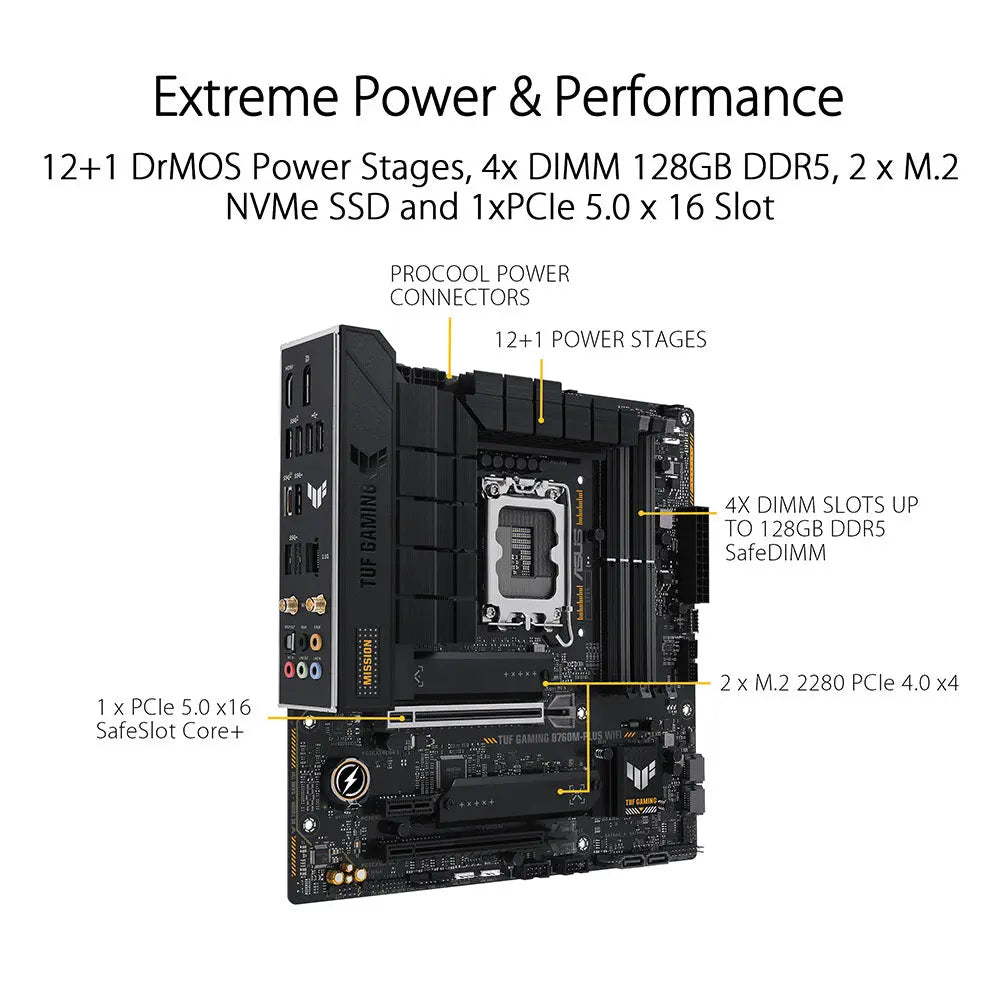

  • The ASUS B760-PLUS motherboard is PCIe 5.0 Ready supporting up to 128GB DDR5 7200+MHz (OC) of memory and Intel Turbo Boost Technology. The DDR5 ASUS motherboard support next gen PCIe 5.0 M.2 slots making it future proof.
  • Enjoy extended connectivity with the next-gen technology of PCIe 5.0, WIFI 6, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C and 2x M.2 slots.

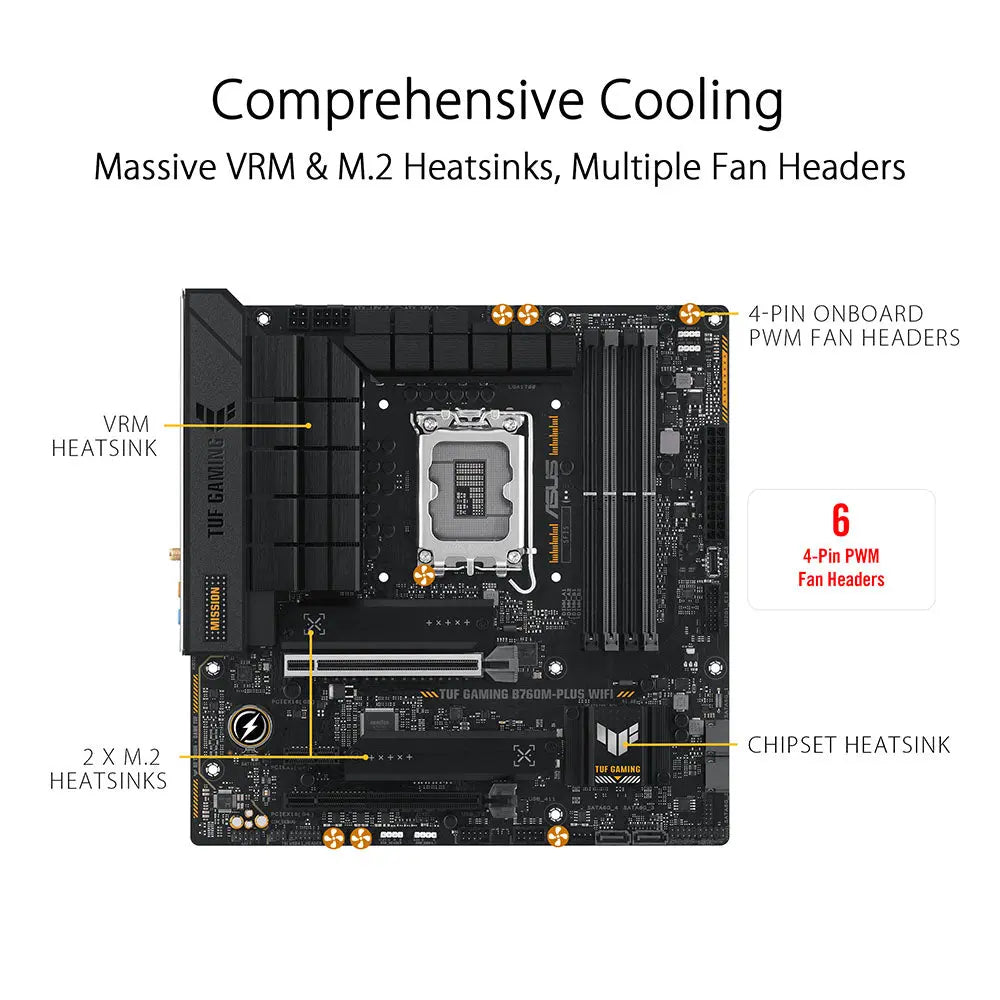

  • Features the most comprehensive cooling options ever that are configurable via AI Cooling II or the UEFI BIOS. It employs VRM heatsink, M.2 heatsink, PCH heatsink and hybrid fan headers.
  • The ATX motherboard comes with DIY Friendly features. The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. It is also having a handful features like ESD Guards and LANGuard.

~section~

Model ASUS TUF Gaming B760M-PLUS WIFI II Motherboard
Part Number 90MB1ET0-M0IAY0
CPU Socket Intel B760 Chipset
CPU Support Intel 13th Gen and 12th Gen Intel Core, Pentium Gold and Celeron Processors
Chipset Intel Socket LGA 1700
Memory 4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/
6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
On-Board Graphics support 1 x DisplayPort 1.4
1 x HDMI port 2.1
Expansion Slot Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slots
Wireless & Bluetooth Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Bluetooth v5.2
Ethernet 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s port
Audio Realtek 7.1 Surround Sound High-Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio Cover
USB Ports Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

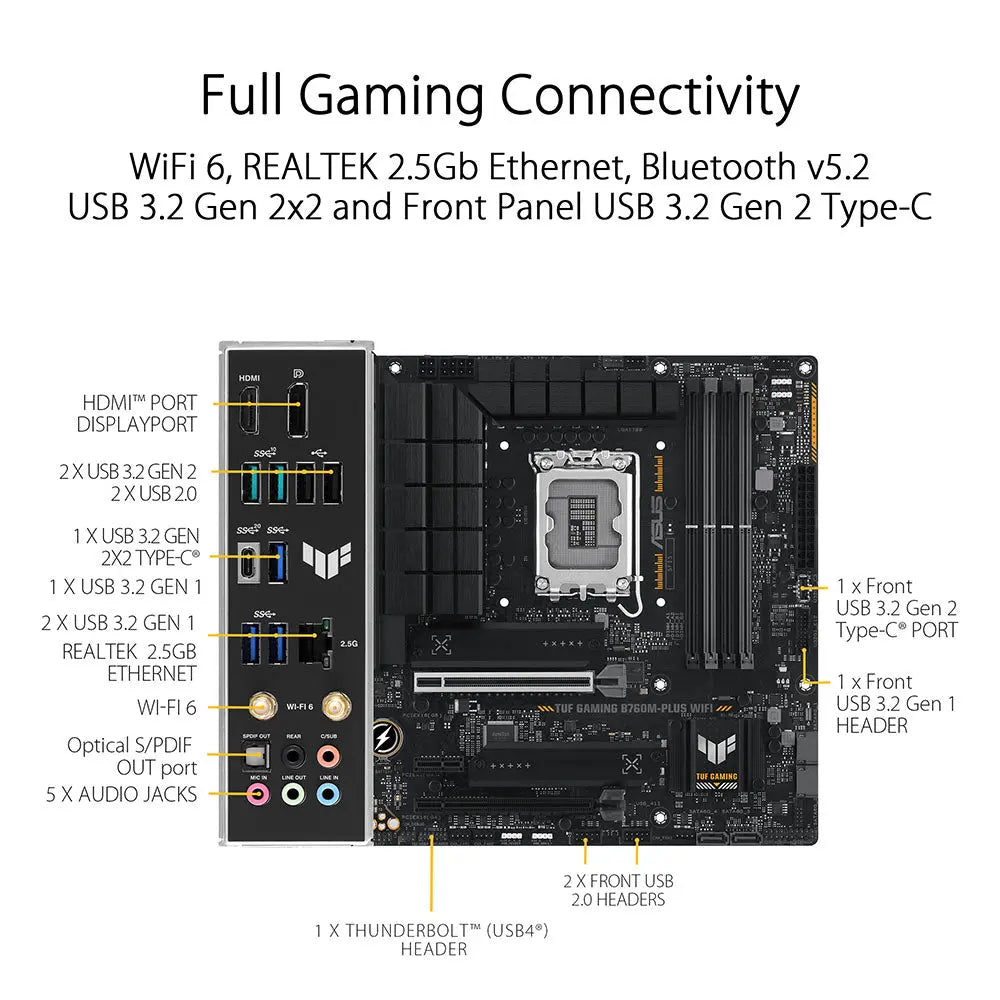

Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
3 x USB 3.2 Gen 1 port (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connectors
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous

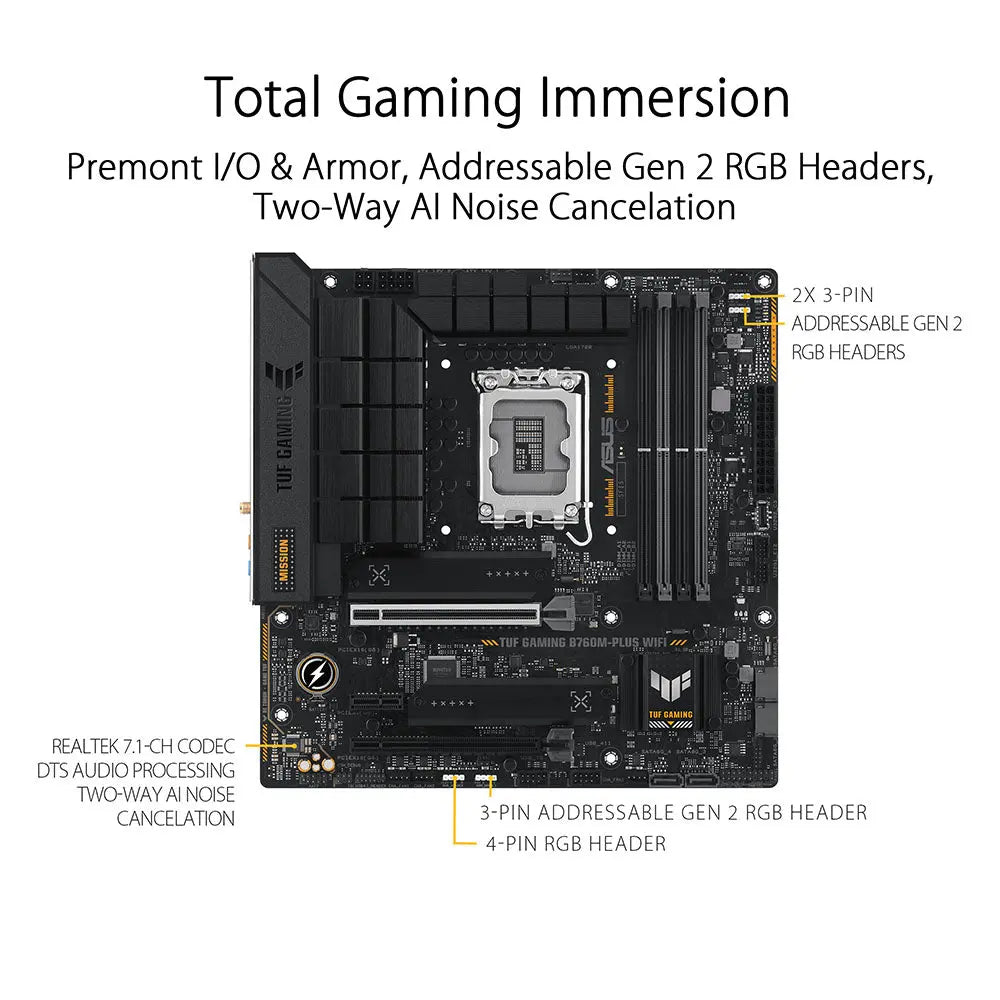

3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header

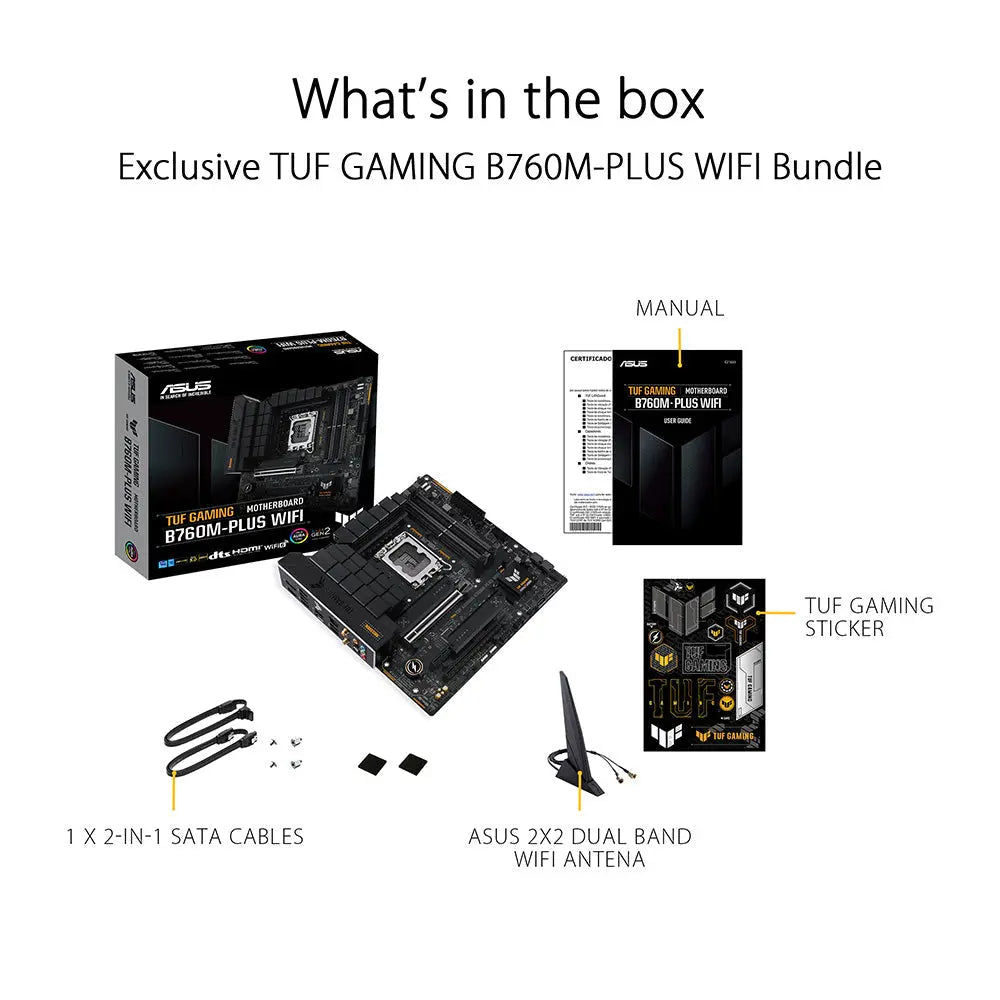

Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x TUF GAMING sticker
1 x M.2 Rubber Packages
1 x Screw package for M.2 SSD
Documentation1 x TUF certification card
1 x User guide
Operating System Windows 11 64-bit
Windows 10 64-bit
Dimensions 24.4 cm x 24.4 cm
Micro-ATX Form Factor
Warranty 3 Years of Brand Warranty
