Asus Prime H510M E R2.0 DDR4 Motherboard For Intel 10th | 11th Gen

Asus Prime H510M E R2.0 DDR4 Motherboard For Intel 10th | 11th Gen

Rs. 5,737.50
Rs. 0.00 Rs. 5,737.50
Sale Sold out

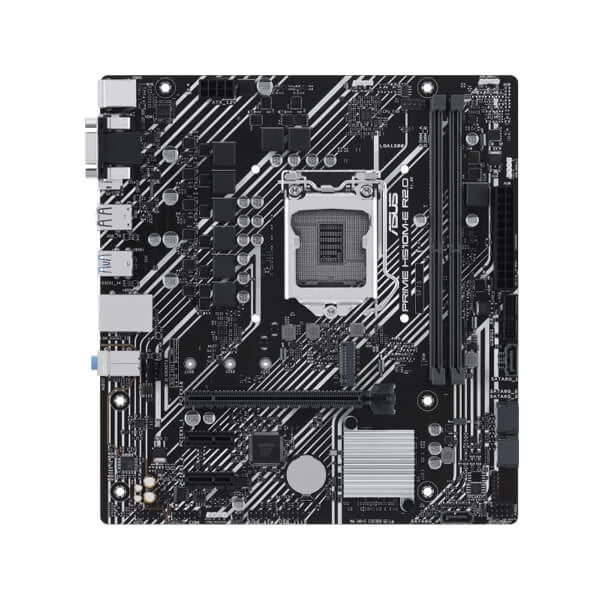

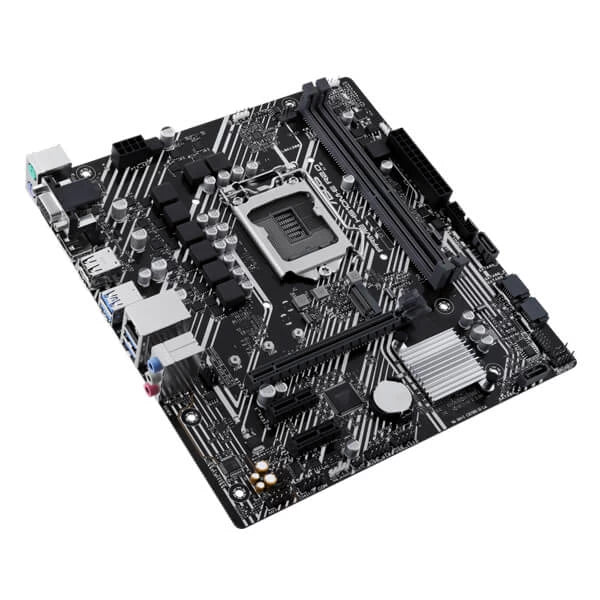

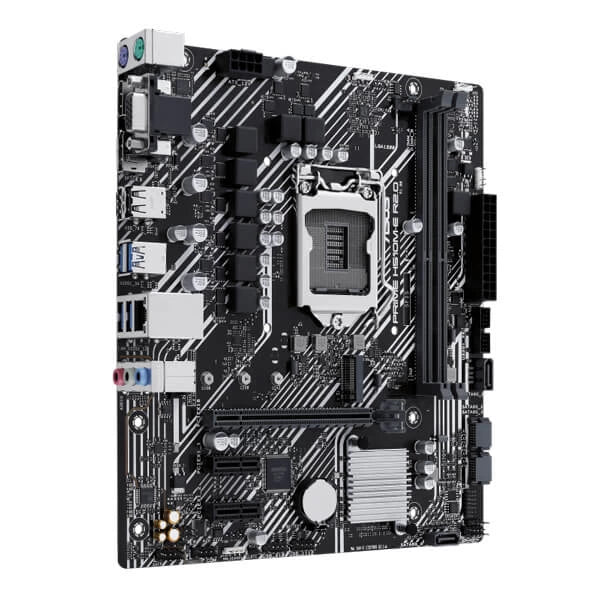

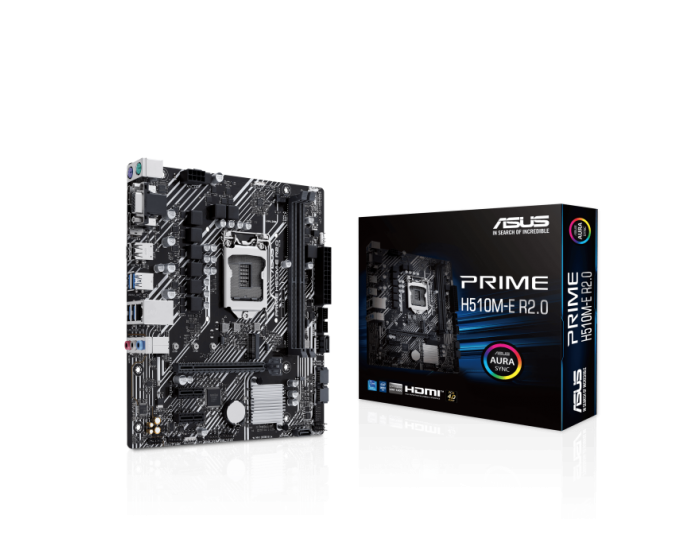

Asus Prime H510M E R2.0 DDR4 Motherboard For Intel 10th | 11th Gen

  • Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Processors
  • Comprehensive cooling: PCH heatsink and Fan Xpert
  • Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1Gb Ethernet and USB 3.2 Gen 1
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware
  • 5X Protection III: Multiple hardware safeguards for all-round protection
Specification Details
Model PRIME H510M-E R2.0
CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
*Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® H470 Chipset
Memory 2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Supported configurations vary depending on CPU type. Visit ASUS Support for details.
Graphics 1 x DisplayPort 1.4**
1 x VGA
1 x HDMI™ 2.1***
** DisplayPort and HDMI specifications vary based on CPU type.
Expansion Slots 1 x PCIe 4.0/3.0 x16 slot (based on CPU generation)
2 x PCIe 3.0 x1 slots
Storage 1 x M.2 slot (PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Ethernet 1 x Realtek 1Gb Ethernet
USB Rear USB: 4 x USB 3.2 Gen 1, 2 x USB 2.0
Front USB: 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
* A chassis with an HD audio module is required for 7.1 surround sound.
Back Panel I/O Ports 4 x USB 3.2 Gen 1, 2 x USB 2.0
1 x DisplayPort, 1 x VGA, 1 x HDMI™, 1 x Realtek 1Gb Ethernet
3 x Audio jacks, 1 x PS/2 Keyboard port, 1 x PS/2 Mouse port
Internal I/O Connectors 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header
1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector
1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
Additional connectors include AURA RGB headers, TPM header, and more.
Special Features ASUS 5X PROTECTION III, Q-Design, Thermal Solution
AURA Sync RGB and Addressable Gen 2 RGB headers
Software Features ASUS Exclusive Software: Armoury Crate, AI Suite 3, Fan Xpert, and more.
Norton 360 Deluxe (60 Days Free Trial), WinRAR
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Accessories 2 x SATA cables, 1 x I/O Shield, 1 x M.2 SSD screw package, User guide
Operating System Windows® 10 64-bit
Form Factor mATX (8.9 x 8.3 inches / 22.6 x 21.1 cm)





Specification Details
Model PRIME H510M-E R2.0
CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
*Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® H470 Chipset
Memory 2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Supported configurations vary depending on CPU type. Visit ASUS Support for details.
Graphics 1 x DisplayPort 1.4**
1 x VGA
1 x HDMI™ 2.1***
** DisplayPort and HDMI specifications vary based on CPU type.
Expansion Slots 1 x PCIe 4.0/3.0 x16 slot (based on CPU generation)
2 x PCIe 3.0 x1 slots
Storage 1 x M.2 slot (PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Ethernet 1 x Realtek 1Gb Ethernet
USB Rear USB: 4 x USB 3.2 Gen 1, 2 x USB 2.0
Front USB: 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
* A chassis with an HD audio module is required for 7.1 surround sound.
Back Panel I/O Ports 4 x USB 3.2 Gen 1, 2 x USB 2.0
1 x DisplayPort, 1 x VGA, 1 x HDMI™, 1 x Realtek 1Gb Ethernet
3 x Audio jacks, 1 x PS/2 Keyboard port, 1 x PS/2 Mouse port
Internal I/O Connectors 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header
1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector
1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
Additional connectors include AURA RGB headers, TPM header, and more.
Special Features ASUS 5X PROTECTION III, Q-Design, Thermal Solution
AURA Sync RGB and Addressable Gen 2 RGB headers
Software Features ASUS Exclusive Software: Armoury Crate, AI Suite 3, Fan Xpert, and more.
Norton 360 Deluxe (60 Days Free Trial), WinRAR
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Accessories 2 x SATA cables, 1 x I/O Shield, 1 x M.2 SSD screw package, User guide
Operating System Windows® 10 64-bit
Form Factor mATX (8.9 x 8.3 inches / 22.6 x 21.1 cm)
